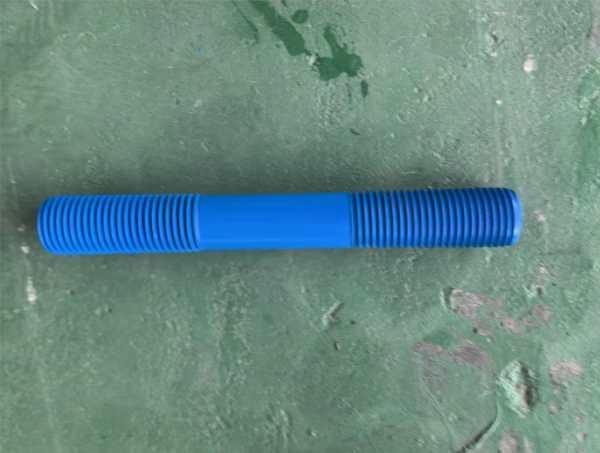

1 1/8-8 X 9 A193 B7 STUD BOLT, TEFLON

Category: Bolts and Nuts Tag: Bolts and Nuts

Description
Reviews (0)

1 1/8-8 X 9 A193 B7 STUD BOLT, TEFLON

ASTM A193	Covers alloy and stainless steel bolting materials and bolting components for pressure vessels, valves, flanges, and fittings for high temperature or high pressure service, or other special purpose applications.
ASME B18.31.2	Covers the complete dimensional and general data for continuous thread, flange studs (stud bolts), and double-end inch-dimensioned studs.
ASME B1.1 UNC & UNF Class 2A	Specifies the thread form, series, class, allowance, tolerance, and designation for unified screw threads.

ASTM A193	Size	Min Tensile Strength (KSI)	Min Yield Strength (KSI)	Min Elongation (%)	RA % min	Max HBW	Max HRC
ASTM A193 grade B7	Up to 2-1/2	125	105	16	50	321	35
	2-5/8 – 4	115	95	16	50
	4-1/8 – 7	100	75	18	50
ASTM A193 grade B8 Class 1	All	75	30	30	50	223	35
ASTM A193 grade B8M Class 1	All	75	30	30	50	223	96
ASTM A193 grade B8 Class 2	Up to 3/4	125	100	12	35	321	35
	7/8 – 1	115	80	15	35
	1-1/8 – 1-1/4	105	65	20	35
	1-3/8 – 1-1/2	100	50	28	45
ASTM A193 grade B8M Class 2	Up to 3/4	110	95	15	45	321	35
	7/8 – 1	100	80	20	45
	1-1/8 – 1-1/4	95	65	25	45
	1-3/8 – 1-1/2	90	50	30	45
