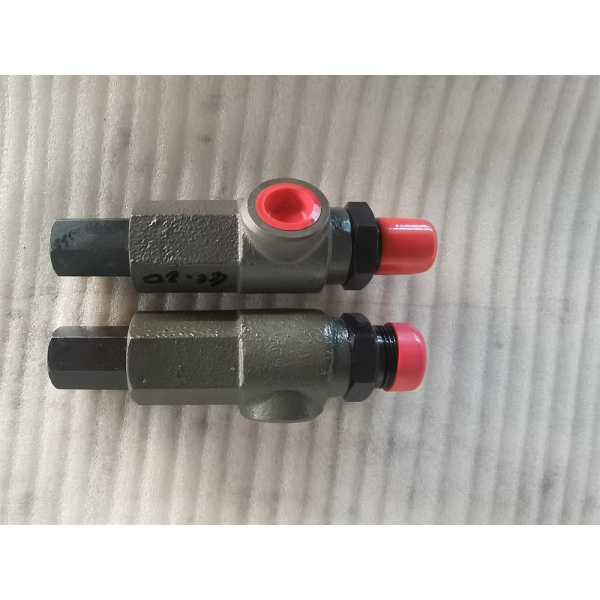

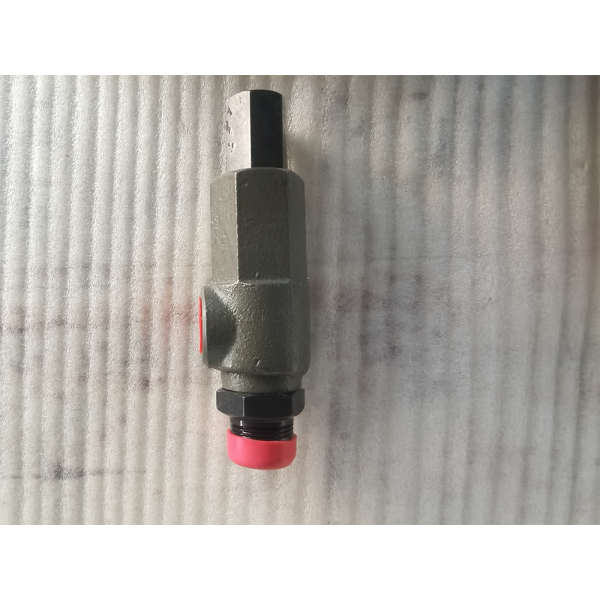

1″, 3/4″ overflow valve

Safety valve relief valve whose name called overflow valve is the key of the pressure vessel, pressure vessel security application of hydraulic accumulator manufacturer, to prolong the service life of the normal work of the safety valve and relief valve, check whether the regular operation of the safety valve in use process is leaking, jam, spring rust on anomalies, and must observe the adjusting screw and adjustment of the wheel fastening screw lock nut is loose.When problems are identified, take appropriate conservative measures.

In addition, regularly remove the safety valve for a thorough cleaning, hydraulic accumulator manufacturers for inspection and regrinding, can be used after setting.Set in the outdoor safety valve, take appropriate protective measures to prevent rain, fog, dust, rust and other dirt intrusion into the safety valve or discharge pipe, in the environment below 0 degrees Celsius, in order to ensure the reliability of the safety valve action, must take necessary freezing prevention measures

First-class quality, sincere service “zhejiang jiangshi hometown xikou town, welcome friends from all walks of life to visit pneumatic accumulator manufacturers hydraulic accumulator price, to negotiate business!

1”、1/2”溢流阀Relief Valve(Y40-15 Y30-25)
In repair kit维修包 (Item)序号 图号(Part No.) 名称(Description) 数量Qty
1 YLF-00-01 密封螺母Sealing nut 1
2 YLF-00-02 调压螺丝 Pressure Adjusting Screw 1
3 YLF-00-03 锁母Locknut 1
4 YLF-00-07 阀体 Valve Body 1
5 YLF-00-04 弹簧座Spring Seat 2
6 YLF-00-05
YLF-00-12A
弹簧Spring 1
7 YLF-00-06 阀杆 Valve Stem 1
8 YLF-00-08 球座Bail seat 1
9 YLF-00-09 扶正圈Guide Ring 1
10 YLF-00-10 接头Adapter 1
11 GB 1235-76 34X3.1 O形密封圈O-Ring 1
12 GB/T 308-2002 11 钢球Bail 1
13 GB65-76 螺钉 Screw 1
14 GB 1235-76 24X2.4 O形密封圈O-Ring 1
