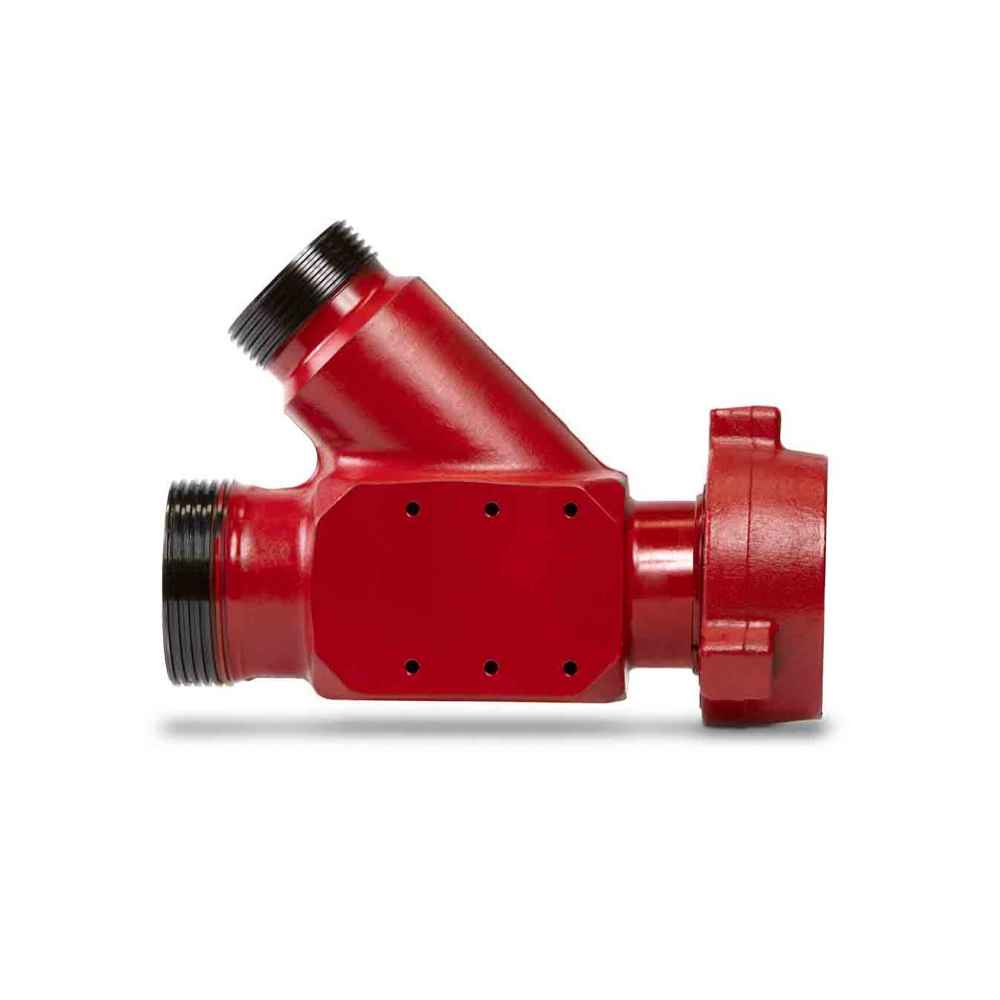

All petro manufactures and sells 3 inch and 4 inch 1502 and 4 inch 1002 lateral Integral Fittings.
Our laterals are frequently used in fracturing manifolds and other high pressure manifolds. Each lateral is machined from China forged, heat treated steel.

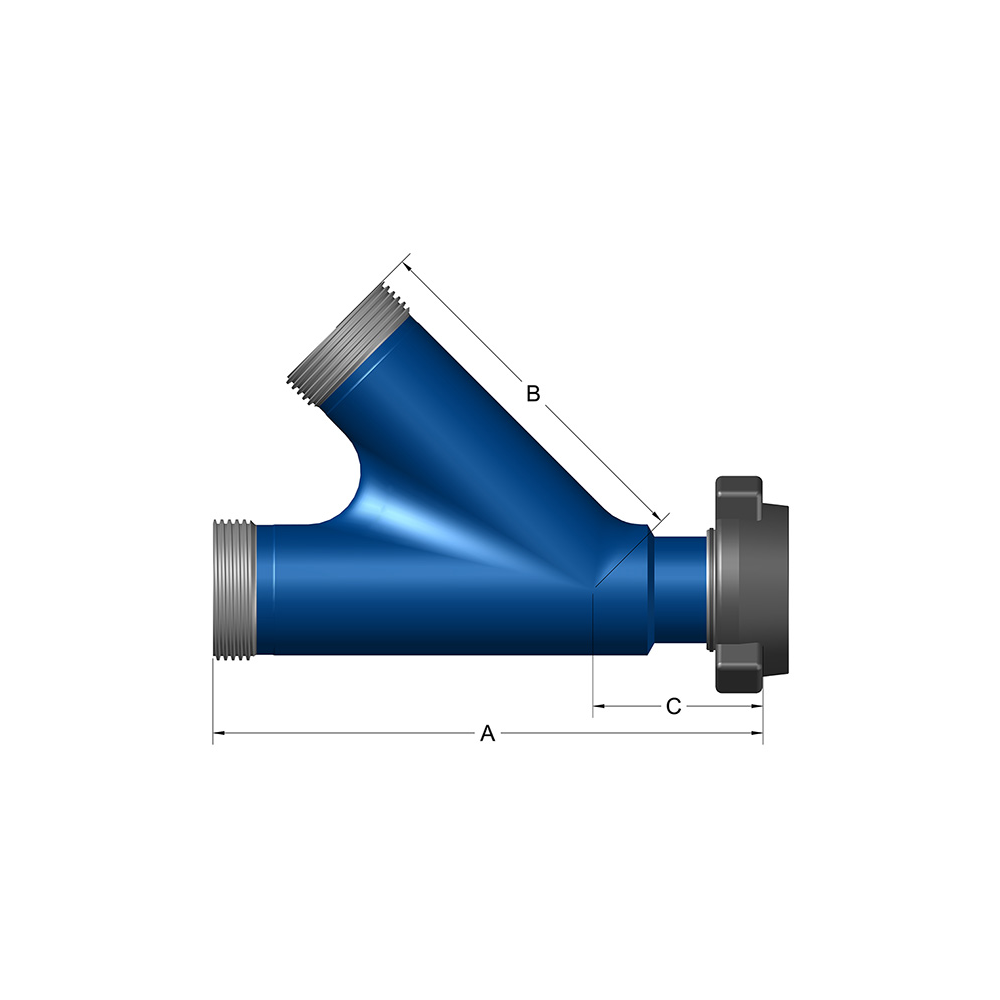

Connections (Run x Run x Branch) | M.A.W.P. | A | B | C | D | E | F |
---|---|---|---|---|---|---|---|
4” 1002 (F) x 4” 1002 (M) x 3” 1502 (F) | 15,000 PSIG | 19.59” | 13.89” | 2.50” | 5.00” | 7.00” TYP | 7.50” |
4” 1502 (F) x 4” 1502 (M) x 3” 1502 (F) | 15,000 PSIG | 20.88” | 13.89” | 2.50” | 5.00” | 7.00” TYP | 7.50” |
3” 1502 (F) x 4” 1502 (M) x 3” 1502 (F) | 15,000 PSIG | 20.88” | 13.89” | 2.50” | 5.00” | 7.00” TYP | 7.50” |
