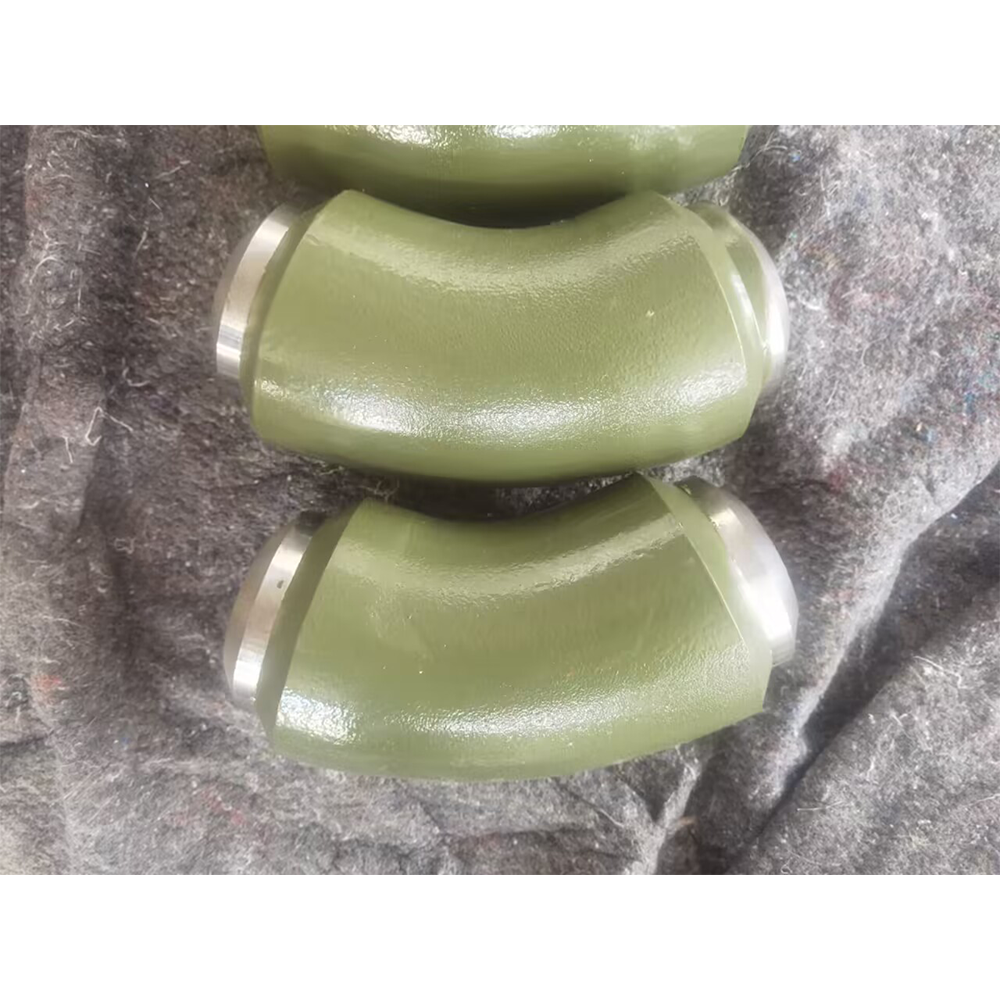

All-petro offer a full range of long sweep elbows from 2″ to 7″, available with standard pressure ratings of 5,000 psi, 10,000 psi, 15,000psi and 20,000psi. All-petro standard specification for our 4130 long sweep elbows is as follows:
Service Class: Standard or Sour Service
Material: AISI 4130
Weld Ends: ANSI B16.25
BW Tolerance: ANSI B16.9
Material Yield Strength: 85,000 PSI minimum
Material Tensile Strength: 105,000 PSI minimum
Operating temperature: -46 to + 180°C (API temperature class L to X)

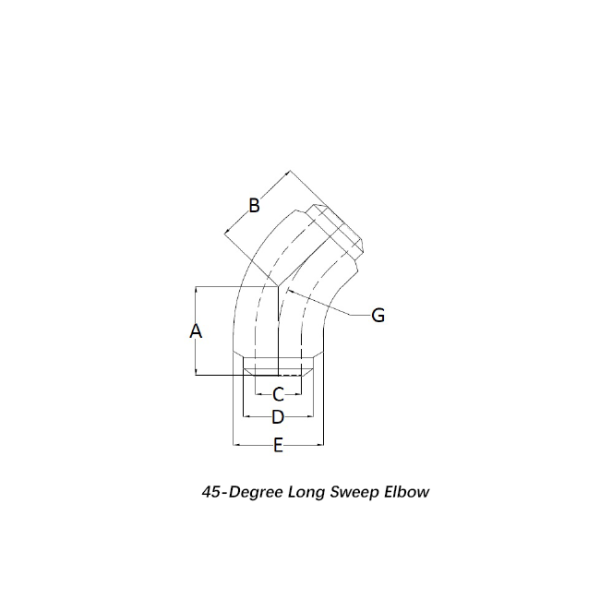

| NB | A | B | C | D | E | WEIGHT (KG) |
|---|---|---|---|---|---|---|
| 2” XXS | 4.76 | 4.76 | 1.50 | 2.37 | 3.50 | 10 |
| 3” XXS | 6.73 | 6.73 | 2.30 | 3.50 | 4.33 | 20 |
| 4” XXS | 6.97 | 6.97 | 3.15 | 4.50 | 5.50 | 28 |
| 5” XXS | 8.22 | 8.22 | 4.06 | 5.56 | 6.60 | 45 |
| 6” XXS | 10.43 | 10.43 | 4.90 | 6.63 | 8.25 | 94 |
| 5.5” OD x 3.0” ID | 8.22 | 8.22 | 3.06 | 5.50 | 6.60 | 50 |
| 6.75 OD x 5.00” ID | 10.43 | 10.43 | 5.00 | 6.75 | 8.25 | 94 |
