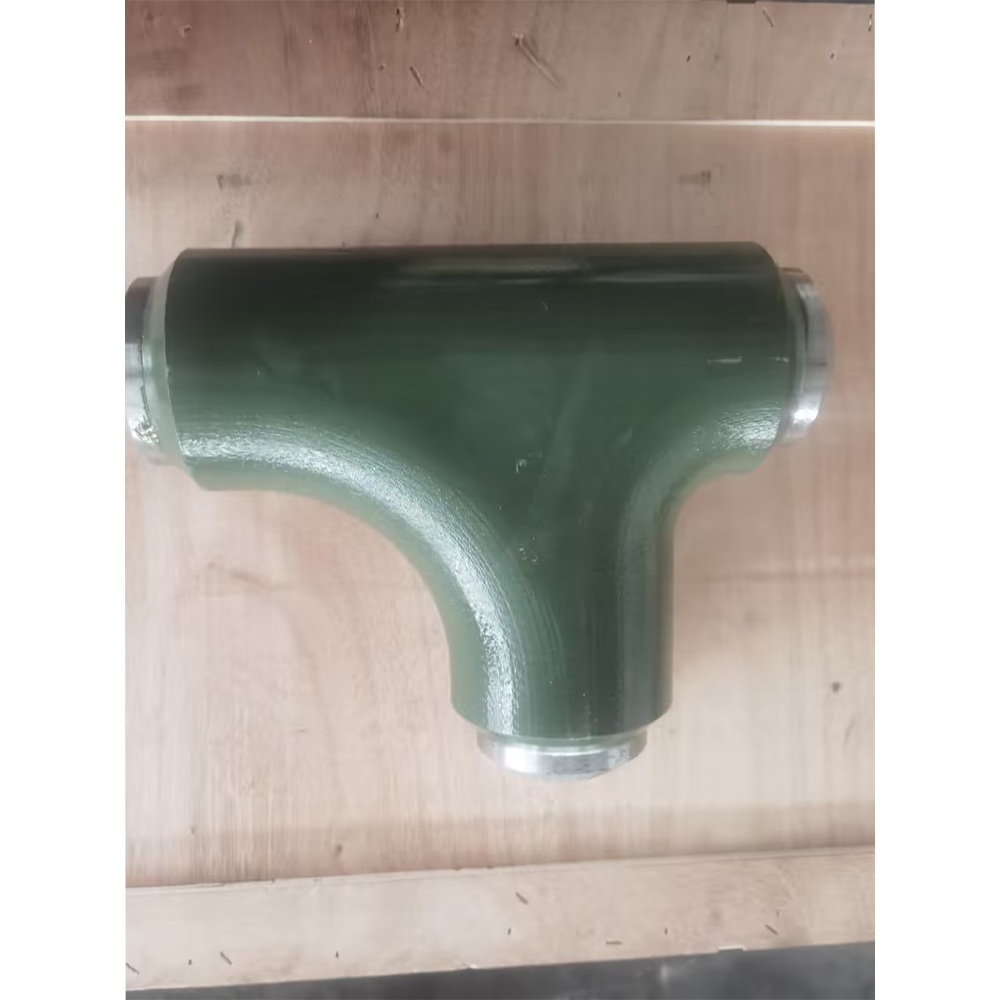

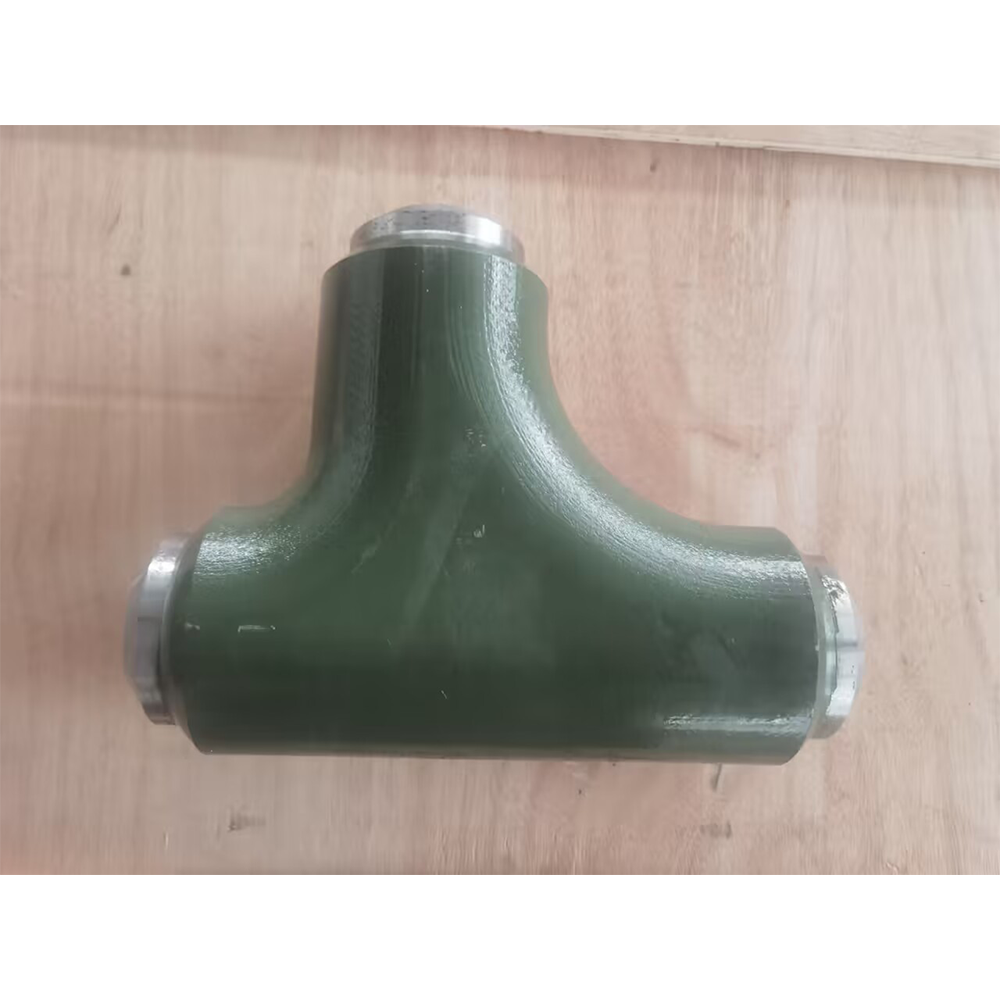

4130 Long Sweep Tees

All-petro offer a full range of long sweep elbows from 2″ to 7″, available with standard pressure ratings of 5,000 psi, 10,000 psi, 15,000psi and 20,000psi.

All-petro offer a full range of long sweep tees from 2″ to 7″, available with standard pressure ratings of 5,000 psi, 10,000 psi, 15,000psi and 20,000psi. All-petro standard specification for our 4130 long sweep tees is as follows:

Service Class: Standard or Sour Service
Material: AISI 4130
Weld Ends: ANSI B16.25
BW Tolerance: ANSI B16.9
Material Yield Strength: 85,000 PSI minimum
Material Tensile Strength: 105,000 PSI minimum
Operating temperature: -46 to + 180°C (API temperature class L to X)

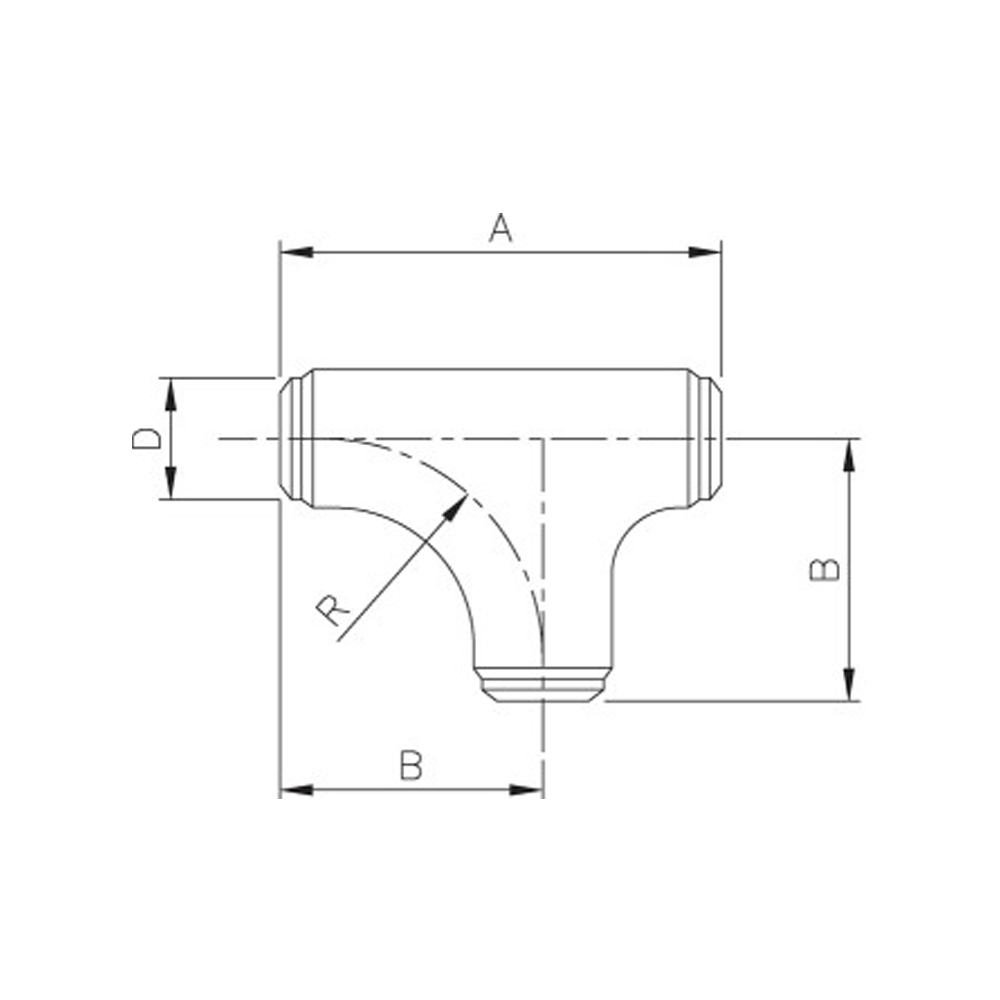

Size D A B R Weight (kgs)
2″ NB SCH XXS 60.3 330 203 150 34
3″ NB SCH XXS 88.9 330 203 150 28
4″ NB SCH XXS 114.3 406 280 210 51
5″ NB SCH XXS 141.3 483 305 240 76
6″ NB SCH XXS 168.3 686 381 305 132
5.5″ OD 139.7 483 305 240 81
6.75″ OD 171.45 686 381 305 137
