BOP Control Systems

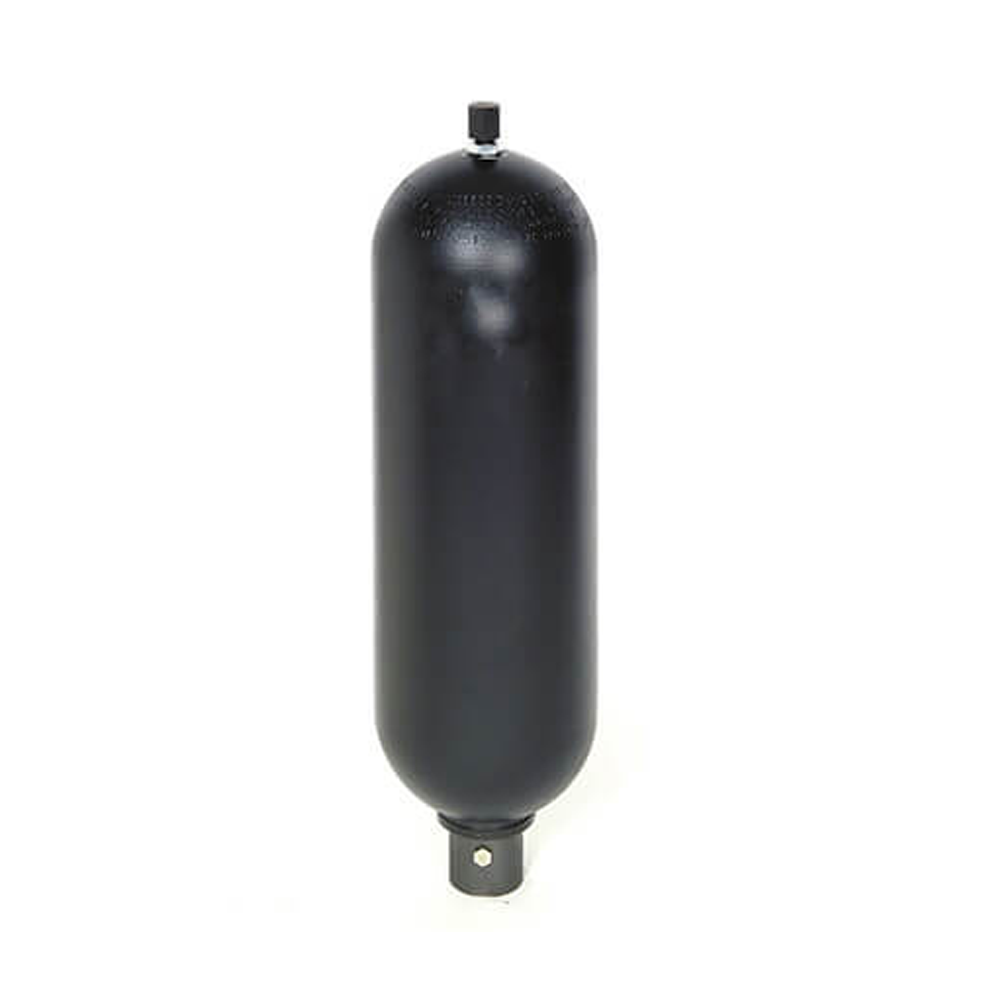

8 ½,10&11 GALLON SIZE BLADDER TYPE ACCUMULATORS

ALL PETRO offers Bladder Accumulators, Transfer Barrier Accumulators that provide fluid separation where two different media must transfer pressure between each other without mixing. Also used as an accumulator in series with gas bottles where size constraints exist. Sizes range from 2-1/2 to 15 gallons.

Category: BOP Control Systems Tag: ACCUMULATORS

Description
Reviews (0)

ALL PETRO offers Bladder Accumulators, Transfer Barrier Accumulators that provide fluid separation where two different media must transfer pressure between each other without mixing. Also used as an accumulator in series with gas bottles where size constraints exist. Sizes range from 2-1/2 to 15 gallons.

8 ½,10&11 GALLON SIZE BLADDER TYPE ACCUMULATORS
DESCRIPTION	8 1/2 GALLON	UNIVERSAL		STANDARD
DESCRIPTION	8 1/2 GALLON	10 GALLON	11 GALLON	10 GALLON	11 GALLON
Accumulator assembly	1006-6100	1006-7100	1006-9100	1000-7100	1000-9100
Port assembly	1000-4195	1000-4195	1000-4195	1000-4195	1000-4195
2 Plug &Poppet assembly	1000-4196	1000-4196	1000-4196	1000-4196	1000-4196
Port Size (In.)	2	2	2	2	2
Dimension A(in.)	50 3/4	54	60 3/4	54	60 3/4
Dimension B(in.)	45	48 1/4	54 1/8	48 1/4	54 1/8
Dimension C(in)	8 7/8	8 7/8	8 7/8	8 7/8	8 7/8

Item	DESCRIPTION	8 1/2 GALLON	UNIVERSAL		STANDARD		QTY
	Accumulator Assembly	1006-5100	10 GALLON	11 GALLON	10 GALLON	11 GALLON
	Accumulator Assembly	1006-5100	1006-7100	1006-9100	1000-7100	1000-9100
1	Valve Guard	1000-3101	1000-3101	1000-3101	1000-3101	1000-3101	1
2	Valve Nut	1000-3102	1000-3102	1000-3102	1000-3102	1000-3102	1
3	Shell	1006-6101	1000-7101	1000-9101	1000-7101	1000-9101	1
4	Bag Gas Valve Assy	1006-6102	1006-7101	1006-7101	1000-7102	1000-9102	1
5	Valve Cap	1000-0105	1000-0105	1000-0105	1000-0105	1000-0105	1
6	Valve Core	1000-0106	1000-0106	1000-0106	1000-0106	1000-0106	1
7	Poppet	1000-4103	1000-4103	1000-4103	1000-4103	1000-4103	1
8	Spring	1000-4104	1000-4104	1000-4104	1000-4104	1000-4104	1
9	Ring Anti-Extrusion	1000-4105	1000-4105	1000-4105	1000-4105	1000-4105	1
10	Washer	1000-4106	1000-4106	1000-4106	1000-4106	1000-4106	1
11	Spacer	1000-4107	1000-4107	1000-4107	1000-4107	1000-4107	1
12	Piston	1000-4108	1000-4108	1000-4108	1000-4108	1000-4108	1
13	Plug Assembly	1000-4109	1000-4109	1000-4109	1000-4109	1000-4109	1
14	Plug O-Ring	8717-2338	8717-2338	8717-2338	8717-2338	8717-2338	1
15	Lock Nut	1000-4110	1000-4110	1000-4110	1000-4110	1000-4110	1
16	Stop Nut	1000-4111	1000-4111	1000-4111	1000-4111	1000-4111	1
17	Pipe Plug	1000-2103	1000-2103	1000-2103	1000-2103	1000-2103	1
18	Valve		1006-7102	1006-9102			1

BLADDER TYPE ACCUMULATORS ASME CODED

BLADDER TYPE ACCUMULATORS ASME CODED
Item	DESCRIPTION	1 Plnt	1 Quart	1 Gallon	2 ½ Gallon	5 Gallon	15 Gallon	QTY
Item	Accumulator Assembly	1000-1100	1000-2100	1000-3100	1000-4100	1000-6100	1007-9100	QTY
1	Valve Guard	1000-0101	1000-0101	1000-3101	1000-3101	1000-3101	1007-9101	1
2	Valve Nut	1000-0102	1000-0102	1000-3102	1000-3102	1000-3102	1007-9109	1
3	Shell	1000-1101	1000-2101	1000-3103	1000-4101	1000-5101	1007-9102	1
4	Bag Gas Valve Assy	1000-1102	1000-2102	1000-3104	1000-4102	1000-5102	1007-9103	1
5	Valve Cap	1000-0105	1000-0105	1000-0105	1000-0105	1000-0105	N/A	1
6	Valve Core	1000-0106	1000-0106	1000-0106	1000-0106	1000-0106	N/A	1
7	Poppet	1000-1103	1000-1103	1000-3105	1000-4103	1000-4103	1000-4103	1
8	Spring	1000-1104	1000-1104	1000-3106	1000-4104	1000-4104	1000-4104	1
9	Ring Anti-Extrusion	1000-1105	1000-1105	1000-3107	1000-4105	1000-4105	1007-9104	1
10	Washer	1000-1106	1000-1106	1000-3108	1000-4106	1000-4106	1007-9105	1
11	Spacer	1000-1107	1000-1107	1000-3109	1000-4107	1000-4107	1007-9108	1
12	Piston	1000-1108	1000-1108	1000-3110	1000-4108	1000-4108	1000-4108	1
13	Plug Assembly	1000-1109	1000-1109	1000-3111	1000-4109	1000-4109	1000-4109	1
14	Plug O-Ring	8717-2222	8717-2222	8717-2230	8717-2338	8717-2338	1007-9106	1
15	Lock Nut	1000-1110	1000-1110	1000-3112	1000-4110	1000-4110	N/A	1
16	Stop Nut	1000-0115	1000-0115	1000-3113	1000-4111	1000-4111	1007-9110	1
17	Pipe Plug		1000-2103	1000-2103	1000-2103	1000-2103	1000-2103	1
	Dimension A(in.)	10	11 5/16	16 5/8	21 1/4	33 1/2	78 9/16
	Dimension B(in.)	6 1/2	7 1/2	11	15 1/2	27 3/4	72 5/8
	Dimension C(in.)	3 3/8	4 1/2	6 11/16	8 7/8	8 7/8	9 1/4
	Port size (in.)	3/4	3/4	1 1/4	2	2	2

CHARGING AND GAUGING ASSEMBLY PART NO. 0902-0100
Item	Part No.	DESCRIPTION	QTY
1	0902-0101	Air Chuck	1
2	0902-0102	Adapter	1
3	0902-0103	Gauge	1
4	0902-0104	Tank Valve	1
5	0902-0105	Swivel Connector	1
6	0902-0106	Hose	1
7	0902-0107	Coupler	1
8	0902-0108	Nut	1
9	0902-0109	Bleeder Valve	1
10	0902-0110	Gland	1
11	0902-0111	Hose End Fitting	1
12	0902-0112	Gauging Head Assembhy	1
ltem 12 consists of ltems 01.02.03,04 &09.

80 GALLON SPHERICAL TYPE“GR”ACCUMULATORS ASME CODED

80 GALLON SPHERICAL TYPE“GR”ACCUMULATORS ASME CODED
Item	Part No.	DESCRIPTION	QTY
1	1010-1101	Gauge	1
2	1010-1102	Charging Valve	1
3	1010-1103	Float Access,Plug	1
4	1010-1104	Back-up Ring	2
5	1010-1105	O-Ring	2
6	1010-1106	Float Retaine Housing	1
7	1010-1107	Float Rod Retainer	1
8	1010-1108	Spring Clip	4
9	1010-1109	Float	4
10	1010-1110	Float Rod	4
11	1010-1111	Retainer Clip	1
12	1010-1112	Guide Rod	1
13	1010-1113	Float Stop	2
14	1010-1114	Roll Pin	1
15	1010-1115	Valve Piston	1
16	1010-1116	Pipe Plug	1
17	1010-1117	Accumuiator Body	1
18	1010-1118	Spring	1
19	1010-1119	Valve Body	1
20	1010-1120	Pipe Reducer	1
21	1010-1121	Retainer Sleeve	1
22	1010-1122	Valve Seat	1
23	1010-1123	O-Ring	1
Dimensions:Diameter—36 3/4” Height—62 1/2” Dry Weight-1975 Lbs.

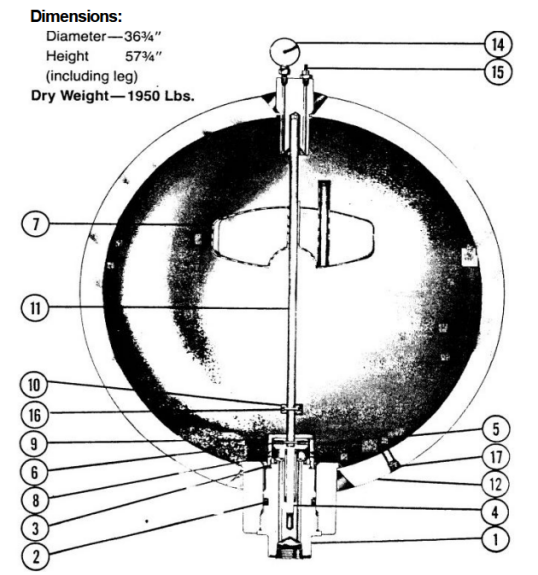

80 GALLON SPHERICAL TYPE“GR”ACCUMULATORS ASME CODED

80 GALLON SPHERICAL TYPE“GR”ACCUMULATORS ASME CODED
Item	Part No.	DESCRIPTION	QTY
1	1010-1119	Plug (Valve body)	1
2	1010-1105	O-Ring 4.I.D× ¼(.275)Section	1
3	1010-1123	O-Ring	1
4	1010-1118	Spring	1
5	1010-1115	Valve Piston	1
6	1010-1114	Roll Pin.¼×1¼ Long(Stainless Steel)	1
7	1010-1201	Float	1
8	1010-1122	Valve Seat	1
9	1010-1121	Retainer Sleeve	1
10	1010-1113	Float Stop	1
11	1010-1112	Guide Rod	1
12	1010-1117	Assembly Weldment Body	1
13	1010-1125	Guide Cover	1
14	4002-4110	0-5000PSI Pressure Gauge (2½”)	1
15	1010-1102	¼ Shrader Valve	1
16	1010-1124	Roll Pin.¼×1”	1
17	8017-0500	Pipe Plug ¾”Hex	1
