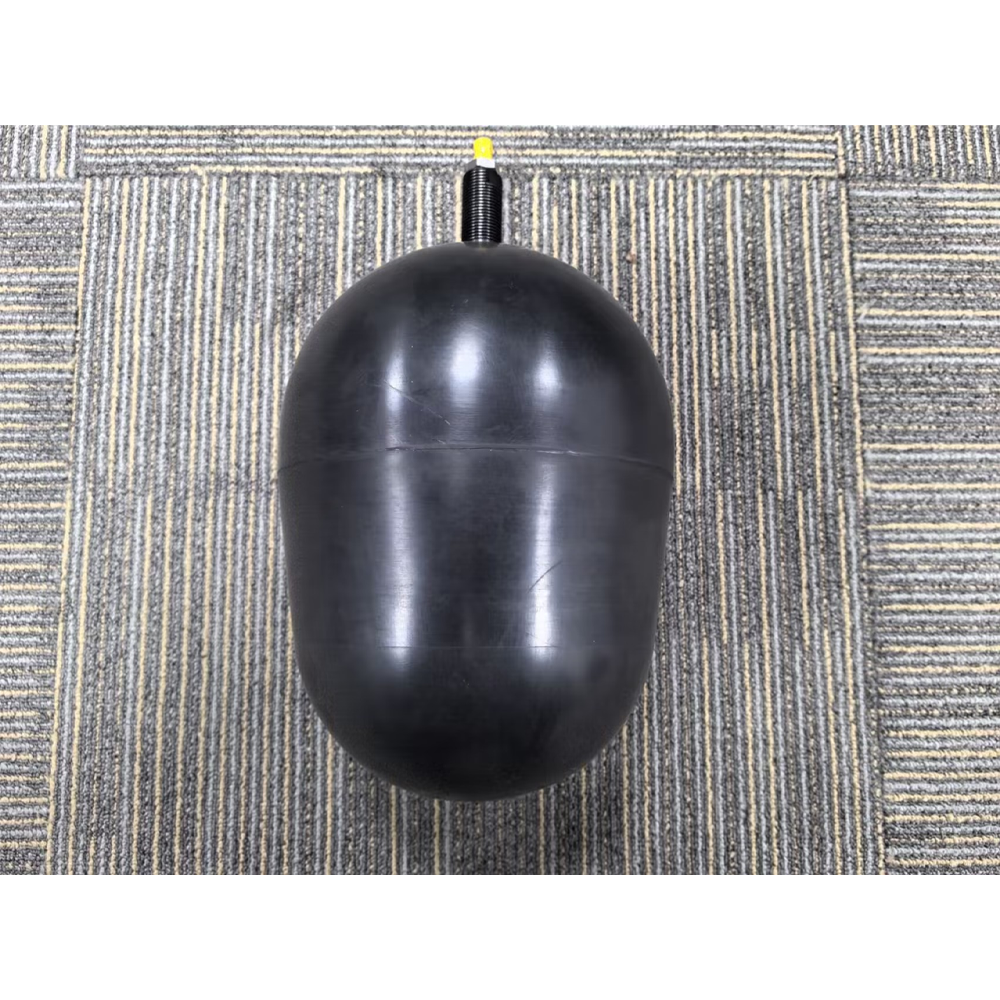

Accumulator capsule

This type of capsule has the characteristics of oil resistance, acid and alkali resistance, scratch resistance, high strength, long life, etc. It is in line with China HG/233192 standard and ASME standard.

Capsule type accumulator is a kind of gas liquid isolated accumulator, which utilizes the compressibility of gas and works according to Formula Brown and under priciples of gas law. The functions of the accumulator in the hydraulic pressure system include energy storage, pressure stabilization compensation buffering and pulsation removal. thus the electric power consumption can be economized and the equipment investment can be decreased.

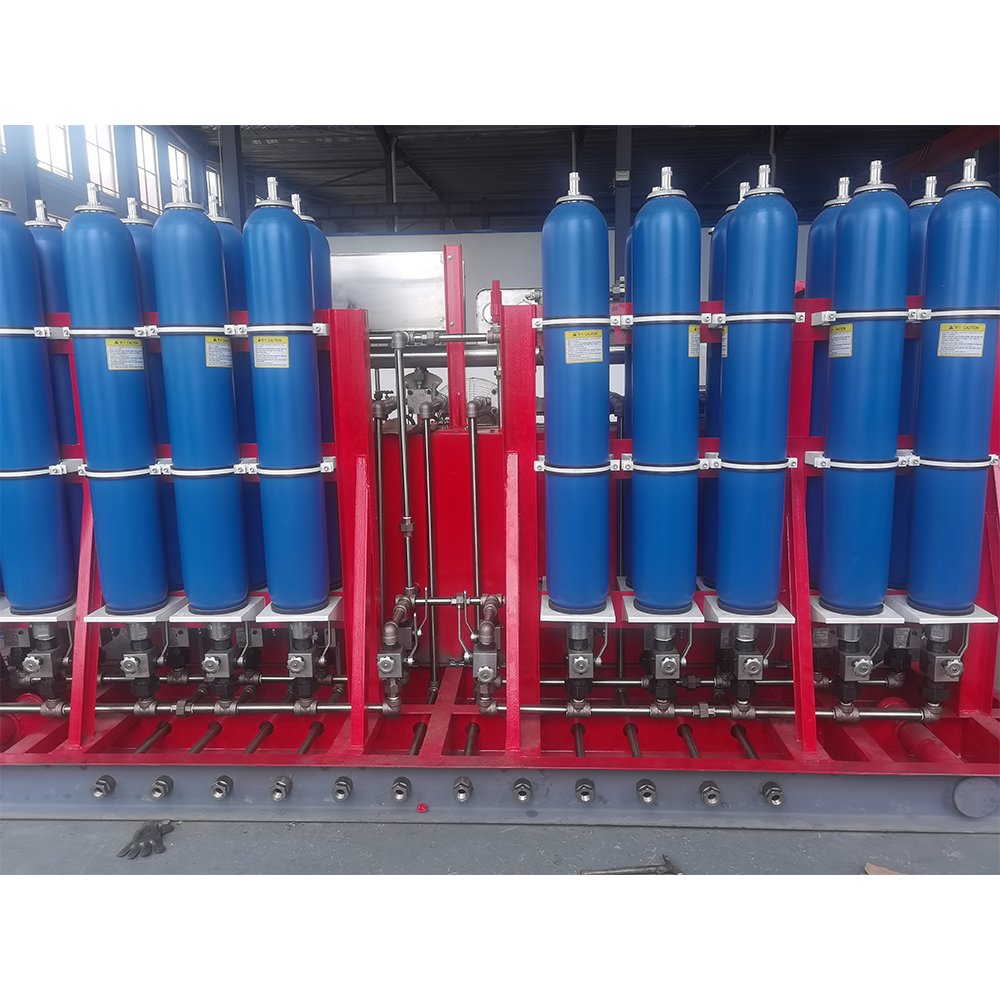

The accumulator is extensively applied in the hydraulic pressure system of heavy machinery, mine, machine tool, scientific research, power station and equipment of military industry.

Model description:

(1) Gasbag Volume: 0.4~100L

(2) GASbag Length: 74~1880mm

Bladder Size(mm) Accumulator Model ΦD
(mm)
Volume(L) L L1 R DM
0.4 74 44 38.5 M24x1.5 NXQA-0.4/*-L-* 89
0.63 144 NXQA-0.63/*-L-*
1 250 NXQA-1/*-L-* 114
1.6 144 49 66 M30x1.5 NXQA-1.6/*-L/F-* 152
2.5 206 NXQA-2.5/*-L/F-*
4 312 NXQA-4/*-L/F-*
6.3 486 NXQA-6.3/*-L/F-*
10 365 60 95 M30x1.5 NXQA-10/*-L/F-* 219
16 569 NXQA-16/*-L/F-*
25 877 NXQA-25/*-L/F-*
40 1405 NXQA-40/*-L/F-*
20 380 60 131 M30x1.5 NXQA-20/*-L/F-* 299
25 470 NXQA-25/*-L/F-*
40 740 NXQA-40/*-L/F-*
63 1180 NXQA-63 /*-L/F-*
80 1440 NXQA-80/*-L/F-*
100 1880 NXQA-100/*-L/F-*
