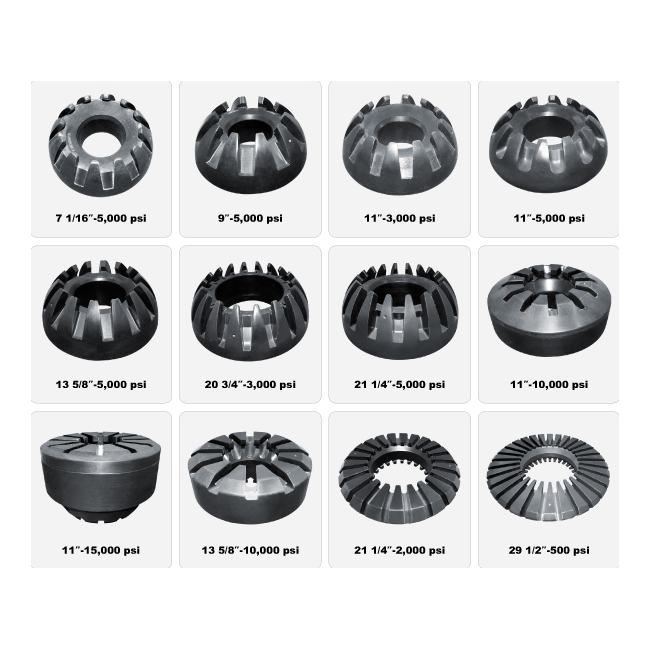

The packing element for Annular BOP has special type and taper type. The packing element is combined by the main body which is made up of the independent innovation rubber based polymer alloy material and the high strength metal frame, which conforms to the USA 16A, SATM D412, D624, D2240 and D471 standard. It is suitable for the drilling work on the oil field, which shares a high cost performance comparing to the other same type packing elements.
| Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|
| BOP Size | Work Pressure | BOP Type | Matched BOP Manufacturer | |||||
| Foreign | Domestic | |||||||
| 9″ | 5.000 ps | GK | Hydril | All | ||||
| 11″ | 10,000 psi | GX | Hydril | |||||
| 13 5/8″ | 5,000 psi | GK/GX | Hydril | |||||
| 10,000 psi | GX | Hydril | ||||||
| 16 3/4″ | 5.000 ps | GK | Hydril | |||||
| 21 1/4′ | 2.000 ps | GK | Hydril | |||||
| 29 1/2″ | 500 psi | MSP | Hydril | |||||
| 18 3/4″ | 10000 | GX | ||||||
| Seal Kit | ||||||||
| 11″ | 10,000 psi/15,000 psi | Hydri | All | |||||
| 13 5/8″ | 5,000 psi | GK | Hydril | |||||
| 13 5/8″ | 5,000 psi | GX | Hydril | |||||
| 13 5/8″ | 10,000 psi | Hydri | ||||||
| 16 3/4″ | 5,000 psi | Hydril | ||||||
| 21 1/4″ | 2,000 ps | Hydril | ||||||
| 29 1/2″ | 500 psi | Hydril | ||||||
| 18 3/4″ | 10000 | GX | ||||||
