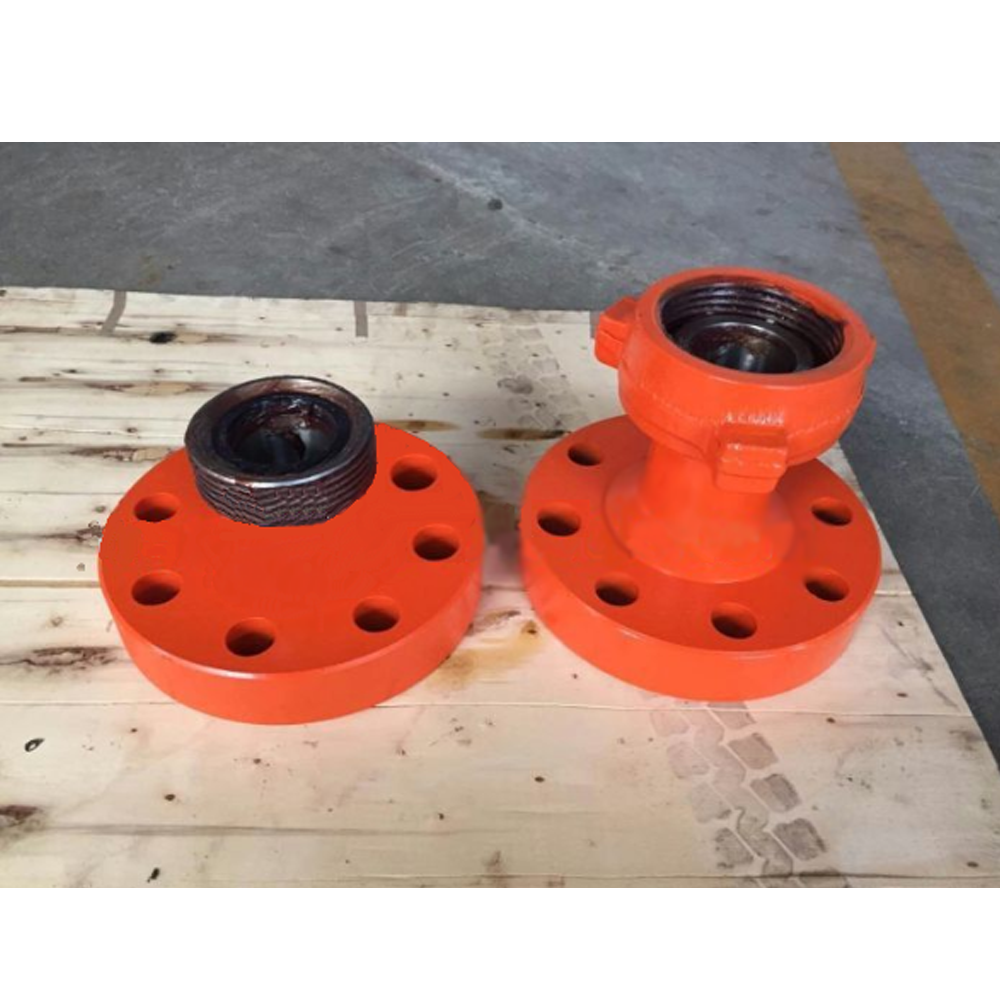

The Flange adapter or Union Flange is used for oilwell drilling and testing, it is very common accessories for piping connection.
The adapter normally with one end in Flange as per API 6A spec., and the other end in Hammer Union Wing half or Thread half,even in union half, a ported plug is available to fit for pressure gauge and need valve.
| Flange size | 1-13/16″, 2-1/16″, 2-9/16″, 3-1/16″, 3-1/8″, 4-1/16″, 5-1/8″ or Customized |
|---|---|
| Weco Union Size | 1″, 2″, 3″, 4″ |
| Weco Connection | Fig 1502, Fig 602, Fig 1002 |
| Pressure | 2000PSI, 3000PSI, 5000PSI, 10000PSI, 15000PSI |
| Material | AISI 4130(integral forged) H2S NACE MR 0175, SUS304, SUS316 or as per customers’ requirements |
| Temp Class | L-U |
| Material Class | BB, CC, DD, EE, FF |
| Product Specification Level | PSL1, PSL2, PSL3, PSL4 |
| Performance Requirement | PR1, PR2 |
| standard | API6A, NACE MR0175, ISO 9001, ISO14001 |
