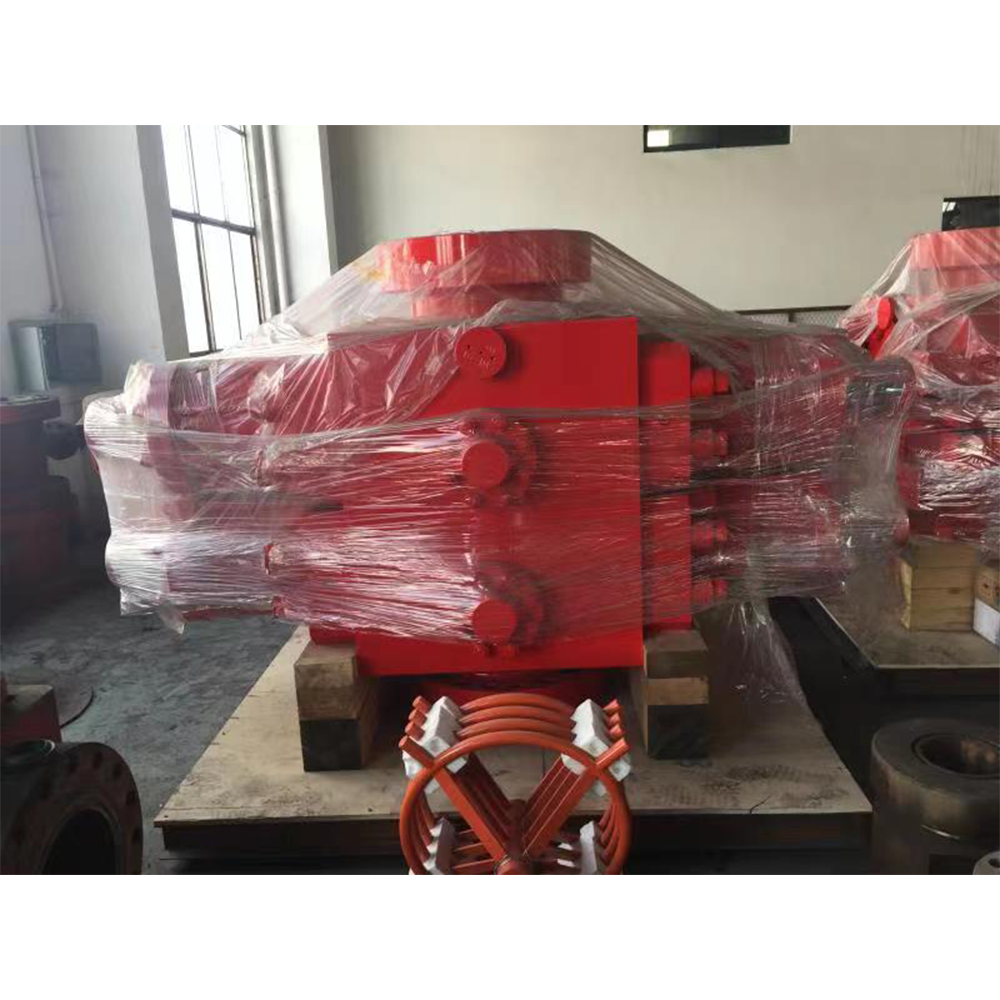

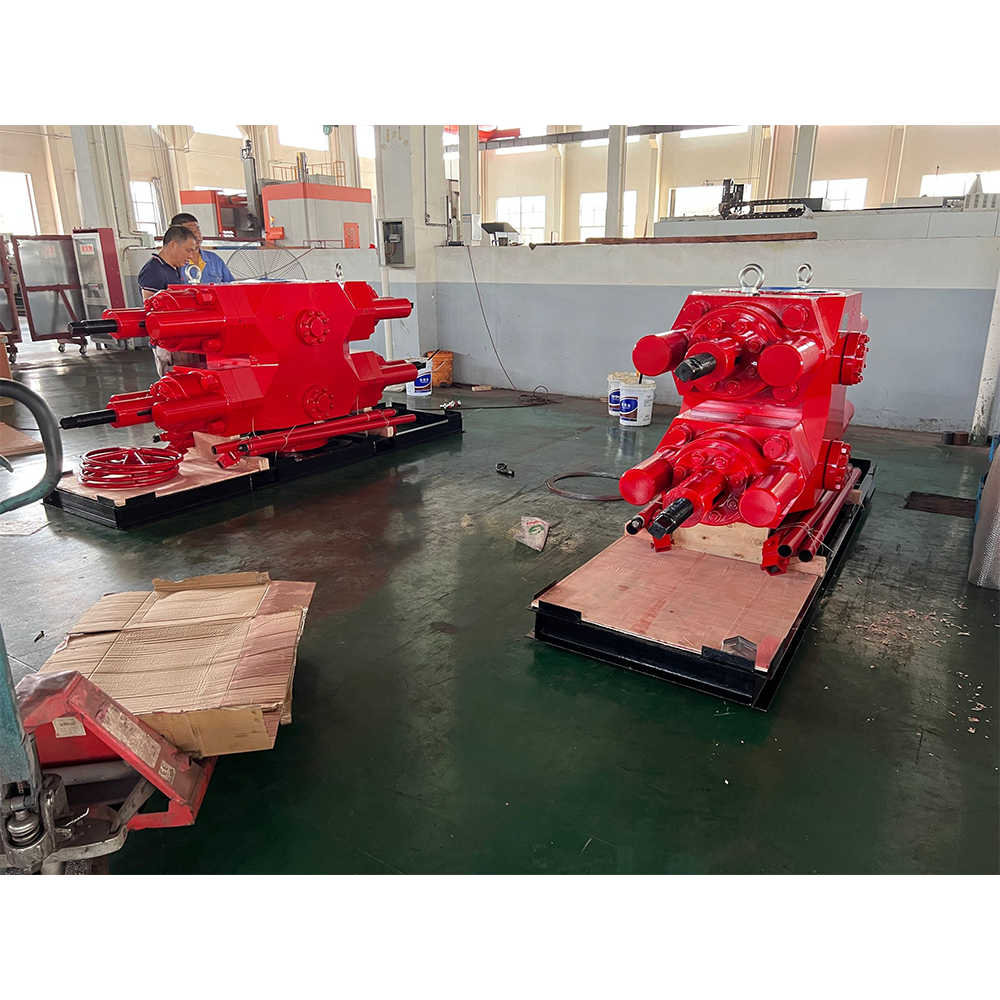

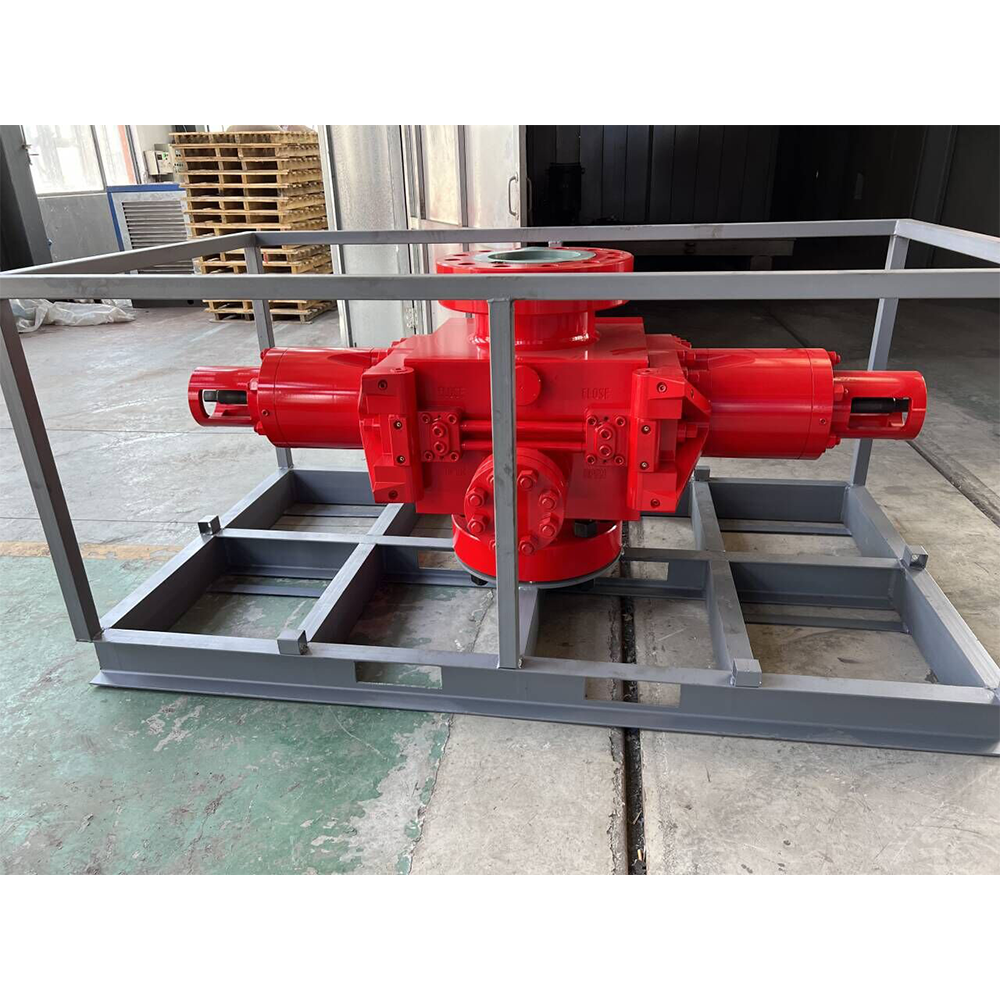

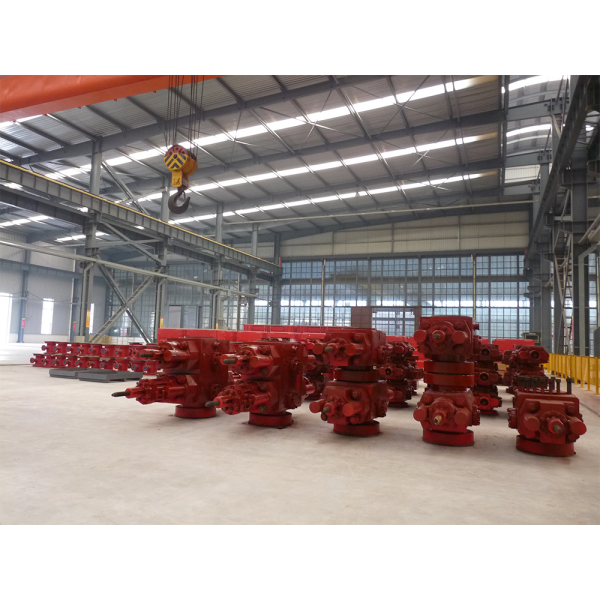

API 16A Ram BOP

Available with a wide variety of sizes and end connections.
U type ram BOPs are forging materials, which have better strength and impact toughness.
Auxiliary oil cylinder is smaller volume than traditional type.
Manual locking device can ensure that ram remains closed once hydraulic loss happened.
Ram rubber use self-contained seal, and the material can be different according to environment temperature and liquid components.
The internal part of BOP can adapt special material, which can achieve the highest levels of resistance to H2S and CO2.

Category: Tags: ,

Ram type BOPs are field proven products that are designed for a variety of operations from work-overs to high pressure, critical service operations for land drilling and subsea service. It consists of the BOP body, bonnet, hydraulic cylinder assembly, operating piston, ram change cylinder, ram opening/closing piston, locking screw, ram assembly, sealing parts etc. Top, bottom and outlet connection dimensions conform to Specification for Drilling through Equipment API Spec 16A.

Made up of the high-strength and high-tenacity alloy steel, the pressure-bearing parts (like BOP body, bonnet etc.) are formed through external refining and proper heat treatment, preventing the harmful chemical components and nonmetallic inclusion strictly from materials and ensuring BOP to be safe and reliable. The body ram chamber adopts the long runway to reduce stress concentration.

Both the bonnet switch and ram switch are driven by the hydraulic pressure and adopts the same one oil line. The bonnet employs the same one oil line and operation to open and close the ram. Moreover, the bonnet employs the same one oil line and operation to close and open the ram.

Specifications And Technical Parameters Of Model Casting Ram Bop:

Model Bore(in) Working pressure (MPa/psi) Whether shear Open volume (l) Close volume (l) Locking type Total weight(kg)(reference)
FZ18-21 7 1/16 21/3000 N 2*1.6 2*2 Manual 798
2FZ18-21 4*1.6 4*2 1660
FZ18-35 7 1/16 35/5000 N 2*1.6 2*2 Manual 798
2FZ18-35 4*1.6 4*2 1660
FZ18-35 7 1/16 35/5000 Y 2*5.8 2*6.2 Manual 1065
2FZ18-35 4*5.8 4*6.2 2140
FZ18-70 7 1/16 70/10000 Y 2*8.8 2*9.6 Manual
2FZ18-70 4*8.8 4*9.6 3866
FZ23-21 9 21/3000 N 2*2 2*2.4 Manual 792
2FZ23-21 4*2 4*2.4 1800
FZ23-35 9 35/5000 N 2*4.4 2*5 Manual 1735
2FZ23-35 4*4.4 4*5 3980
FZ23-35 9 35/5000 Y 2*9.2 2*10 Manual
2FZ23-35 4*9.2 4*10 4394
FZ23-70 9 70/10000 N 2*5.7 2*6.3 Manual 3025
2FZ23-70 4*5.7 4*6.3 5480
FZ28-21 11 21/3000 N 2*5.2 2*6 Manual 1840
2FZ28-21 4*5.2 4*6 3560
FZ28-21 11 21/3000 Y 2*13 2*12.1 Manual 2155
2FZ28-21 2*13 2*12.1 3865
FZ28-35 11 35/5000 N 2*5.2 2*5.9 Manual 2260
2FZ28-35 4*5.2 4*5.9 4255
FZ28-35 11 35/5000 Y 2*11 2*12 Manual 2660
2FZ28-35 4*11 4*12 4935
FZ28-35 11 35/5000 Y 2*11 2*12 Manual
2FZ28-35 4*11 4*12 5003
FZ28-70 11 70/10000 N 2*6.5 2*7.4 Manual 4870
2FZ28-70 4*6.5 4*7.4 7730
FZ28-70 11 70/10000 Y 2*15 2*16.5 Manual 3955
2FZ28-70 4*15 4*16.5 7500
FZ35-14 13 5/8 14/2000 N 2*2.8 2*3.6 Manual 1360
FZ35-21 13 5/8 21/3000 N 2*5.9 2*6.7 Manual 2020
2FZ35-21 4*5.9 4*6.7 3516
FZ35-21 13 5/8 21/3000 Y 2*17.5 2*20 Manual 2865
2FZ35-21 4*17.5 4*20 5481
FZ35-35 13 5/8 35/5000 N 2*8.3 2*9 Manual 3300
2FZ35-35 4*8.3 4*8.3 6150
FZ35-35 13 5/8 35/5000 Y 2*17.9 2*19.6 Manual 3620
2FZ35-35 4*17.9 4*19.6 6420
FZ35-70 13 5/8 70/10000 Y 2*14.7 2*16.6 Manual 6445
2FZ35-70 4*14.7 4*16.6 11950
FZ35-70 13 5/8 70/10000 Y 2*18.3 2*20.9 Manual 6450
2FZ35-70 4*18.3 4*20.9 11660
FZ43-35 16 3/4 35/5000 Y 2*22 2*25.5 Manual 6860
2FZ43-35 4*22 4*25.5 12496
FZ48-35 18 3/4 35/5000 2*26.5 2*31 Manual 9420
2FZ48-35 4*26.5 4*31 17020
FZ53-21 20 3/4 21/3000 N 2*11.7 2*13.7 Manual 5365
2FZ53-21 4*11.7 4*13.7 9530
FZ53-21 20 3/4 21/3000 Y 2*24 2*27 Manual 5908
2FZ53-21 4*24 4*27 10098
FZ54-14 21 1/4 14/2000 N 2*11.7 2*13.7 Manual 4725
2FZ54-14 4*11.7 4*13.7 8980
FZ54-14 21 1/4 14/2000 Y 2*24 2*27 Manual 5268
2FZ54-14 4*24 4*27 10116
FZ54-35 21 1/4 35/5000 Y 2*29.7 2*31.1 Manual 9730
2FZ54-35 4*29.7 4*31.1 17625
FZ54-70 21 1/4 70/10000 Y 2*28 2*29 Manual 17873
2FZ54-70 4*28 4*29 28075
FZ68-21 26 3/4 21/3000 Y 2*33.5 2*35 Manual 10177
2FZ68-21 4*33.5 4*35 19318

Forging RAM BOP
Specifications And Technical Parameters Of Model Forging Ram Bop

Model Bore(in) Working pressure (MPa/psi) Whether shear Open volume (l) Close volume (l) Locking type Total weight(kg)(reference)
FZ18-21 7 1/16 21/3000 N 2*2.9 2*3.3 Manual 420
2FZ18-21 4*2.9 4*3.3 770
FZ18-35 7 1/16 35/5000 N 2*2.9 2*3.3 Manual 493
2FZ18-35 4*2.9 4*3.3 885
FZ18-70 7 1/16 70/10000 N 2*2.8 2*2.8 Manual 1179
2FZ18-70 4*2.8 4*2.8 2175
FZ18-105 7 1/16 105/15000 Y 2*7 2*7.5 Manual 2520
2FZ18-105 4*7 4*7.5 4590
FZ28-105 11 105/15000 Y 1*38 33.4 Hydraulic 7815
2FZ28-105 2*38 2*33.4 13990
FZ28-105 11 105/15000 Y 1*30 32 Manual 6450
2FZ28-105 2*30 2*32 12283
FZ35-35 13 5/8 35/5000 Y 2*20 2*21 Hydraulic 5325
2FZ35-35 4*20 4*21 10155
FZ35-70 13 5/8 70/10000 Y 2*20 2*21 Hydraulic 6265
2FZ35-70 4*40 4*21 11905
FZ35-70 13 5/8 70/10000 Y 2*21 2*21 Hydraulic 6855
2FZ35-70 4*21 4*21 12640
FZ35-70 13 5/8 70/10000 Y 2*19 2*21 Manual 6425
2FZ35-70 4*19 4*21 11780
FZ35-105 13 5/8 105/15000 Y 1*37 42 Manual 8400
2FZ35-105 2*37 2*42 14930
