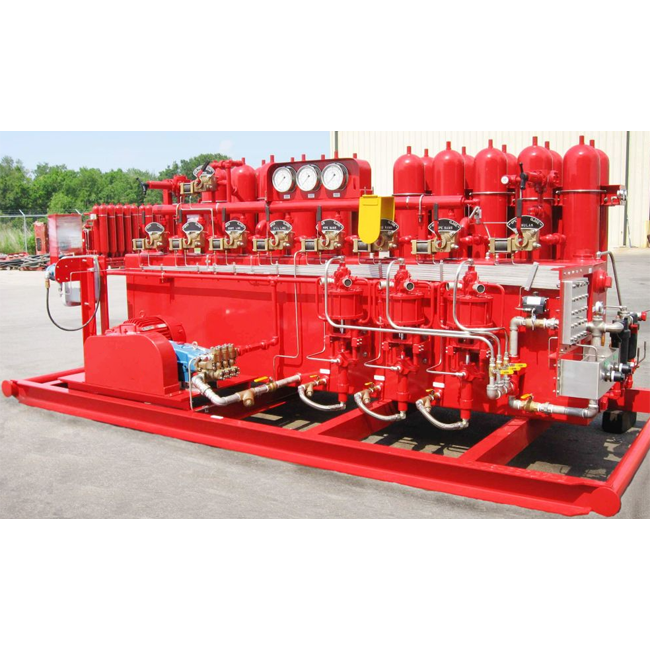

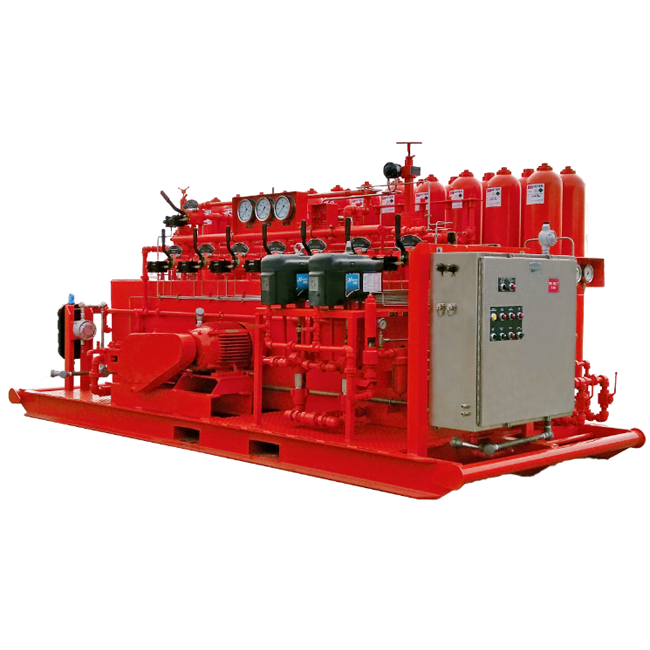

The BOP Control system for surface mounted BOP stacks is used to open and close BOP and relief valve while drilling operation. It mainly consists of remote control panel, driller’s panel, air cable, pipe rack, high pressure hoses, protection house etc.
Main parameters as follows
Environmental temperature:-13~40°C
Power: 380v, 50Hz
Nominal pressure: 21MPa(3000Psi)
Max.working pressure:34.5MPa(5000Psi)
Pressure range: 0~14MPa(0~2000Psi)
Nitrogen charging pressure of accumulators: 7±0.7MPa(1000±100Psi)
Air supply pressure: 0.65~0.8MPa(93~115Psi)
Pressure range of pressure valve: 17.5~21MPa(2500~3000Psi)
Hydro-pneumatic pressure switch: 19~21MPa(2700~3000Psi)
| Model | Number of controlled objects | Accumulator unit | Explosion-proof motor Power (Kw) |
Pump system displacement | Rated operating pressure of the system (Mpa) | Maximum operating pressure of the system (Mpa) | |||
|---|---|---|---|---|---|---|---|---|---|
| Total volume (L) | Available liquid volume (L) | Installation mode | Triplex pump (mL/r) | Pneumatic pump (mL/stroke) |
|||||
| FKDQ1920-13 | 13 | 80×24 | 960 | Side / Rear | 18.5×3 | 80×3 | 120×5 | 21 | 31.5 |
| FKDQ1600-14 | 14 | 80×20 | 800 | Side / Rear | 18.5×2 | 80×2 | 120×4 | 21 | 31.5 |
| FKDQ1600-12 | 12 | 80×20 | 800 | Side / Rear | 18.5×2 | 80×2 | 120×4 | 21 | 31.5 |
| FKDQ1600-10 | 10 | 80×20 | 800 | Side / Rear | 18.5×2 | 80×2 | 120×4 | 21 | 31.5 |
| FKDQ1440-14 | 14 | 60×24 | 720 | Side / Rear | 18.5×2 | 80×2 | 120×4 | 21 | 31.5 |
| FKDQ1280-10 | 10 | 80×16 | 640 | Side / Rear | 18.5×2 | 80×2 | 120×3 | 21 | 31.5 |
| FKDQ1280-9 | 9 | 80×16 | 640 | Side / Rear | 18.5×2 | 80×2 | 120×3 | 21 | 31.5 |
| FKDQ1280-8 | 8 | 80×16 | 640 | Side / Rear | 18.5×2 | 80×2 | 120×2 | 21 | 31.5 |
| FKDQ1280-7 | 7 | 80×16 | 640 | Side / Rear | 18.5×2 | 80×2 | 120×2 | 21 | 31.5 |
| FKDQ1200-17 | 17 | 60×20 | 600 | Side / Rear | 18.5×2 | 80×2 | 120×3 | 21 | 31.5 |
| FKDQ1200-9 | 9 | 60×20 | 600 | Side / Rear | 18.5×2 | 80×2 | 120×3 | 21 | 31.5 |
| FKDQ1200-8 | 8 | 60×20 | 600 | Side / Rear | 18.5×2 | 80×2 | 120×2 | 21 | 31.5 |
| FKDQ960-8 | 8 | 60×16 | 480 | Side / Rear | 18.5×2 | 80×2 | 120×2 | 21 | 31.5 |
| FKDQ960-7 | 7 | 60×16 | 480 | Side / Rear | 18.5×2 | 80×2 | 120×2 | 21 | 31.5 |
| FKDQ800-8 | 8 | 40×20 | 400 | Side / Rear | 18.5 | 80 | 120 | 21 | 31.5 |
| FKDQ 800-7 | 7 | 40×20 | 400 | Side / Rear | 18.5 | 80 | 120 | 21 | 31.5 |
| FKDQ 800-6 | 6 | 40×20 | 400 | Side / Rear | 18.5 | 80 | 120 | 21 | 31.5 |
| FKDQ720-7 | 7 | 60×12 | 360 | Side / Rear | 18.5 | 80 | 120 | 21 | 31.5 |
| FKDQ 720-6 | 6 | 60×12 | 360 | Side / Rear | 18.5 | 80 | 120 | 21 | 31.5 |
| FKDQ 640-6 | 6 | 40×16 | 320 | Side / Rear | 18.5 | 80 | 120 | 21 | 31.5 |
| FKDQ 640-5 | 5 | 40×16 | 320 | Side / Rear | 18.5 | 80 | 120 | 21 | 31.5 |
| FKDQ 480-5 | 5 | 40×12 | 240 | Side / Rear | 18.5 | 80 | 120 | 21 | 31.5 |
| FKDQ 480-4 | 4 | 40×12 | 240 | Side / Rear | 18.5 | 80 | 120 | 21 | 31.5 |
| FKDQ320-5 | 5 | 40×8 | 160 | Side / Rear | 15 | 60 | 120 | 21 | 31.5 |
| FKDQ320-4 | 4 | 40×8 | 160 | Side / Rear | 15 | 60 | 120 | 21 | 31.5 |
| FKDQ320-3 | 3 | 40×8 | 160 | Side / Rear | 15 | 60 | 120 | 21 | 31.5 |
| FKDQ240-3 | 3 | 40×6 | 120 | Side / Rear | 15 | 60 | 120 | 21 | 31.5 |
| FKDQ200-4 | 4 | 25×8 | 100 | Side / Rear | 15 | 60 | 120 | 21 | 31.5 |
| FKDQ160-3 | 3 | 40×4 | 80 | Side / Rear | 15 | 60 | 120 | 21 | 31.5 |
| FKDQ150-2 | 2 | 50×3 | 75 | Side / Rear | 15 | 60 | 120 | 21 | 31.5 |
| FKDQ125-3 | 3 | 25×5 | 62.5 | Side / Rear | 7.5/11 | 28 | × | 21 | 21 |
| FKDQ80-3 | 3 | 40×2 | 40 | Side / Rear | 7.5 | 28 | × | 21 | 21 |
| FKDQ80-2 | 2 | 40×2 | 40 | Side / Rear | 7.5 | 28 | × | 21 | 21 |
| FKDQ75-2 | 2 | 25×3 | 62.5 | Side / Rear | 7.5 | 28 | × | 21 | 21 |
| FKDQ63-2 | 2 | 63×1 | 31.5 | Side / Rear | 7.5 | 28 | × | 21 | 21 |
| FKDQ50-2 | 2 | 25×2 | 25 | Side / Rear | 7.5 | 28 | × | 21 | 21 |
| FKDQ40-2 | 2 | 40×1 | 20 | Side / Rear | 7.5 | 28 | × | 21 | 21 |
| FKDQ25-2 | 2 | 25×2 | 12.5 | Side / Rear | 7.5 | 28 | × | 21 | 21 |
| FKDQ25-1 | 1 | 25×2 | 12.5 | Side / Rear | 7.5 | 28 | × | 21 | 21 |
