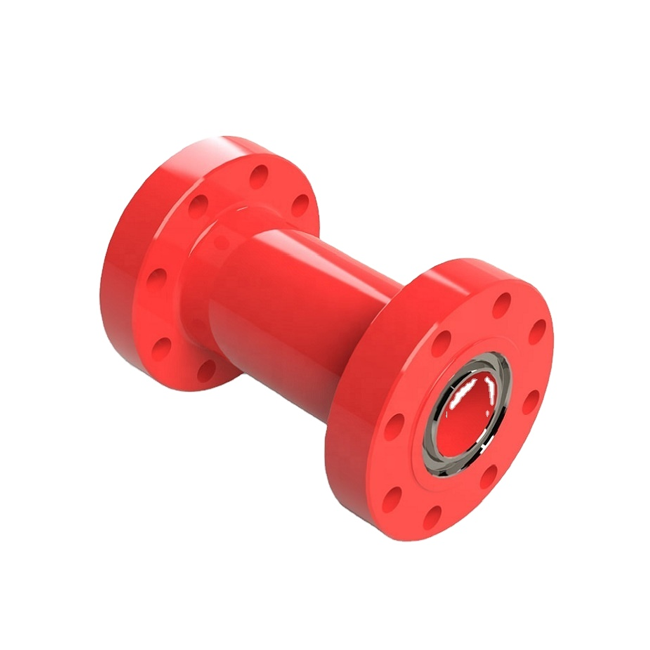

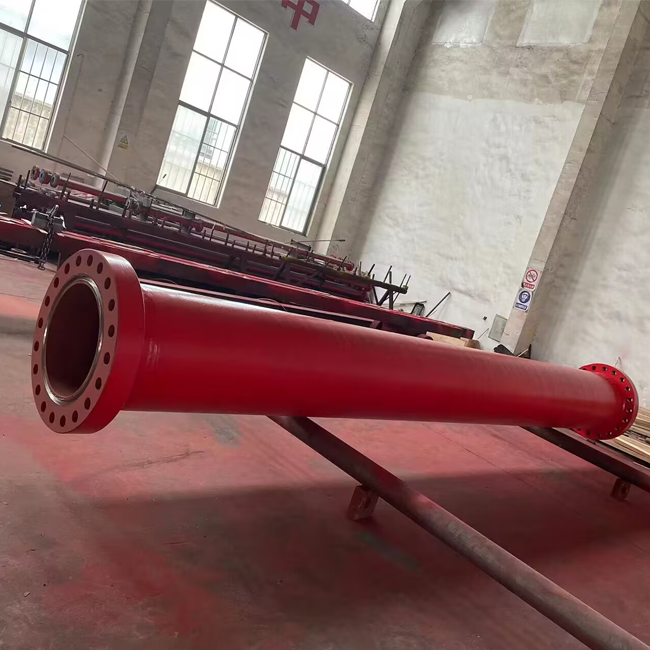

Adapter Spool is the part which is often used in the oilfield, adapter spool is designed and manufactured in accordance with API 6A standard, the material is AISI 4130 or 410SS as per customer’s requirement, adapter Spools usually have the different nominal end connections. We Manufacture Spacer Spools in all sizes and pressure ratings suitable for Well Head extension, B.O.P. spacing, and Choke, Kill and Production Manifold applications. Spacer Spools usually have the same nominal end connections.
API Spec 16A drilling spool Main technology parameters（flanged spacer spool adapter）
1, Working pressure3000~15000psi (21~70MPa)
2, Nominal bore7 1/16~13 5/8 (179.4~346.1mm)
3, H2S Trim.
4, the ring grooves flanges are all lined with the corrosion resistant alloy
5, According to the latest API Spec 16A standard,and quality standard of ISO9001.
Specification
3 1/8″ X 5M To 3 1/8″ X 5M
4 1/16″ X 5M To 4 1/16″ X 5M
4 1/16″ X 10M To 4 1/16″ X 10M
4 1/16″ X 15M To 4 1/16″ X 15M
5 1/8″ X 5M To 5 1/8″ X 5M
7 1/16″ X 5M To 7 1/16″ X 5M
9″ X 5M To 9″ X 5M
11″ X 5M To 11″ X 5M
13 5/8″ X 3M To 13 5/8″ X 3M
13 5/8″ X 5M To 13 5/8″ X 5M
13 5/8″ X 10M To 13 5/8″ X 10M
21 1/4″ X 2M To 21 1/4″ X 2M
26 3/4″ X 3M To 26 3/4″ X 3M
| Type | Size | Working Pressure |
|---|---|---|
| Blind Flange | 1-13/16” to 21-1/4” | 2,000 psi, 3,000 psi, 5,000 psi, 10,000 psi, 15,000 psi, 20,000 psi |
| Target Flange | 1-13/16” to 21-1/4” | 2,000 psi, 3,000 psi, 5,000 psi, 10,000 psi, 15,000 psi, 20,000 psi |
| Testing Flange | 1-13/16” to 21-1/4” | 2,000 psi, 3,000 psi, 5,000 psi, 10,000 psi, 15,000 psi, 20,000 psi |
| Weld Neck Flange | 1-13/16” to 21-1/4” | 2,000 psi, 3,000 psi, 5,000 psi, 10,000 psi, 15,000 psi, 20,000 psi |
| Product Name | Double studded adapter ,API 6A flange(DSA),Threaded flange adapter |
|---|---|
| Standard | ASTM,AISI,DIN,EN,AS. |
| Production Process | Forging, Heat Treatment, CNC Machining. |
| Machining Range | Outer Diameter Max 3000mm, Length Max 12000mm. |
| Production Precision | Tolerance:0.01mm,Roughness:Ra0.4,Concentricity:0.01mm,Roundness:0.005mm. |
| Provide Product Certificate | PED4.3 AD2000,EN10204-3.1(Certificate No.:DGR-0036-QS-W 728/2015/MUC). |
| Material | Carbon steel,Stainless Steel,Duplex Stainless Steel,Copper,Clad Material. |
