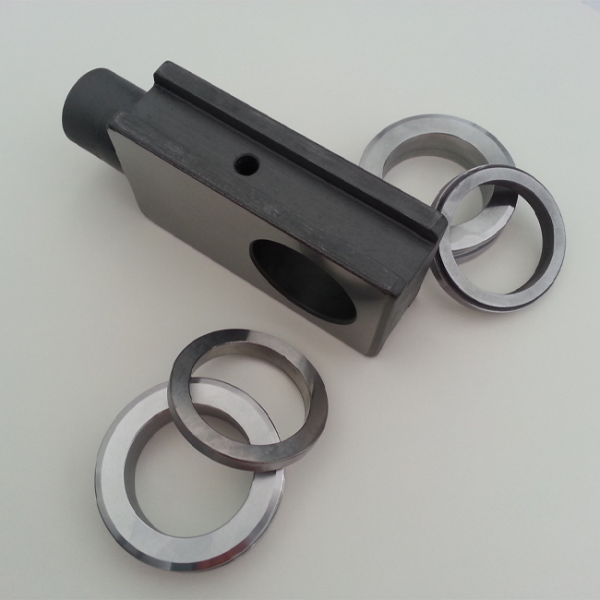

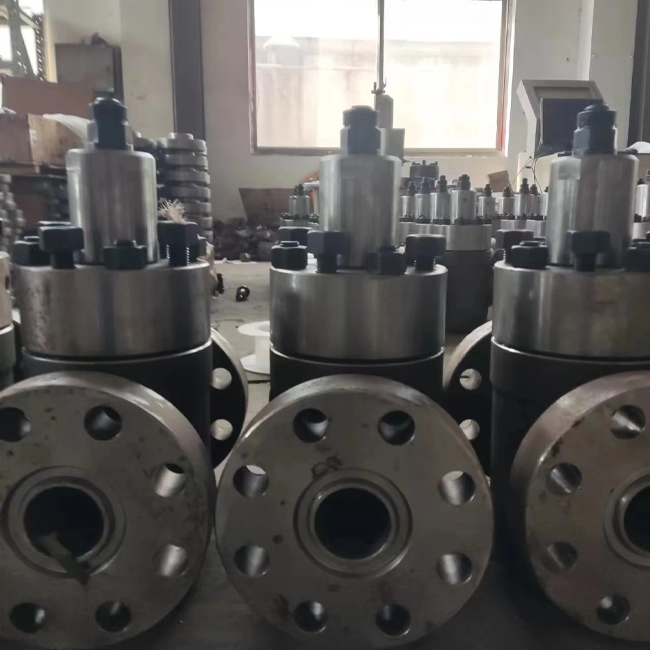

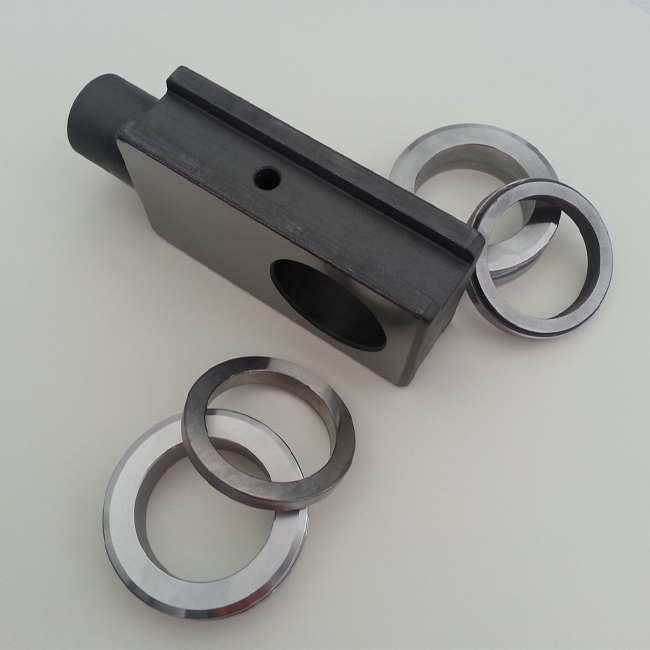

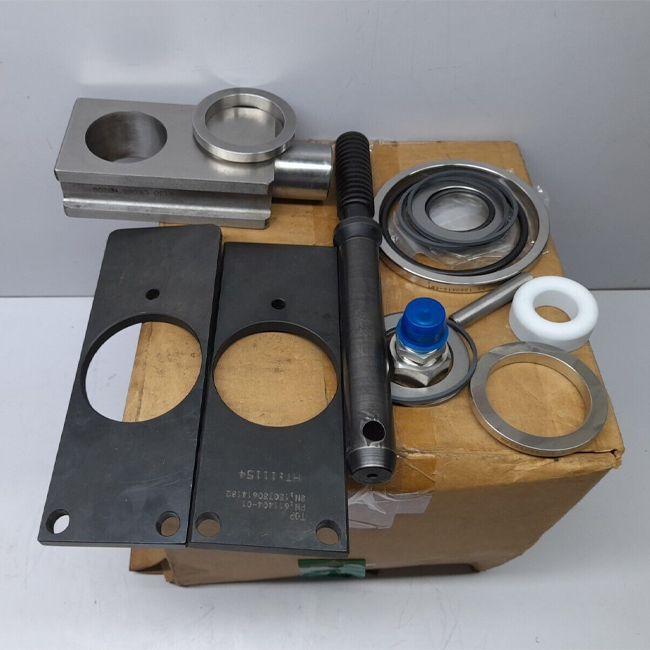

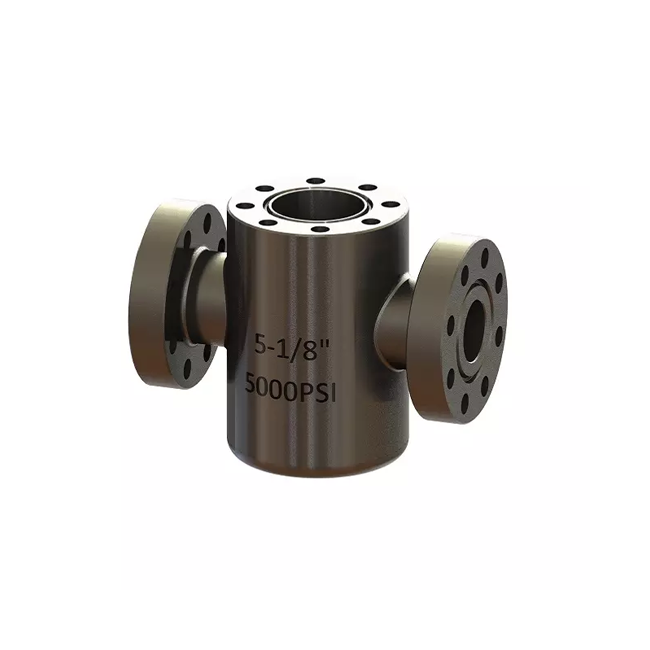

API gate Valve ALL-PETRO produces a wide range of API 6A Manual & Hydraulic Gate Valve components of various sizes for different applications, such as Valve Body, Gate, Seat, Bonnets, Stem, Retainer Plate, Bearing Cap, Stem Adapters, Packing Gland, Hand Wheels, Bonnet Seal Ring, Gate Pin, Stem Packing and Bearing Spacers.
Our API 6A Gate Valve parts are 100% interchangeable with OEM Cameron FC & FLS Gate Valve components. All of our gate valve (such as Manual Gate Valves, Hydraulic Gate Valves) parts are fully designed, manufactured, and tested as per API 6A, and NACE-MR0175 standards.
We are available in full standard bore sizes from 1-13/16″ thru 7-1/16″ and rated working pressure from 2000PSI to 20000PSI.
We can also design and produce gate valve parts as per customers’ specific requirements.
Below are some general information about API6A Gate Valve replacement parts:
Size: 1-13/16″ – 7-1/16″
Working Pressure: 2000PSI, 3000PSI, 5000PSI, 10000PSI, 15000PSI
Material: 1020 or Customized
This Retainer Plate can be used in both DD and EE trim valves
| Working pressure(psi) | 2000psi -20000psi(14Mpa -140Mpa) |
|---|---|
| Material class | AA,BB,CC,DD,EE,FF |
| PSL | PSL1,PSL2,PSL3,PSL3G,PSL4 |
| PR | PR1 |
| Master bore | 1 13/16”;2 1/16”;2 9/16”;3 1/8”;3 1/16”;4 1/16”;5 1/8”;7 1/16” |
