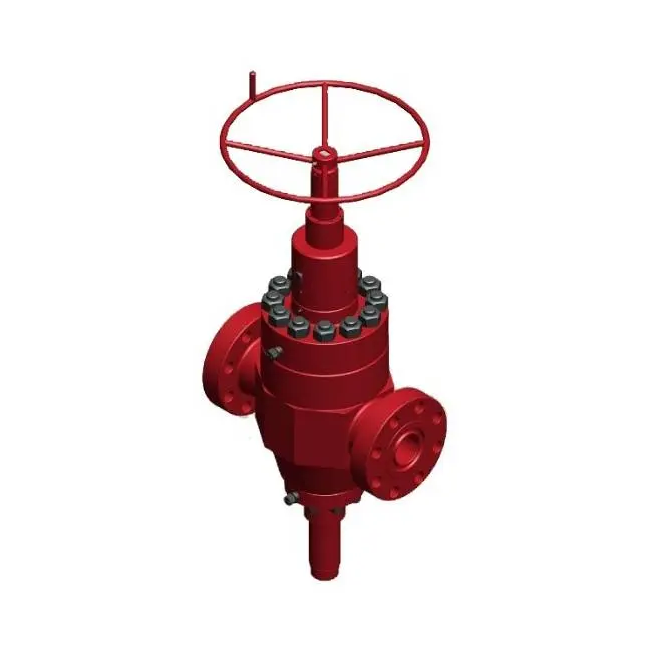

ball screw gate valves

Category: Tag:

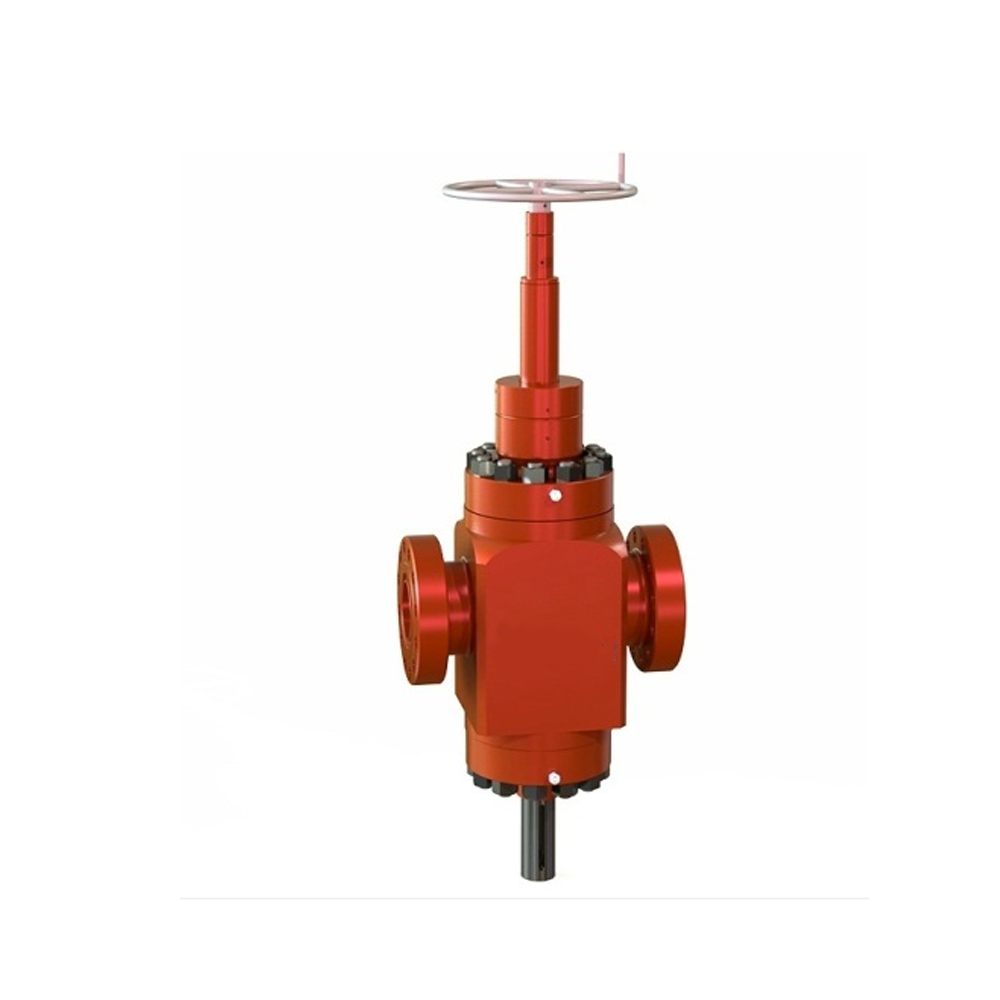

Frac valves – ball screw gate valves provided by ALL-PETRO is a type of large bore gate high pressure valve which were improved from Cameron FLS-R gate valve, it’s the main component of frac tree, the frac valve is often used on the top of the wellhead on high pressure oil well, can do the frac job for isolating the fluid from the well.

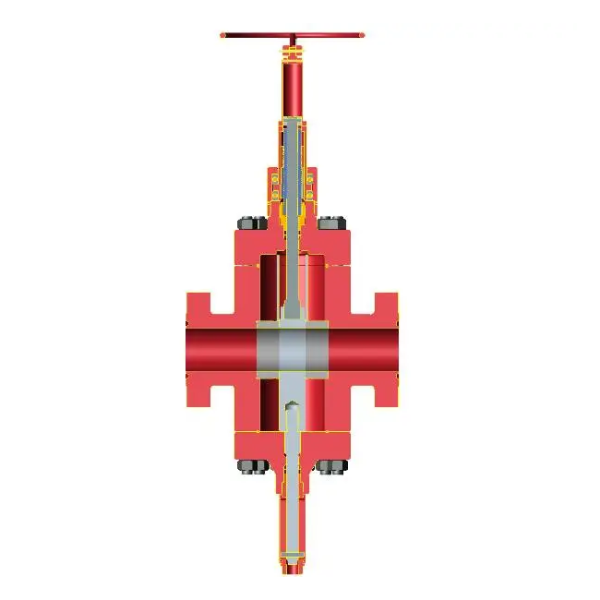

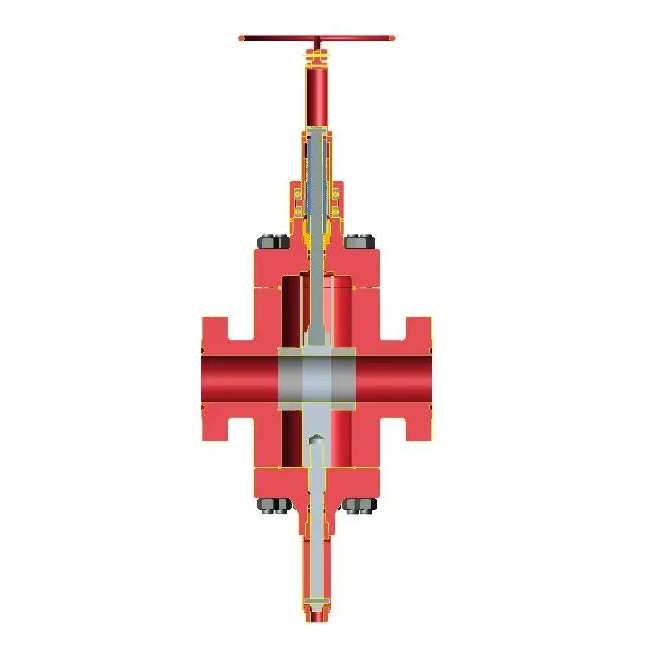

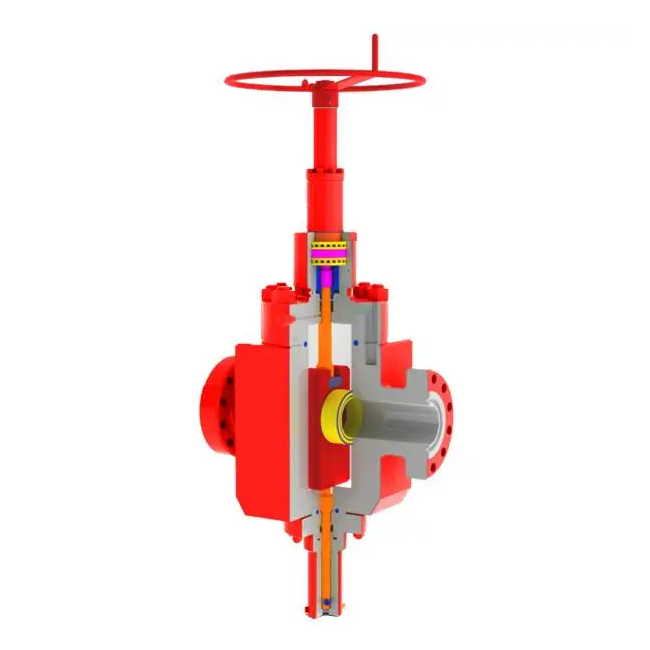

BSO Ball screw gate valve with a special design according to API 6A for large-bore applications and high pressure. The design eliminates the need for gear-type torque multipliers, and results quicker manual operation at full working pressure with remarkably low operating torque.
Features:

Rated Working Pressure 2000PSI-20000PSI
Rated Working Temperature -46Deg.-121Deg.
Working Medium Oil, gas, mud and water
Material Class AA-FF
Product Specification Level PSL1-4
Performance Requirement Level PR1
