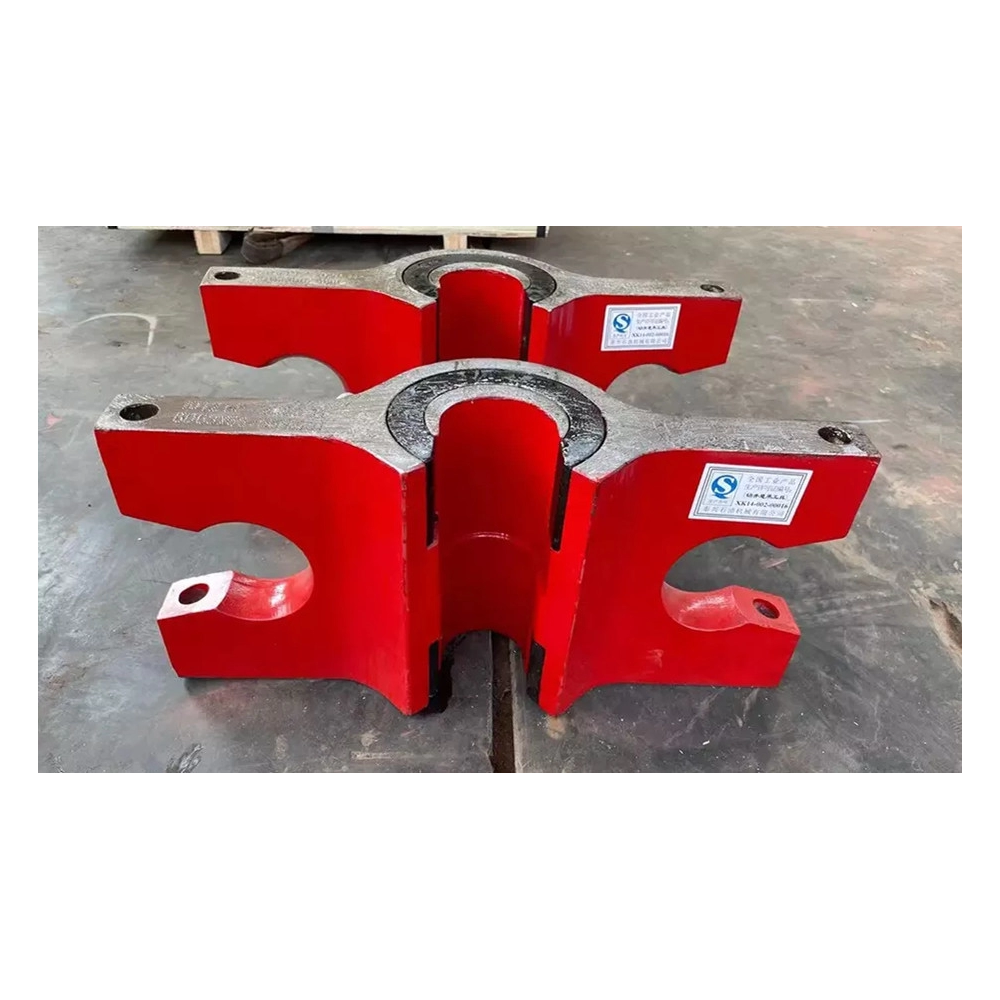

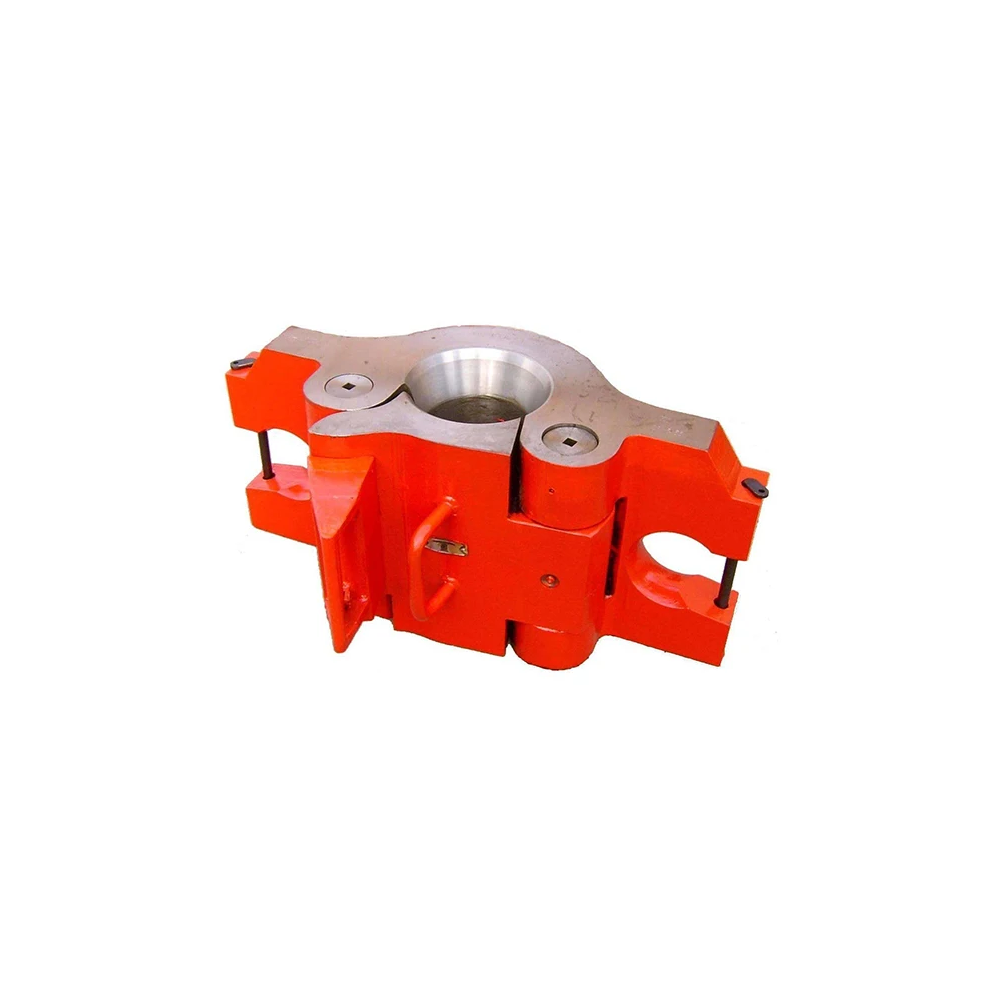

BD Series Tubing Elevator suitable for each size sucker rod in well service.Made of high quality alloy steel, all heat-treated and subjected to strict nondestructive testing and load tests.
The Elevators Are Designed And Manufactured According To API Spec 8C Specification:
| Specification | Diameter of Joint | Bore | Rated Rating Load | ||
|---|---|---|---|---|---|
| in | mm | Upper | Lower | ||
| BD63 | 2 3/8 | 73.02 | 62.4 | 62.4 | 585(65) 675(75) 900(100) |
| BD69 | 2 3/8EU | 77.8 | 68.6 | 68.6 | |
| BD76 | 2 7/8 | 88.9 | 75 | 75 | |
| BD82 | 2 7/8EU | 93.17 | 81.4 | 81.4 | |
| BD92 | 3 1/2 | 107.95 | 91 | 91 | |
| BD98 | 3 1/2EU | 114.3 | 98 | 98 | |
