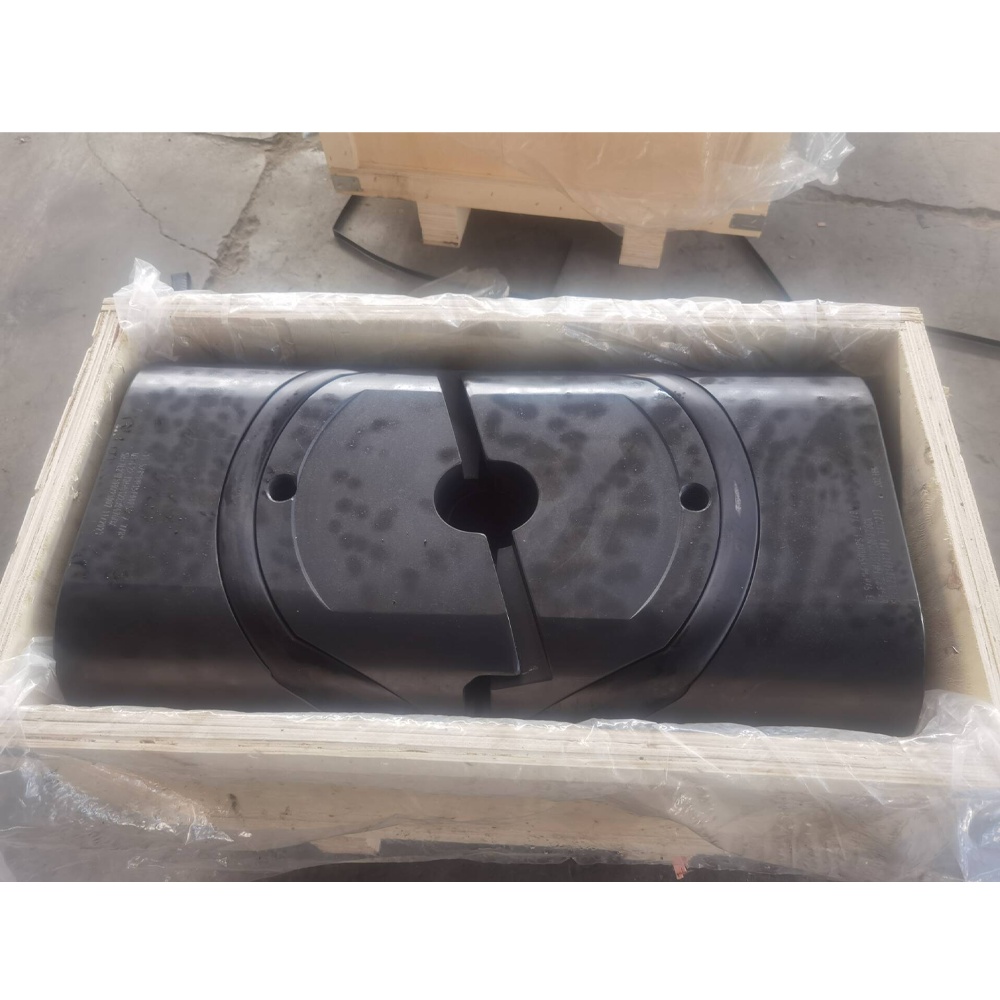

Shear ram is composed of upper ram body, lower ram body, top seal, right seal, left seal and tool face seal. Tool face seal is placed in front slot of the upper ram body, with right seal and left seal on the both sides. The shear ram is installed in the BOP in the same manner the common ram. but need to replace the hanger of the main piston to hunger. Otherwise it will not be used.

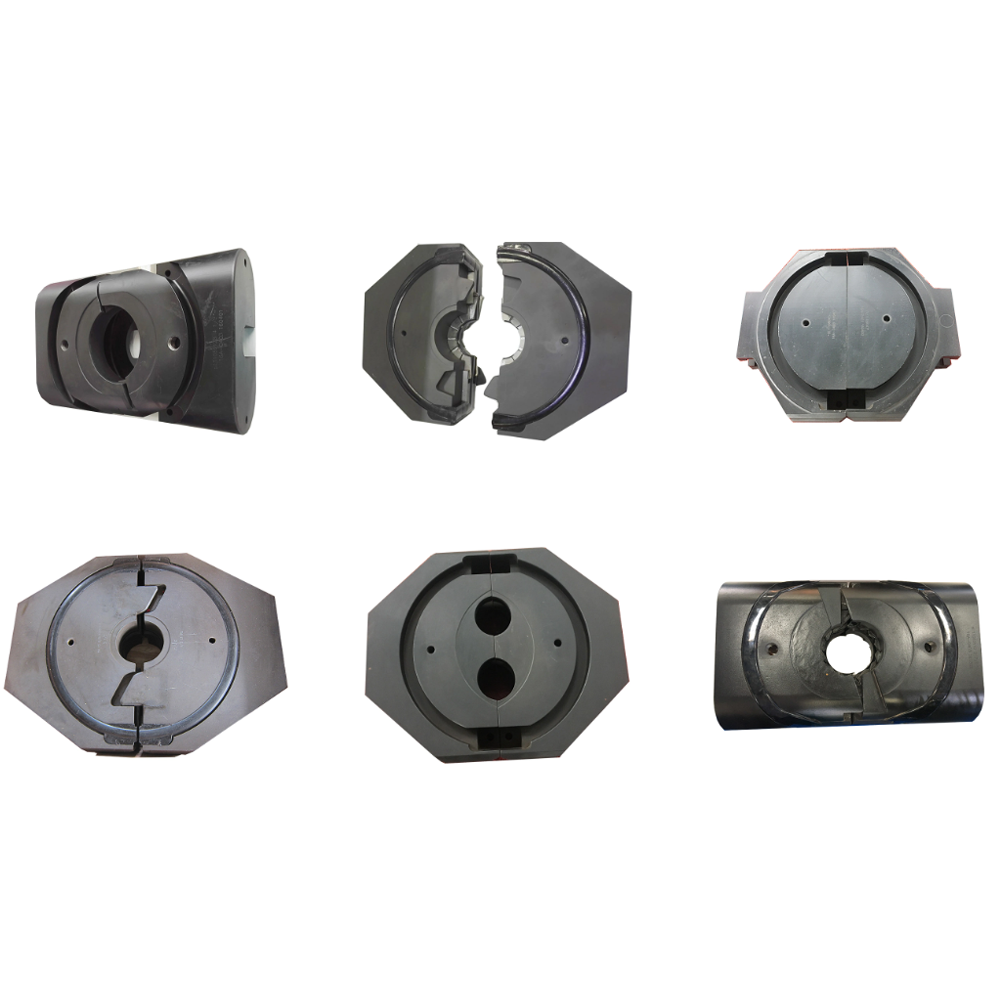

The Pipe Ram is use for single or double Ram Blow Out Preventer(BOP).The ram’s size is matched with the pipe’s OD. It can be closed between the pipe stem and well annular space.

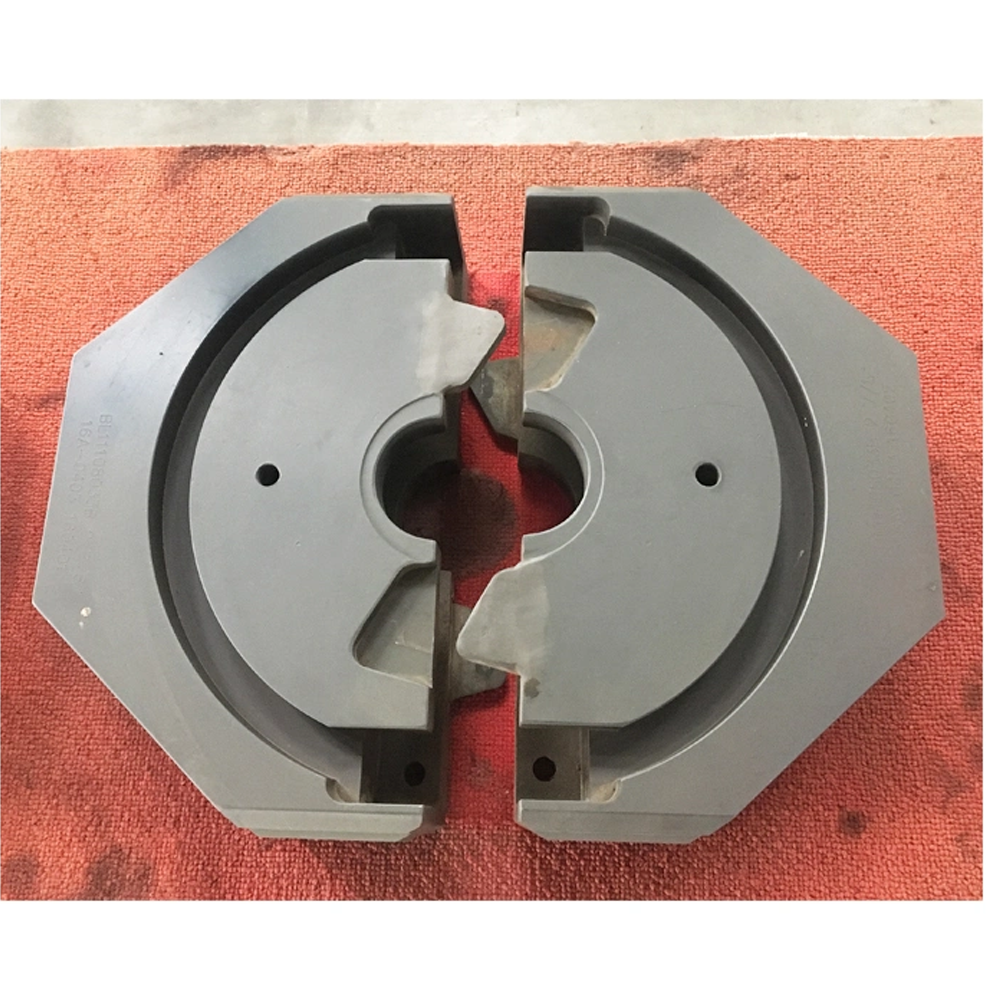

The Blind Ram is use for single or double Ram Blow Out Preventer(BOP). It can be closed the well when the well without the pipe line or blowout.
Type: Annular BOP, Single Ram BOP, Double Ram BOP, Shear Ram BOP
Working pressure: 2000psi-15000psi (14 Mpa-105Mpa)
Operating temperature:-18deg–121deg
Bore size:7 1/16″-21 1/4″
Top & bottom connection: Flanged, studded
