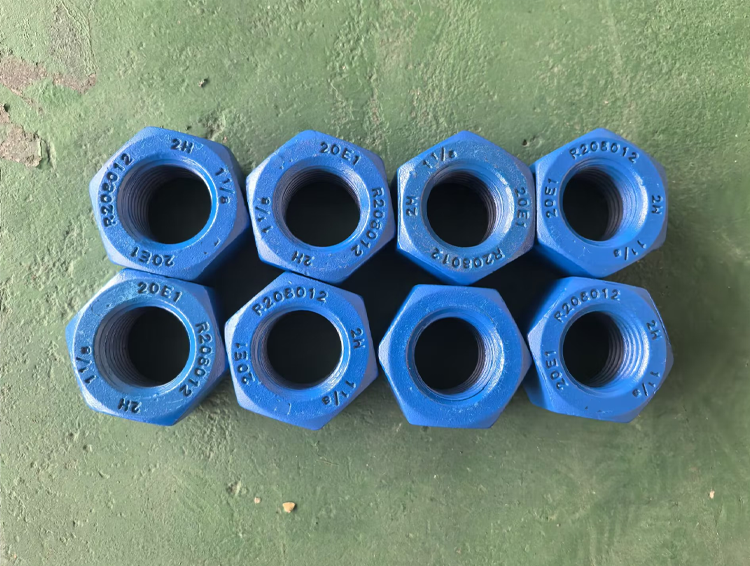

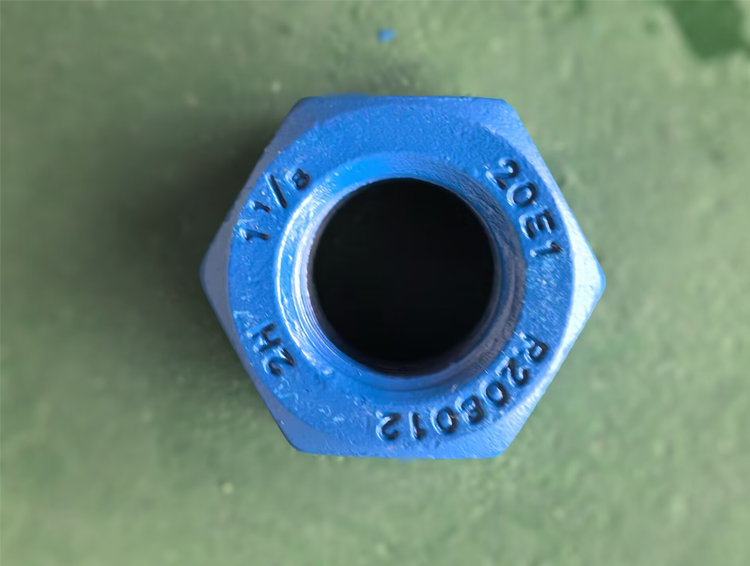

1 1/8-8 A194 2H HEAVY HEX NUT, TEFLON

Category: Bolts and Nuts Tag: Bolt nut

Description
Reviews (0)

1 1/8-8 A194 2H HEAVY HEX NUT, TEFLON

ASTM A194	This specification covers a variety of carbon, alloy, and martensitic stainless steel nuts in the size range 1⁄4 through 4 in. and metric M6 through M100 nominal. It also covers austenitic stainless steel nuts in the size range 1⁄4 in. and M6 nominal and above. These nuts are intended for high-pressure or high temperature service, or both. Grade substitutions without the purchaser’s permission are not allowed.
ASME B18.2.2	Covers the complete general and dimensional data for the various types of inch series square and hex nuts, including machine screw nuts and coupling nuts.
ASME B1.1 UNC & UNF Class 2B	Specifies the thread form, series, class, allowance, tolerance, and designation for unified screw threads.

NOMINAL SIZE (D)	BODY DIAMETER		HEAD THICKNESS		ACROSS		ACROSS
	D (MAX)	D (MIN)	H (MAX)	H (MIN)	F (MAX)	F (MIN)	C (MAX)	C (MIN)
m10	10.00	9.78	6.63	6.17	17.00	15.73	18.48	17.77
m12	12.00	11.73	7.76	4.24	19.00	17.73	20.78	20.03
m14	14.00	13.73	9.09	8.51	22.00	20.67	24.25	23.35
m16	16.00	15.73	10.32	9.68	24.00	23.67	27.71	26.75
m20	20.00	19.67	12.88	12.12	30.00	29.16	34.64	32.95
m24	24.00	23.67	15.44	14.56	36.00	35.00	41.57	39.55
m30	30.00	29.67	19.48	17.92	46.00	45.00	53.12	50.85
m36	36.00	35.61	23.38	21.63	55.00	53.80	63.51	60.79
m42	42.00	41.38	26.97	25.03	65.00	62.90	75.06	71.71
m48	48.00	47.38	31.07	28.93	75.00	72.60	86.60	82.76
m56	56.00	55.26	36.2	33.80	85.00	82.20	98.15	93.71
m64	64.00	63.26	41.32	38.68	95.00	91.80	109.70	104.65
m72	72.00	71.26	46.45	43.55	105.00	101.40	121.24	115.60
m80	80.00	79.26	51.58	48.42	115.00	111.00	132.72	126.54
m90	90.00	89.13	57.74	54.26	130.00	125.50	150.11	143.07
m100	90.00	99.13	63.9	60.10	145.00	140.00	167.43	159.60
