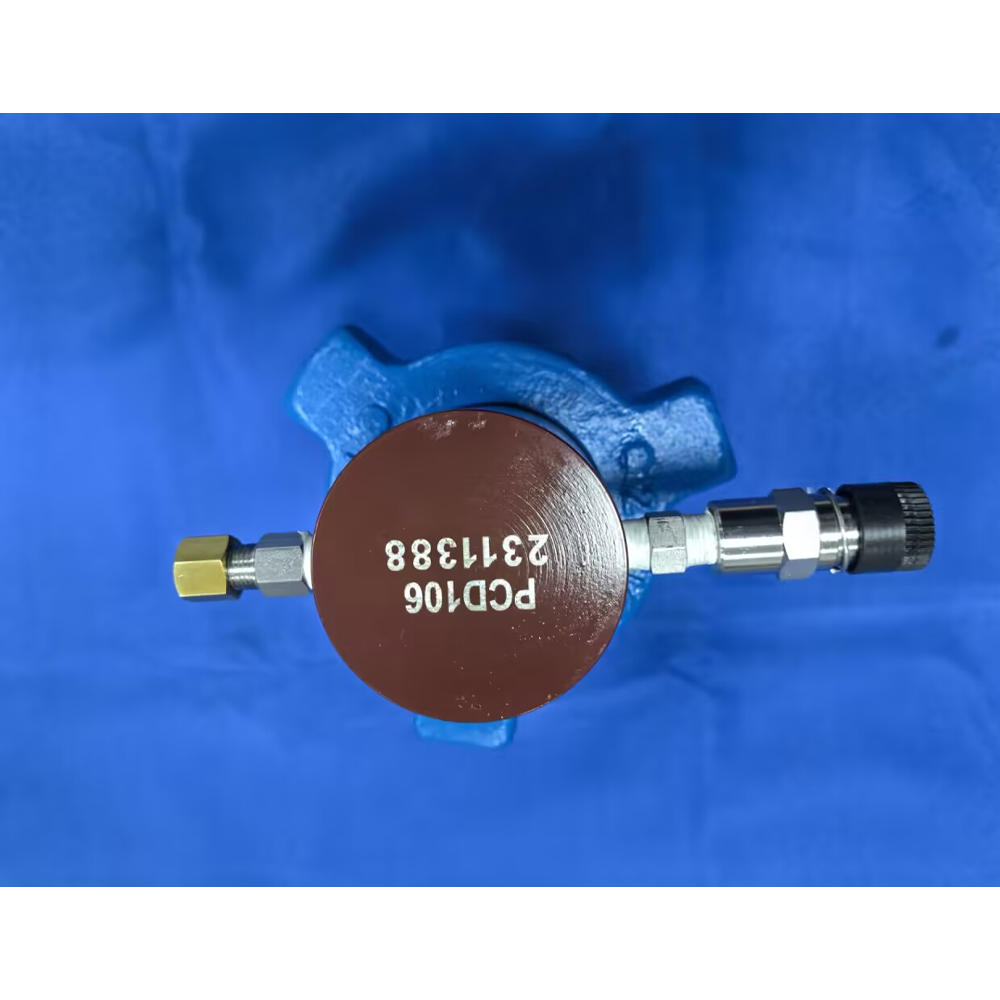

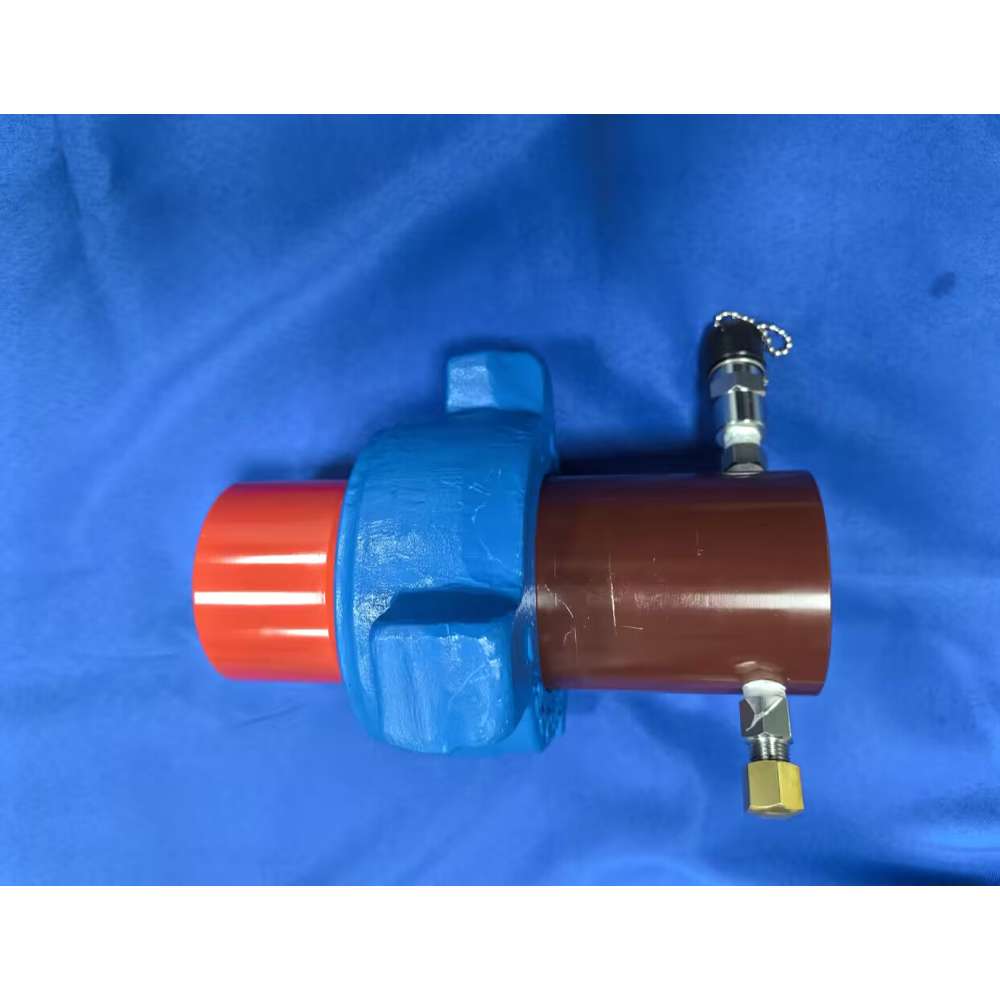

CD106 type pressure sensor

CD106X type pressure sensor is primarily utilized for pressure monitoring in oil and mud pipelines, as well as long-distance pressure measurement. It features a diaphragm that is separated from the clean hydraulic oil filling, ensuring that external media cannot enter the cylinder. This design makes it suitable for use in harsh environments such as mud applications. The maximum working pressure of this sensor can reach up to 103.4MPa; however, we recommend avoiding excessive usage above 70MPa to prolong the lifespan of the diaphragm.

Features:

• Designed to reduce line pressure by a ratio of 4:1, making for a safer work environment
• 10,000 psi, 15,000 psi and 20,000 psi
• Available with 1502 or 2202 union and subs for standard or H2S service
• Delivers a highly accurate reading, up to 2 percent of full-scale capacity
• Includes separator and union boot
• Compatible with any standard pressure gauge calibrated for use with 4:1 deboosters
• Built with universal for quick field repair

Specifications:

• Reduces line pressure by a ratio of 4:1 (75%).
• Models available for a range of maximum incoming working pressures (psi):
• Can measure from ranges of up to 100 feet
• Operational in temperatures of -35 to 150 degrees Fahrenheit.
