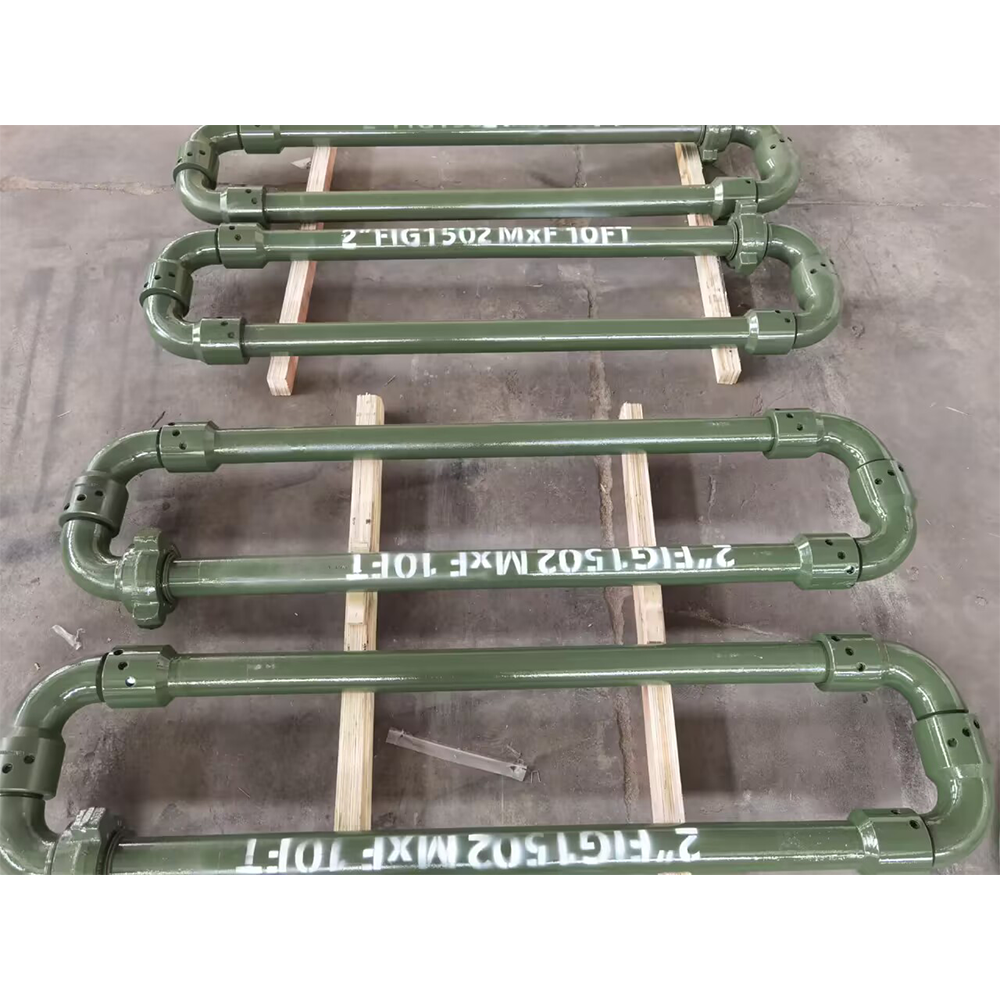

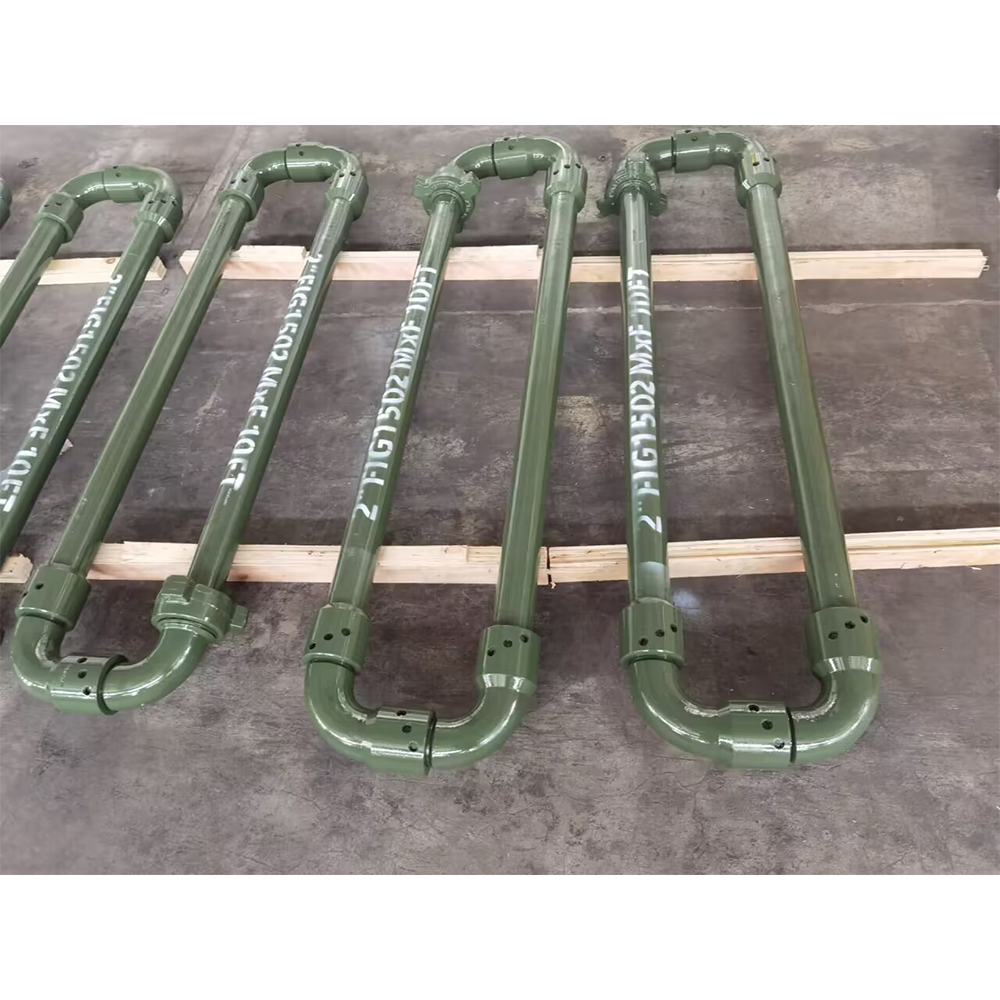

Hose loop – Cementing and Circulating Hose Loop

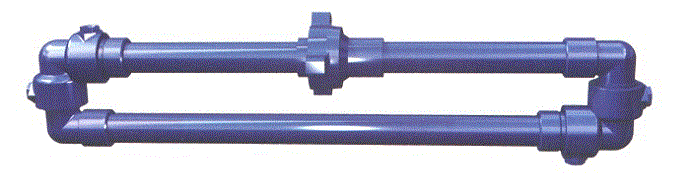

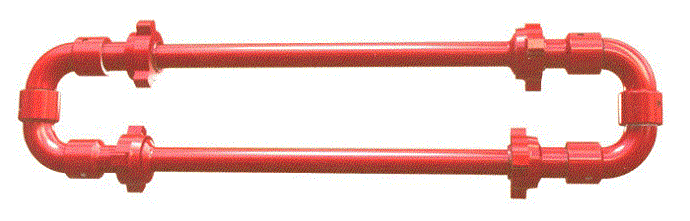

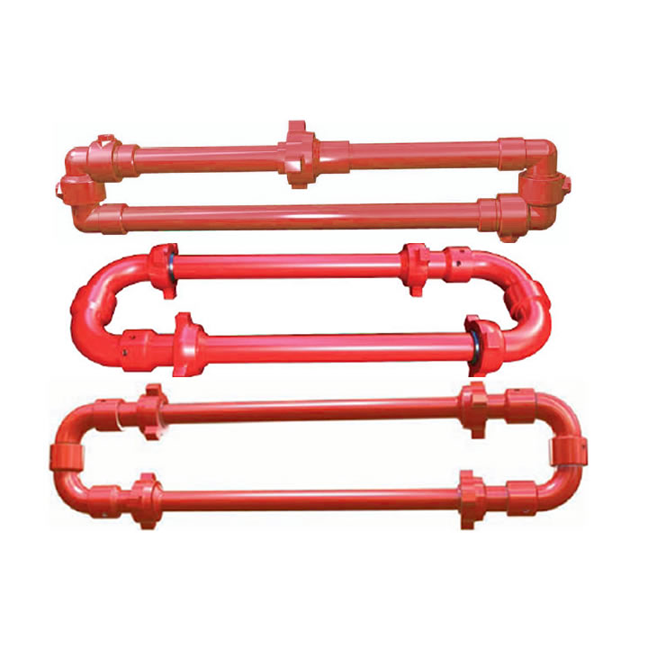

Hose loops – Cementing and Circulating Hose Loop includes long radius and short radius hose loop with size 1″,1 1/2″,2″3″ and 4″ working pressure ranging from 6,000psi – 20,000psi.

Typical Integral Construction (Chiksan® Swivel Joint)

Hose loops are used as discharge line,fluid delivery line,well testing line,cement slurry line and other delivery lines during high pressure operations, they are composed of swivel joints and straight pipe assy.,which are easy for folding,transportation and storage,featuring flexibility,shock-resistance and vibration resistance.

Typical Threaded Construction Chiksan® Swivel Joint

Product Name	Circulating Hose Loop, Chiksan Hose Loop
Material Class	AA-EE
Working Media	Crude oil and natural gas
Processing Standard	6A
Working Pressure	6000~15000psi
Nominal Bore Diameter	2”, 3”, 4”
Connection Type	fig602, fig1002, fig1502 etc.
Type	Long radius, short radius
Customized	Please provide size, type, pressure, length etc. Or drawing

Nominal Sze/ Madel	Color Coue	Cold Working Presune psi(bar)	Weco Fig.No	Swivel Joint Styles #1/#2	Methed of Constructior Lengthin Extended Condition,Weicht
					Threaded 10 f		Threaded 12ft		Inteoel95ft
					PN P/N-LT	b(kg)	P/N P/N-LT	lb(kg)	PIN P/N-LT	b(kg
1″HP	Silver	6,000(414)	602	50/50	3211995	37 (17)	3207644	41 (19)	N/A
1-12″HP	Silver	6,000(414	602	50/50	3206211	86(39)	3205870	100(45)	N/A
1-12°L5	Black	10,000(690)	1502	50/50	3264538 3264538-LT	106(48	3254780 3254780-LT	—	N/A	——
1-12°L5	Red	15,000(1034	1502	50/10	N/A	—	N/A	—	3267266	132 (60)
2″HP	Silver	6,000(414)	602	50/50	3206495	114(52)	3205876	180(820)	N/A	—
2″LS	Black	10,000(690)	1502	50/50	3144394 3144394-LT	136(62)	3144001 3144001-LT	148(67)	N/A	—
2″LS	Red	15,000(1034	1502	50/10	N/A	—	N/A	—	6102805 6102805-LT	159(72)
2″LSG	Olive Green (Sour Gas)	10,000(690)	1502	50/10	N/A	—	N/A		6102809	159(72)
3″HP	Silver	6,000 (414)	602	50/50	3247975	213 (97)	3231262	234(106)	N/A	—

Application

● Oil and Gas lines
● High-pressure well servicing lines
● Acidizing,fracturing lines and testing lines
● Crude Oil and Sour Gas, Mud.
● Manifolds and Pipelines
● Circulating lines and other well service
● Cementing and sand stimulation applications.
● Production and flushing lines,

Fetures
●Low torque operation at all pressures
● Cementing and circulation hoses provide flexibility, absorb shock and vibration, and maximize flow characteristics.
●The end connections ensure fast, pressure-tight make-up and break-out without threading, welding, or special connections.
●Permits fast, easy service at the job site. The hoses fold up easy and quickly for transportation and storage.

Note:Customer’s inquiry information shall include size,working pressure,lenght,connection type,and working condition(H2S).
