MODEL NUMBER: PSSCCH-10-2-1U-T

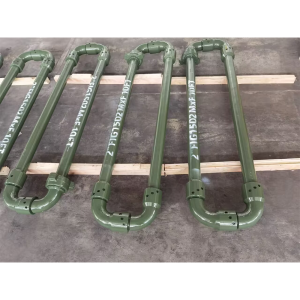

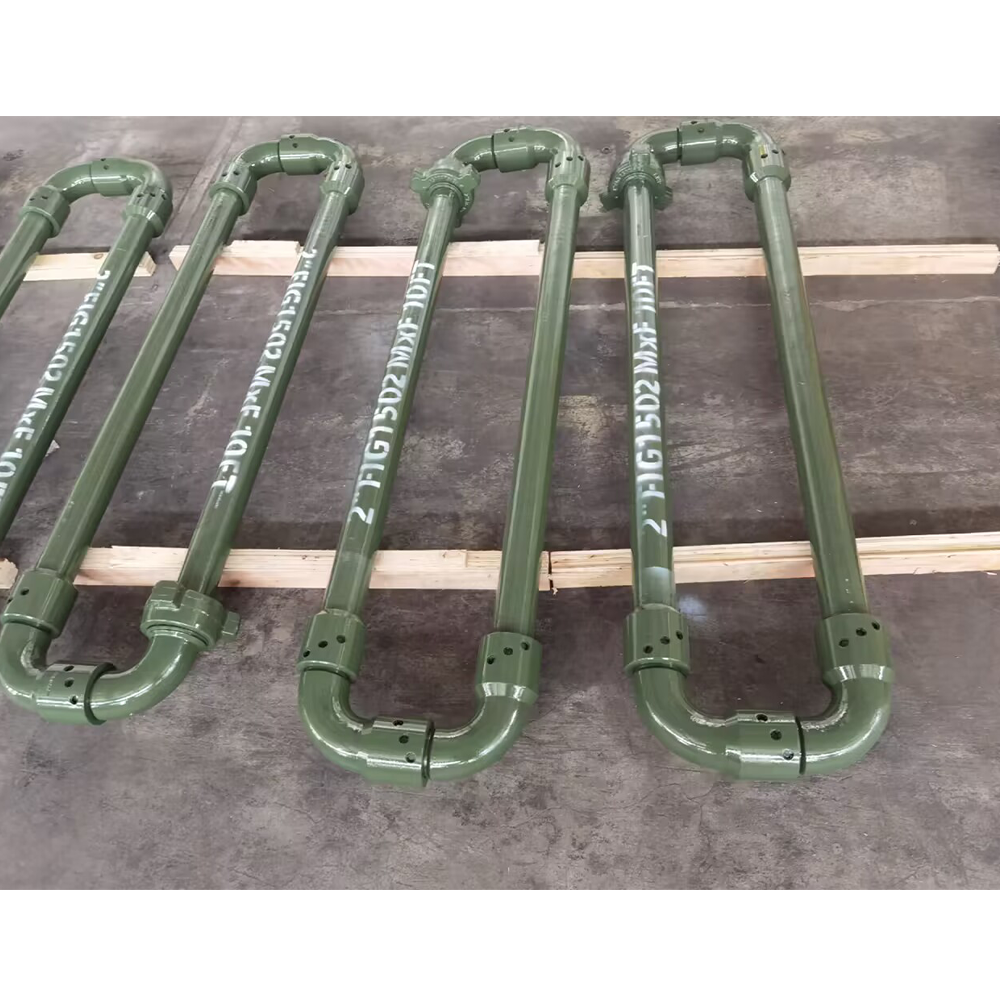

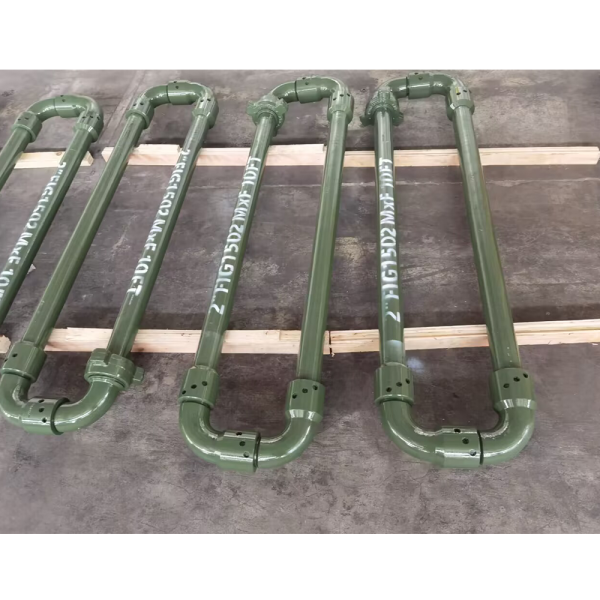

Cementing & circulating hose loop is composed of swivel joints and straight pipe, and is mainly used for transporting fluid in high pressure discharge line, well testing line, cementing slurry line and other delivery lines.

MODEL NUMBER: PSSCCH-10-2-1U-T

All petro’s typical steel Cementing & Circulating Hoses are shown below with its model numbers. These hoses have either Threaded ends or NPS or Integral or Welded ends.
Model Number indicates:
i. Type of Sweep i.e. Long Sweep or Short Sweep (i.e. LS or SS)
ii. Style of Swivel Joints used (i.e. Style 10, Style 50 or Style 10 & Style 50 both & numbers of swivel joints i.e.1 or 2)
iii. Numbers of Unions used (i.e. 1, 2 or 4 etc.
iv. Type of end connection i.e. Threaded (T), NPS (N), Integral (I) or Welded (W)
Example: Model Number PLSCCH-50-2-4U-1 indicates.
i. PLSCCH : All petro Long Sweep Cementing & Circulating Hose.
ii. 50-2 : Style 50 Swivel Joint, 2 Numbers.
iii. 4U : 4 Numbers of Union
iv. I : Integral Union End Connection

UNION (THREADED)1 NO.1 NO.2 NOS. 2 NOS.4 NOS.4 NOS.
S. JOINT (THREADED)STYLE-50 (2 NOS.)STYLE- 10 (2 NOS.)STYLE-50 (2 NOS.) STYLE- 10 (2 NOS.)STYLE-50 (2 NOS.)STYLE- 10 (2 NOS.)
MODEL NUMBER.PSSCCH-50-2-1U-TPSSCCH-10-2-1U-TPSSCCH-50-2-2U-T PSSCCH-10-2-2U-TPSSCCH-50-2-4U-TPSSCCH-10-2-4U-T
