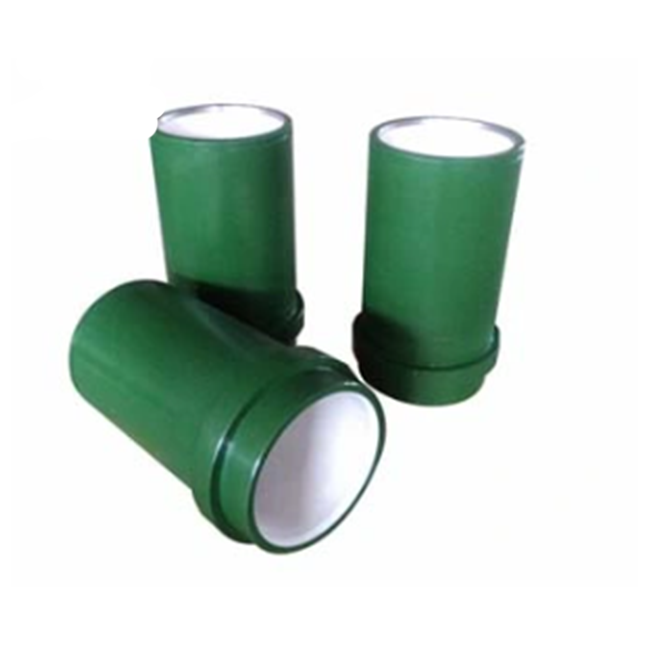

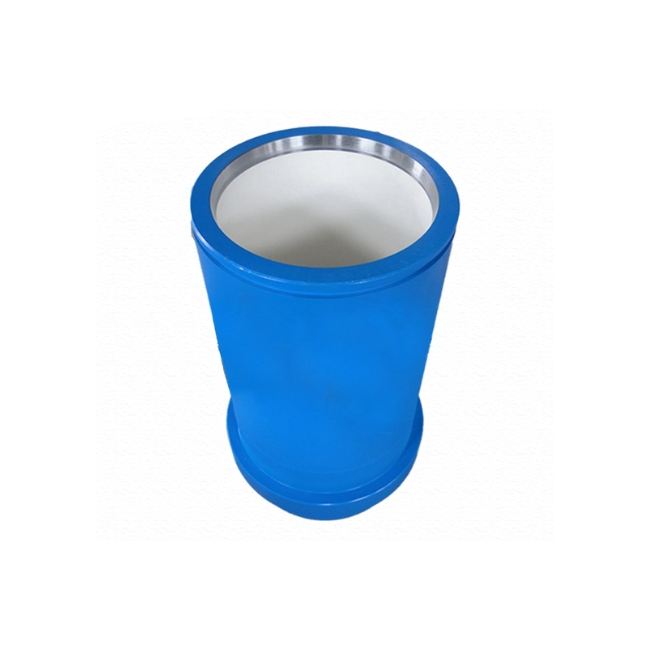

Ceramic Liners are made of a ceramic inner sleeve and a forged steel outer shell. The service life of ceramic liners is about 4000 to 10000 hours, the minimum time is at least 2000 hours, which is a lot more than bi-metal liners. Because of the phase transformation toughen technology, the ceramic liners have the features of wear-resistance, erosion-resistance, high-pressure-resistance, high hardness and strength. Zirconia type and Alumina type are common type of ceramic sleeve. Compared with Alumina type, Zirconia type liners have better toughness properties and a much longer service life. Piston wear and water consumption for lubrication can be reduced as well.
| BOMCO | F-500 | F-800 | F-1000 | F-1300 | F-1600 | F-1600HL | F-1600L | F-2200HL |
|---|---|---|---|---|---|---|---|---|
| Hong Hua | HHF-500 | HHF-800 | HHF-1300 | HHF-1600 | 3NB-1600F | 5NB-1600 | 5NB-2400 | |
| HRSB | RSF-1300 | RSF-1600 | ||||||
| RG | RGF-800 | RGF-1000 | RGF-1300 | RGF-1600 | ||||
| Lanzhou | 3NB1000C | 3NB1300C | 3NB1600F | 3NB1600L | ||||
| EMSCO | F-500 | F-800 | F-1000 | F-1300 | F-1600 | FD-1000 | FC-2200 | FB-1300 |
| Gardner Denver | PAH | P7 | P8/9 | P10/11 | ||||
| National | 7-P-50 | 8-P-80 | 9-P-100 | 10-P-130 | 12-P-160 | 14-P-200 | 14-P-220 | |
| Oilwell | A-850-PT | A-1100-PT | A-1400-PT | A-1700-PT | ||||
| TSC | WF-500 | WF-800 | WF-1000 | WF-1300 | WF-1600 | WF-2000 | WF-2200 | |
| IDECO | T-500 | T-800 | T-1000 | T-1300 | T-1600 |
