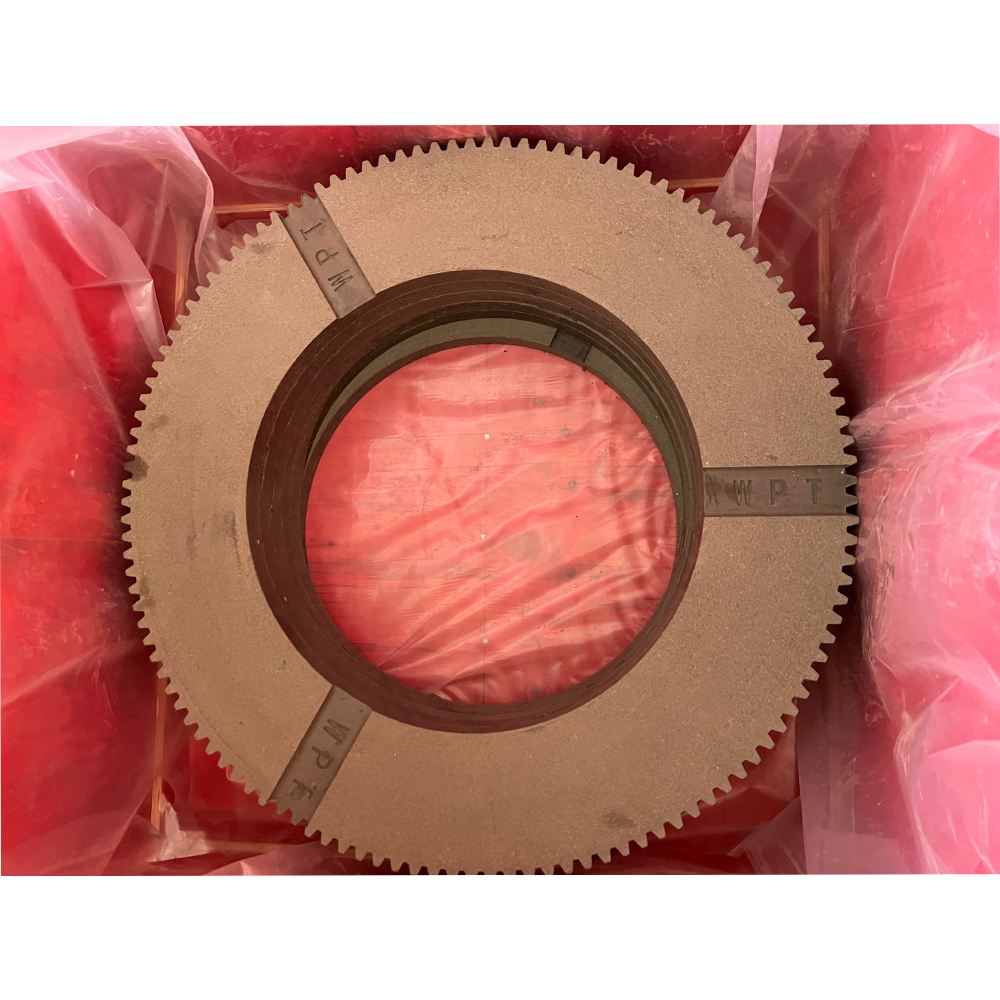

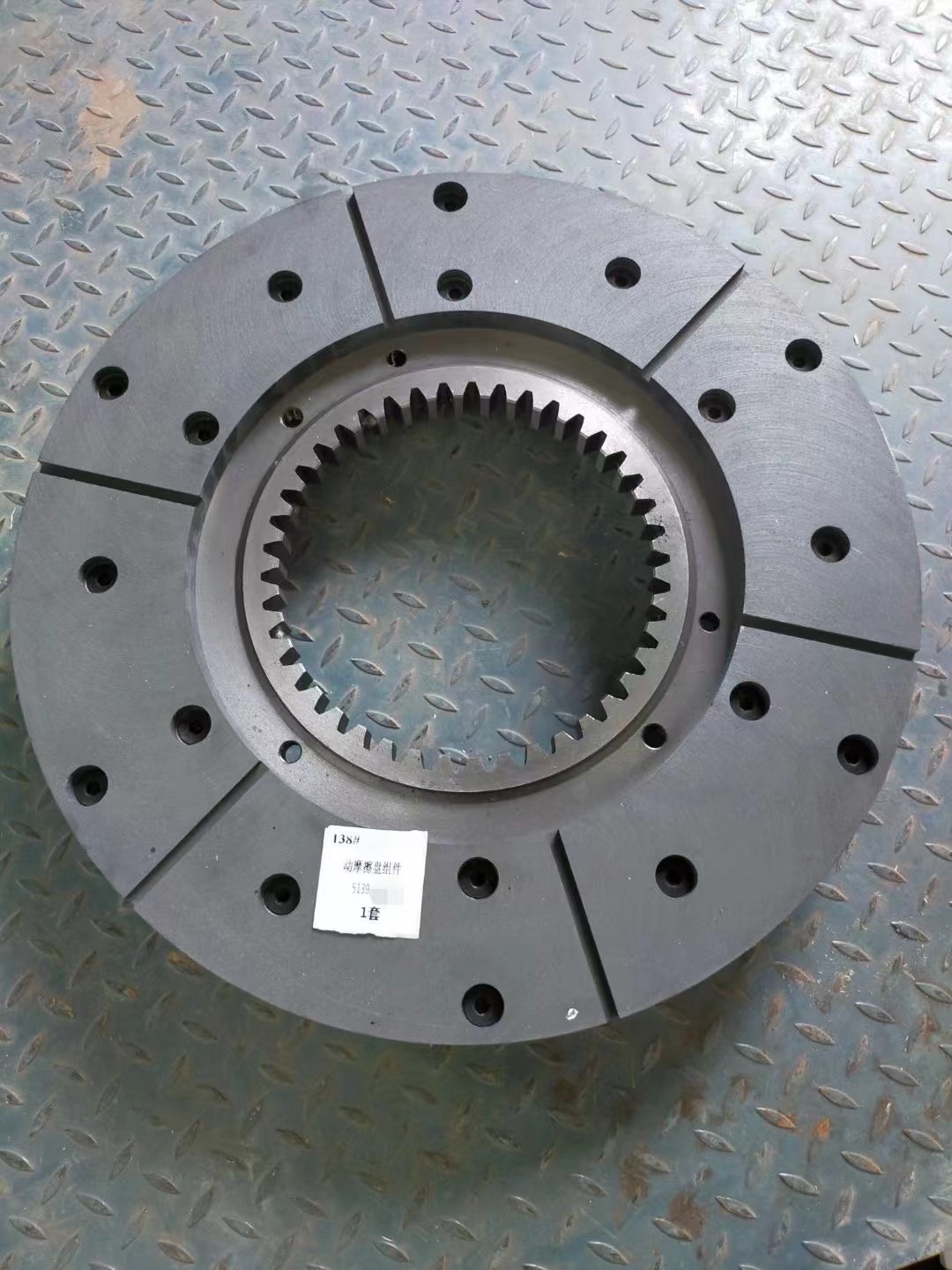

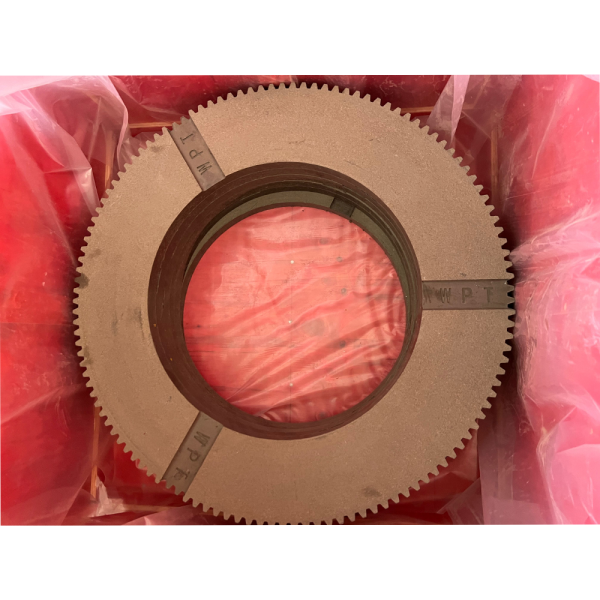

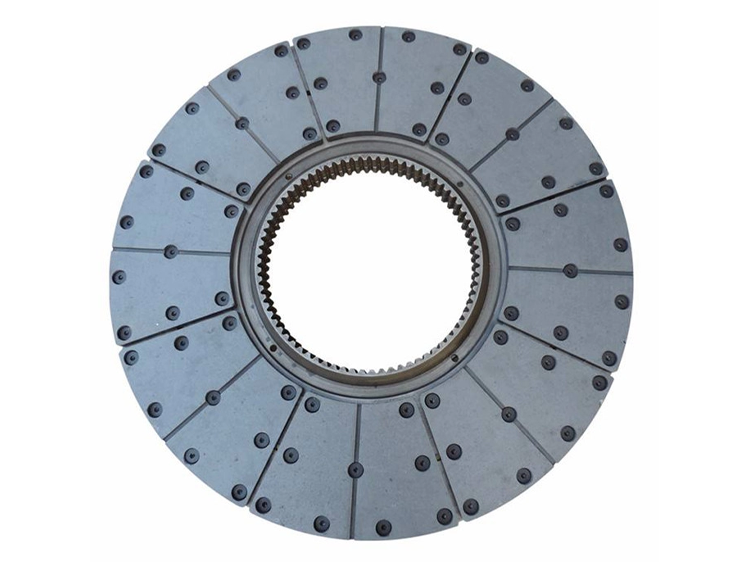

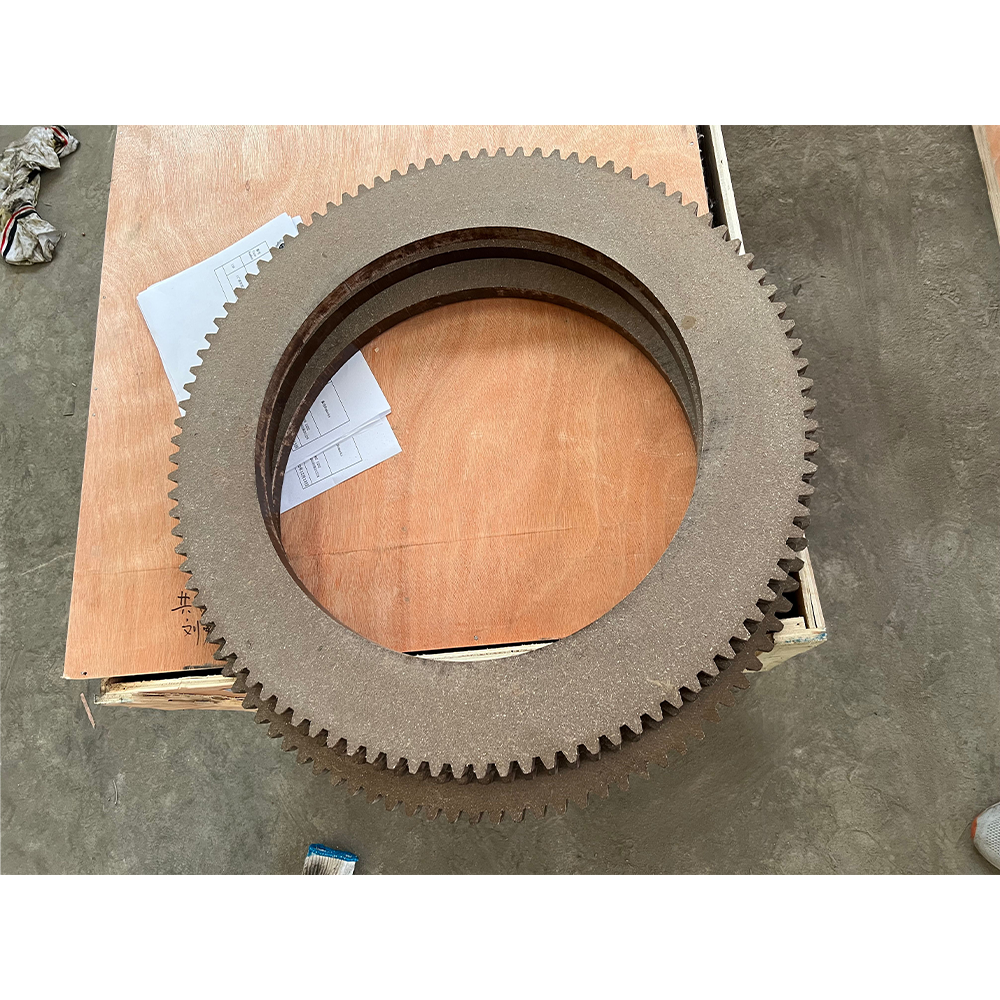

Clutch Disc Plate Drawworks Disc Brakes Spare Parts

Category: Tag:
Friction Clutch description of Drawworks Parts Size: 8“~36” Pressure: 25PSI Material: Copper alloy Type: single disc units, multi-disc units Speed:475-3580 RPM Apply to the brake system for oil and gas drilling rigs
TABLE 8 Maximum Disc Speeds
SizeMax.Slip Speed RPMMax.Disc Speed RPM
8WCB21503580
14WCB12602045
18WCB9551600
24WCB7151200
36WCB475700
Table 9 Socket size and depth
ModelNut SizeSocket Depth
108

3/4″		1 3/8″
2081 1/2″
114

1 1/16″		1 1/2″
2142 1/8″
1182
1 1/16″		1 3/4″
2182 3/8″
3182 1/4″
124



1 5/8″		1 3/4″
2242 1/4″
3246 5/8″
4247 1/8″
136


2″		3 1/4″
2364″
3365 1/2″
4366 1/5″
