Crossover Adapter

Crossover Adapters are available in various configurations which can include flanges, quick unions and thread connections.

Crossover Adapters are available in various configurations which can include flanges, quick unions and thread connections. Flange Size: 1-13/16″, 2-1/16″, 2-9/16″, 3-1/16″, 3-1/8″, 4-1/16″, 5-1/8″ or Customized Weco Size: 1″, 2″, 3″, 4″ Weco Connection: Fig 1502, Fig 602, Fig 1002 Working Pressure: 2000PSI, 3000PSI, 5000PSI, 10000PSI, 15000PSI Material: AISI 4130(integral forged) H2S NACE MR 0175, SUS304, SUS316 or as per customers’ requirements Temp Class: L-U Material Class: BB, CC, DD, EE, FF Product Specification Level: PSL1, PSL2, PSL3, PSL4 Performance Requirement: PR1, PR2 Standards: 6A, NACE MR0175, ISO 9001, ISO14001
  • Sizes: 2” – 4”
  • Pressure: 10,000 – 15,000 PSI NSCWP
  • End Connections: Figure 1502 Male, Figure 1502 Female

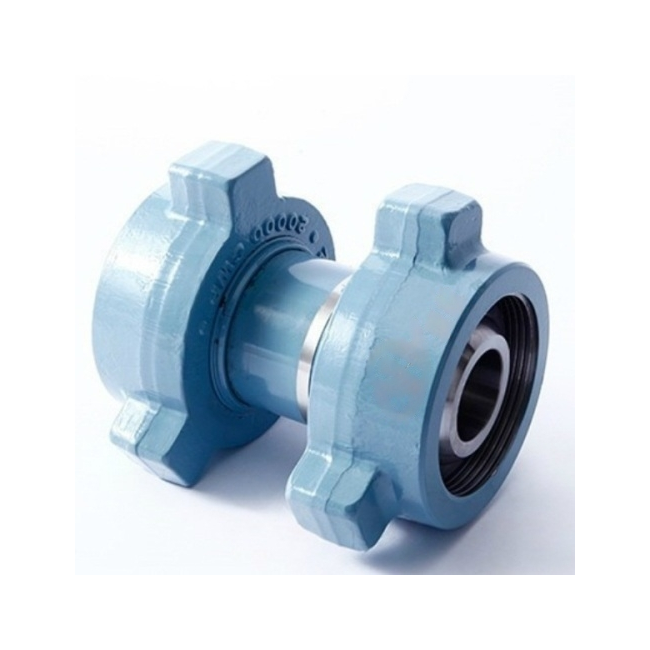

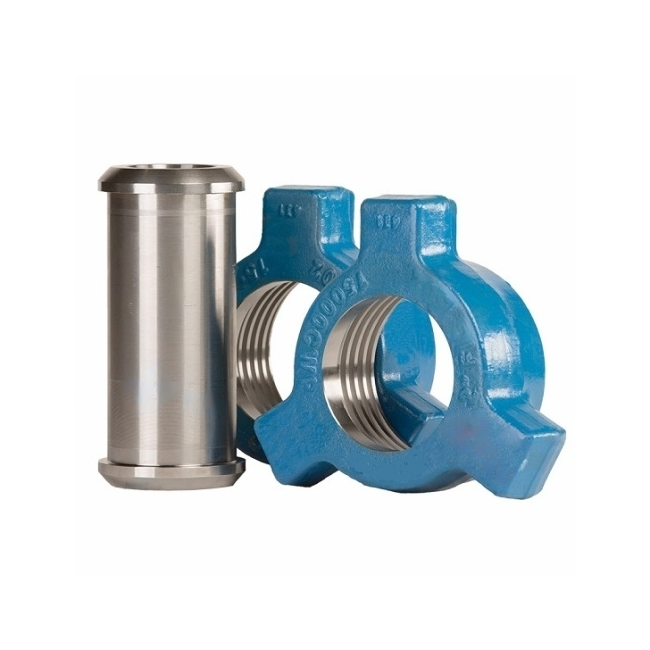

  • 2″ Figure 1502 Female x Female is pictured
  • Additional sizes, connections and pressure are available
  • Sizes: 2” – 4”
  • Pressure: 10,000 – 15,000 PSI NSCWP
  • End Connections:
    • Figure 1502 Male and Female Hammer Union Connections
    • EUE (8 Round)
    • NPT

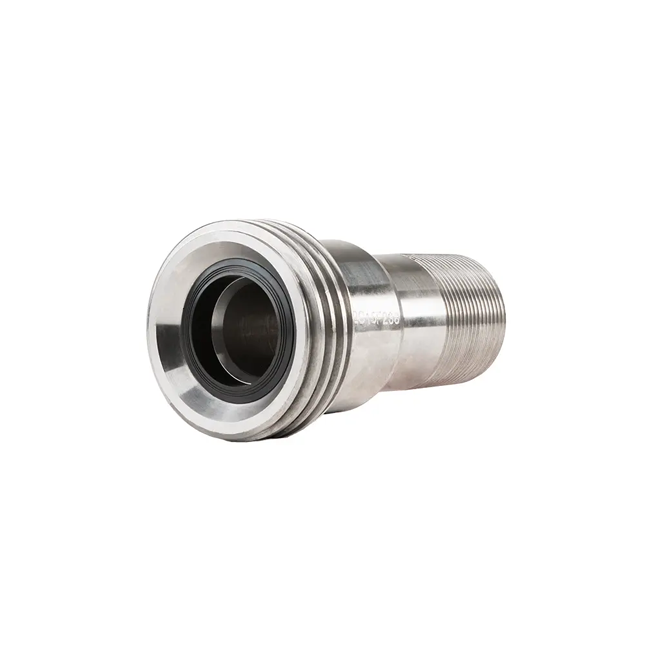

  • 3″ Figure 1502 Female x 2″ NPT is pictured
  • Other sizes, connections, and pressures are available
  • Sizes: 2” – 4”
  • Pressure: 10,000 – 15,000 PSI NSCWP
  • End Connections:
    • Figure 1502 Male and Female Hammer Union Connections
    • Figure 1002 Male and Female Hammer Union Connections
    • NPT, EUE (8 Round)

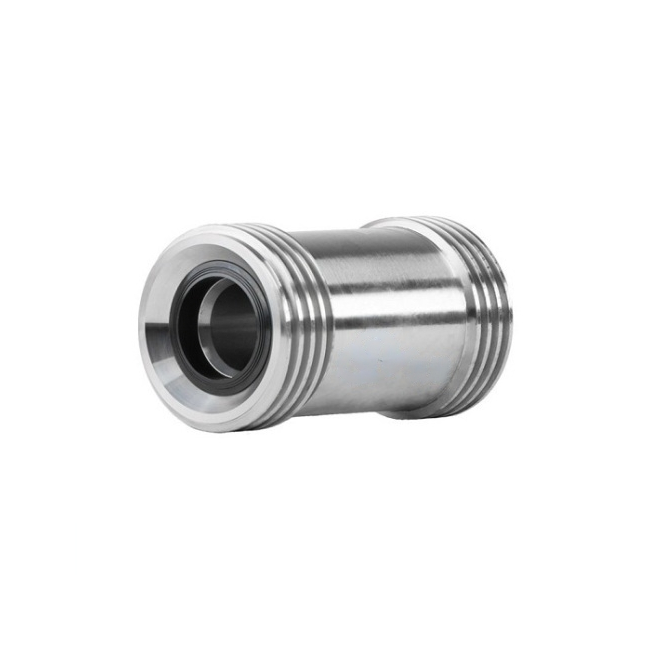

  • 2″ Figure 1502 Male x Male configuration is pictured
  • Additional sizes, connections, and pressure made to order
  • Sizes: 2” – 4”
  • Pressure: 10,000 – 15,000 PSI NSCWP
  • End Connections:
    • Figure 1502 Male and Female Hammer Union Connections
    • EUE (8 Round)
    • NPT

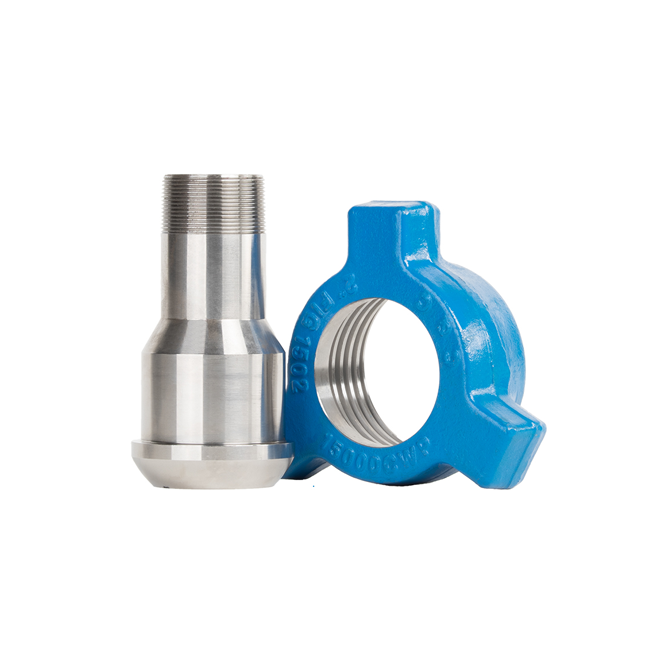

  • 2″ Figure 1502 Male x 2″ EUE is pictured
  • Other sizes, connections, and pressures are available
  • Sizes: 2” – 4”
  • Pressure: 10,000 – 15,000 PSI NSCWP
  • End Connections: Figure 1502 Male, Figure 1502 Female

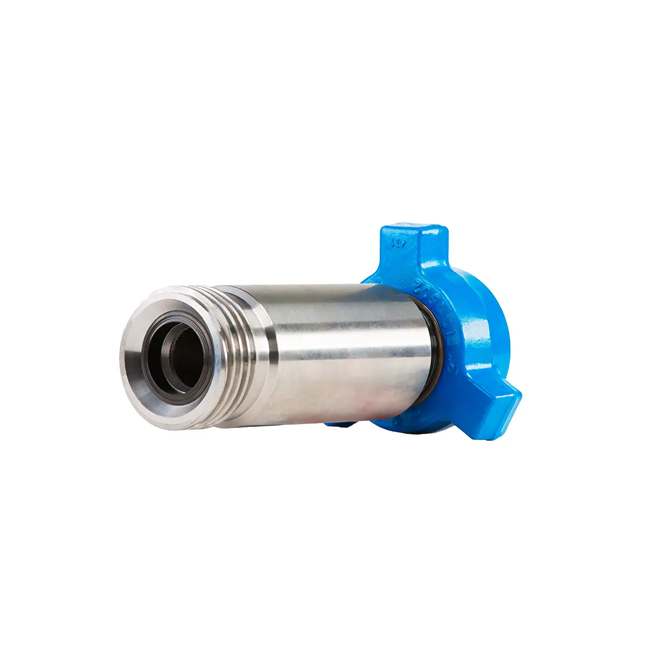

  • 3″ Figure 1502 Male x Female configuration is pictured
  • Additional sizes, connections, and pressure made to order
