Deadline Anchor

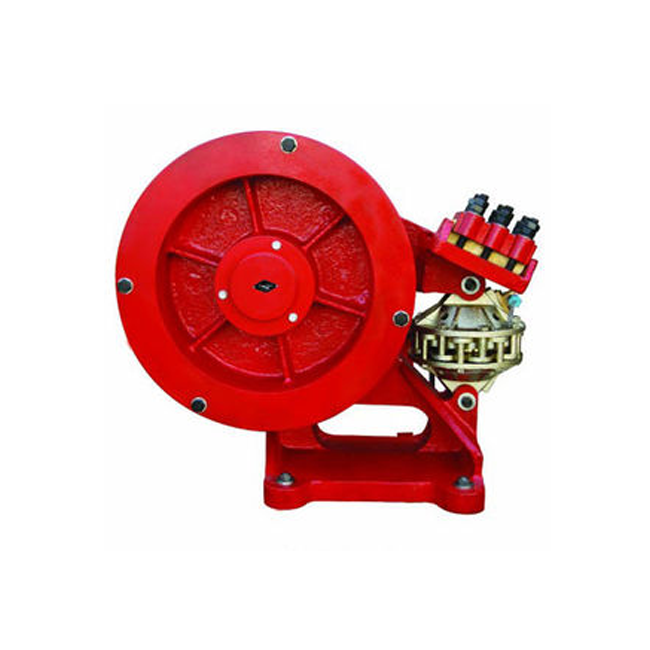

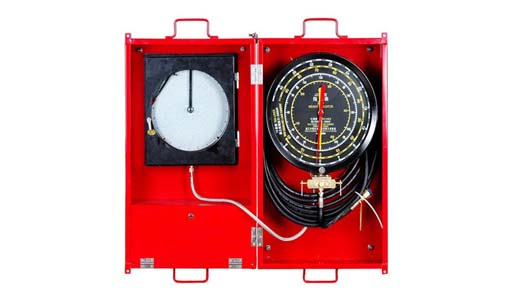

Deadline anchor is used as a display instrument for indicating and recording the drilling string changes in weight and pressure, helping the driller to master the working parameter and judge the drilling state in drilling operation. It’s mainly composed two parts: Body and Senor. It work together with the Weight indictor.

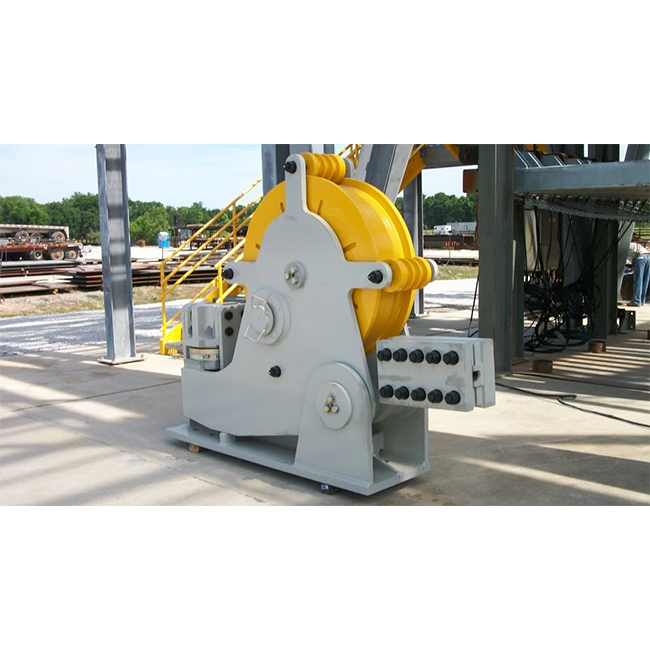

Deadline anchors work for drilling rigs and workover rigs. Lines pull capacities from 30.000 pounds to 100.000 pounds. It can indicate and record the variation of hook load and weigh on bit in order to help driller judge the operation Status of the rig and obtain the proper drilling parameters during or well service operation.

Drilling Rig Spare Parts Deadline Anchors Features

– Various models available for deadline loads up to 200,000 pounds
– Single line pull capacities from 30,000 to 100,000 pounds to accommodate all your needs
– Bit weight indicator uses a 4:1 sensitivity movement to provide a highly accurate indication of bit weight
– Models available in a variety of sizes-from light weight models for mounting on wheel-mounted rigs and on helicopter rigs

– Max deadline load(Line pull capacity): 180 kN / 40 kLB.
– With hydraulic load sensor.
– Constructed with top-quality steel and proof-tested to 150% of rated capacity.
– Accommodate wireline sizes 1″, 1-1/8″ or specify.

– Designed and tested for high strength, long life and exceptional accuracy.
– Floor mount.

– In accordance with API standards. Pass API 8C Certificate, API ISO9001:2000 Certificate, API Q1 Certificate, API TS 29001 Certificate.

Deadline Model Weight indicator
Model
Max. Deadline Pulling Force(kN) Qty of the line Capacity
(kN)
Output pressure sensor
(MPa)

Vertical

JZG42 JZ500 420 12 5040 6
10 4200
JZG35 JZ400 350 12 4200
10 3500
JZG24 JZ250 340 10 2880
8 2400
JZG20 JZ200 200 10 2000
8 1600
JZG18A JZ150A 180 10 1800
8 1440
6 1080
JZG15A JZ100A 150 6 1200
4 900

Horizontal

JZG41 JZ500A 410 12 4920 6.83
10 4100
JZG34A JZ400B 340 12 4080 6
10 3400
JZG18 JZ150 180 8 1440
6 1080
JZG15 JZ100 150 8 1200
6 900
JZG10A JZ40 100 6 600
4 400
We can designed as your request.
