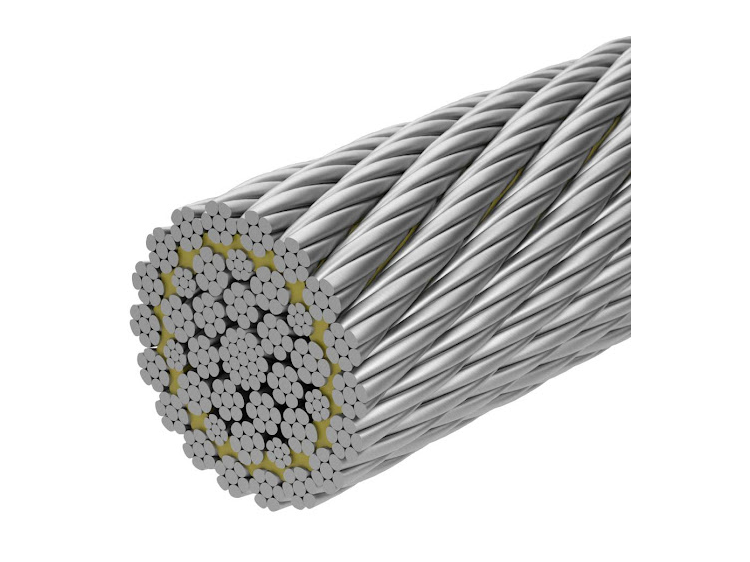

Drawworks Parts Wire Rope
Drilling line for oilfield usage is manufactured according to API 9A specification.
We can providfe you steel wire rope drilling line with high strength, long time service life, galvanized or non-galvanized, etc
| Nominal diameter | Reference weight | Nominal Tensile Strength/MPa | |||||
|---|---|---|---|---|---|---|---|
| 1770 | 1960 | 2160 | IPS | EIP | EEIP | ||
| /mm | kg/100m | Minimum breaking force/kN | |||||
| 12.7 | 64.5 | 102 | 113 | 124 | 102 | 118 | 130 |
| 13 | 67.6 | 106 | 118 | 130 | 107 | 124 | 136.2 |
| 14.3 | 81.8 | 129 | 143 | 157 | 129 | 149 | 165 |
| 16 | 102 | 161 | 179 | 197 | 159 | 185 | 204 |
| 18 | 130 | 204 | 226 | 249 | 202 | 233 | 257 |
| 19 | 144 | 227 | 252 | 278 | 226 | 259 | 285 |
| 20 | 160 | 252 | 279 | 308 | 250 | 287 | 316 |
| 22 | 194 | 305 | 338 | 372 | 302 | 348 | 383 |
| 24 | 230 | 363 | 402 | 443 | 358 | 412 | 453 |
| 25.4 | 258 | 407 | 450 | 496 | 399 | 460 | 506 |
| 26 | 270 | 426 | 472 | 520 | 418 | 481 | 529 |
| 28 | 314 | 494 | 547 | 603 | 483 | 555 | 610 |
| 28.6 | 327 | 515 | 571 | 629 | 503 | 578 | 636 |
| 31.8 | 404 | 637 | 706 | 778 | 617 | 711 | 782 |
| 32 | 410 | 645 | 715 | 787 | 625 | 720 | 792 |
| 34.9 | 487 | 767 | 850 | 937 | 743 | 854 | 943 |
| 35 | 490 | 772 | 855 | 942 | 747 | 859 | 948 |
| 36 | 518 | 817 | 904 | 997 | 789 | 906 | 999 |
| 38 | 578 | 910 | 1010 | 1110 | 876 | 1010 | 1110 |
| 38.1 | 581 | 915 | 1010 | 1120 | 880 | 1010 | 1110 |
| 40 | 640 | 1010 | 1120 | 1230 | 962 | 1100 | 1220 |
| 41.3 | 682 | 1080 | 1190 | 1310 | 1020 | 1170 | 1300 |
| 44 | 774 | 1220 | 1350 | 1490 | 1150 | 1330 | 1470 |
| 44.5 | 792 | 1250 | 1380 | 1520 | 1180 | 1360 | 1500 |
| 45 | 810 | 1280 | 1410 | 1560 | 1210 | 1390 | 1530 |
| 48 | 922 | 1450 | 1610 | 1770 | 1370 | 1580 | 1740 |
