Drilling Rig Hydraulic Steel Wire Mesh Filter

Category: Tag:

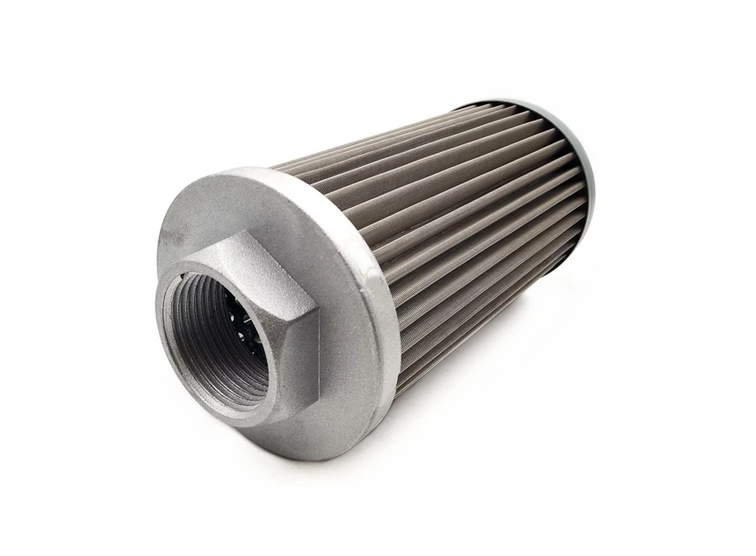

Drilling Rig Hydraulic Oil Suction Filter

Hydraulic oil filter filters out solid particle contaminants in the oil, so that the pollution degree of the oil is controlled within the limits of the critical hydraulic components, ensuring system purification, improving system reliability and extending equipment service life.

Oil Filter Element Features of Drilling Rig Spare Parts
High oil flow rate
Low flow resistance
High dust holding capacity
Heavy duty construction
Great with synthetic or conventional oil
Good temperature resistance
Good anti-humidity performance
Durable and long lifespan
Economical, practical and easy to install
MaterialGlass-fiber
Filter mediaFilter element adopts many kinds of materials, such as glass fiber, wood pulp filter paper , stainless steel sinter fiber web and
stainless steel wire woven.
Nominal filtration rating0.01μ ~ 1000μ
Operating pressure21bar-210bar (Hydraulic Liquid Filtration)
Filtration precision1um~100um
Working pressure21bar~210bar
Sealing materialnitrile rubber ring,fluorine rubber ring
O-ring materialNBR,Fluorine
Working mediumhydraulic oil
DimensionStandard
Life span2000- 4000h
Working temperature-10~+100℃

1. High-quality glass fiber filter material is used for pressure oil filtration of hydraulic and lubricating systems

to filter out pollutants in the system

2. Wide range of supply for filter, filter element and other combined filtration equipments
3. Compltely interchangeable with over 500 international brand originals
4. Very competitive price

5. Making strictly in accordance with ISO, DIN, IDF and 3A standards, quality comply with GMP requirement.

6. Imported filtration materials

7. Short delivery time
