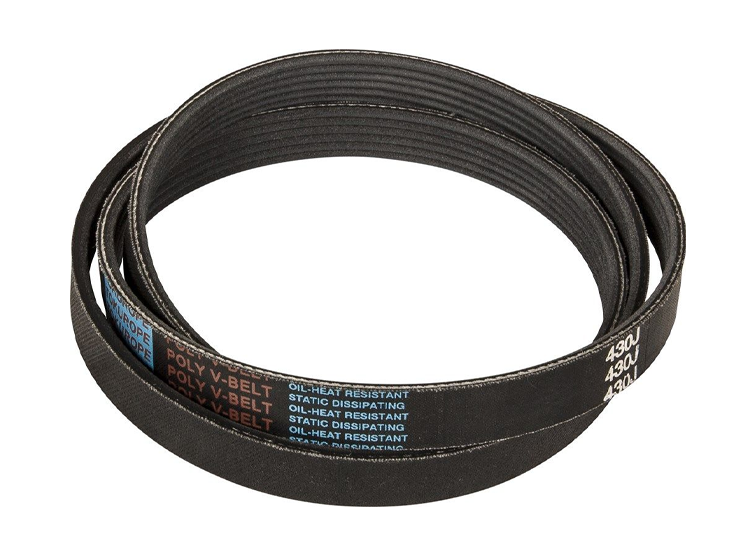

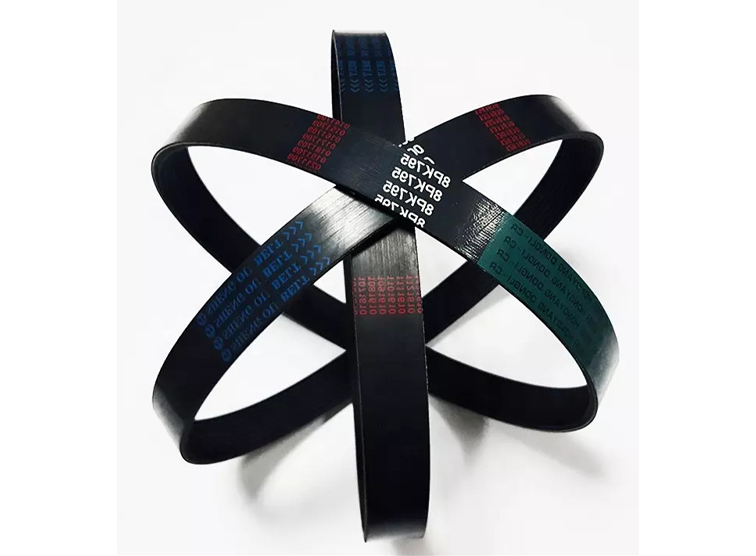

Drilling Rig Spare Parts V Belt

Category: Tag:

Common V-belt (O, A, B, C, D, E) consists of coating layer, extension layer, brute force layer, compression rubber layer and other parts, and the brute force layer is formed by multilayer cord fabric and single row polyester cotton rope, executive national
standard: GB/T1171-1996

Wedge V-belt (9N, 15N, 20N, 25N) consist of coating layer, extension layer, brute force layer, compression rubber layer and other parts, and the brute force layer is formed by multilayer cord fabric and single row polyester cord, executive national standard: GB/T12730-1991

Banded V-belt (3V, 5V, 8V), executive national standard: GB/2819-1996

SP series V-belt (A, B, C), executive national standard: GB/T11544-1989

Linked V-belt (A, B, C, D, E)

Drilling Rig Spare Parts V-Belts Features:
High transmission efficiency
Low noise
Easy clutch
High load
Good bending resistance
Fine wear resistance
Strong shock resistance
Reliable tension capacity, suitable for tensioning wheel clutch

Type Top Width (mm) Height (mm) Angle (°) Pitch Length (mm) Nominal Length (inch) Nominal Length (mm)
A 13 10 40 15 60-200 1524-5080
B 17 13 40 19 60-350 1524-8890
C 22 16 40 25.5 100-350 2540-8890
D 32 21 40 37 100-350 2540-8890
3V 9 10 40 10.3 40-140 1016-3556
5V 15 16 40 17.5 60-355 1524-9017
8V 25 25 40 28.6 100-560 2540-14224
AX 13 10 40 15 20-100 508-2540
BX 17 13 40 19 20-100 508-2540
CX 22 16 40 25.5 40-100 1016-2540
3VX 9 10 40 10.3 25-100 635-2540
5VX 15 16 40 17.5 50-100 1270-2540
