Tubing Head Adapter

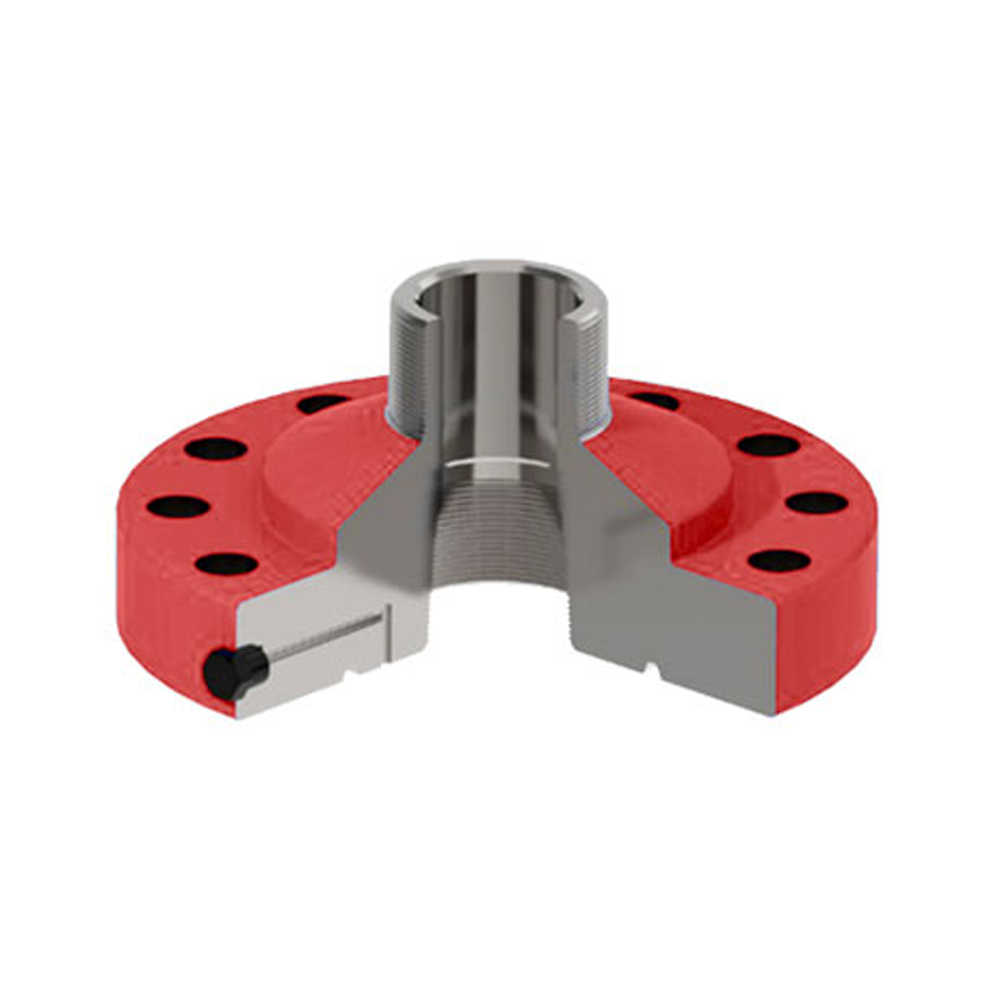

Top and bottom connections are available in various sizes. Bottom connections are flanged with EUE 8rd suspension threads. The top connection is EUE 8rd male. Manufactured according to API-6A, PSL-1, DD, L-U, PR-1.

Category: Tag:

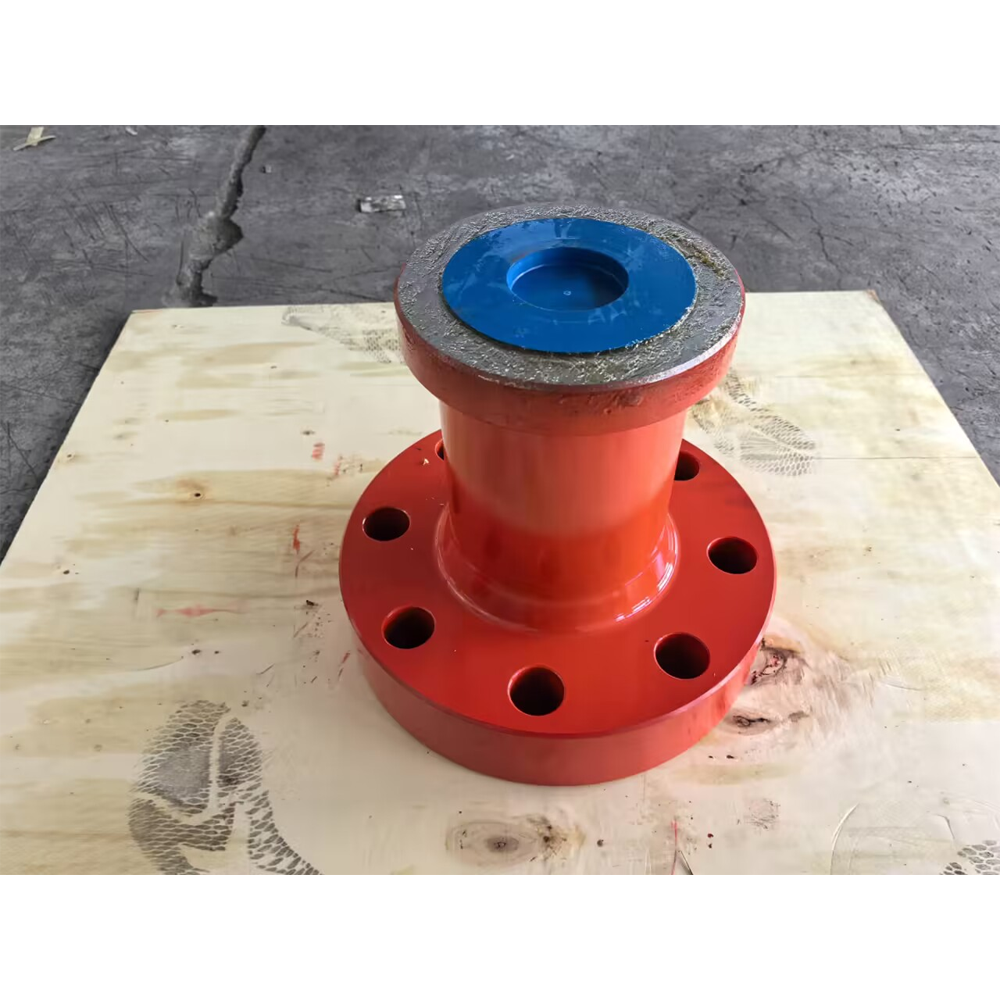

A Tubing Head Adapter, or Tubing Adapter, is an important wellhead component which is used to adapt the uppermost connection of the tubing head to the lowermost section of the christmas tree. The tubing head provides a transition from the wellhead to the christmas tree. It can be used for both single and multiple completions. Qihang’s standard tubing head adapters are compatible with a wide range of tubing head spools and tubing hangers. Our adapters come with threaded, flanged, or studded-flange top connections, and most of our tubing head adapters can be machined with a hydraulic supply inlet for downhole control lines.





Top and bottom connections are available in various sizes. Bottom connections are flanged with EUE 8rd suspension threads. The top connection is EUE 8rd male. Manufactured according to API-6A, PSL-1, DD, L-U, PR-1.

Bottom Flange Threaded Top Suspension Threads Weight
(kg)
Size
(in)		 Press.
(psi)
7.1/16” 2000 2.3/8” U PTBG 2.3/8” U PTBG 66
7.1/16” 2000 2.3/8” U PTBG 2.3/8” U PTBG 66
7.1/16” 3000 2.3/8” U PTBG 2.3/8” U PTBG 66
7.1/16” 3000 2.7/8” U PTBG 2.7/8” U PTBG 75
7.1/16” 5000 2.3/8” U PTBG 2.3/8” U PTBG 66
7.1/16” 5000 2.7/8” U PTBG 2.7/8” U PTBG 75







Top and bottom connections are available in various sizes. Bottom connections are flanged with EUE 8rd suspension threads. The top connection is studded. Manufactured according to API-6A, PSL-1, DD, L-U, PR-1.

Bottom Flange Top Connection Suspension Threads Weight
(kg)
Size
(in)		 Press.
(psi)		 Size
(in)		 Press.
(psi)
7.1/16” 3000 2.1/16” 5000 2.3/8” U PTBG 52
7.1/16” 3000 2.9/16” 5000 2.7/8” U PTBG 50
7.1/16” 3000 3.1/8” 5000 3.1/2” U PTBG 48
7.1/16” 5000 2.1/16” 5000 2.3/8” U PTBG 57
7.1/16” 5000 2.9/16” 5000 2.7/8” U PTBG 54
7.1/16” 5000 3.1/8” 5000 3.1/2” U PTBG 52

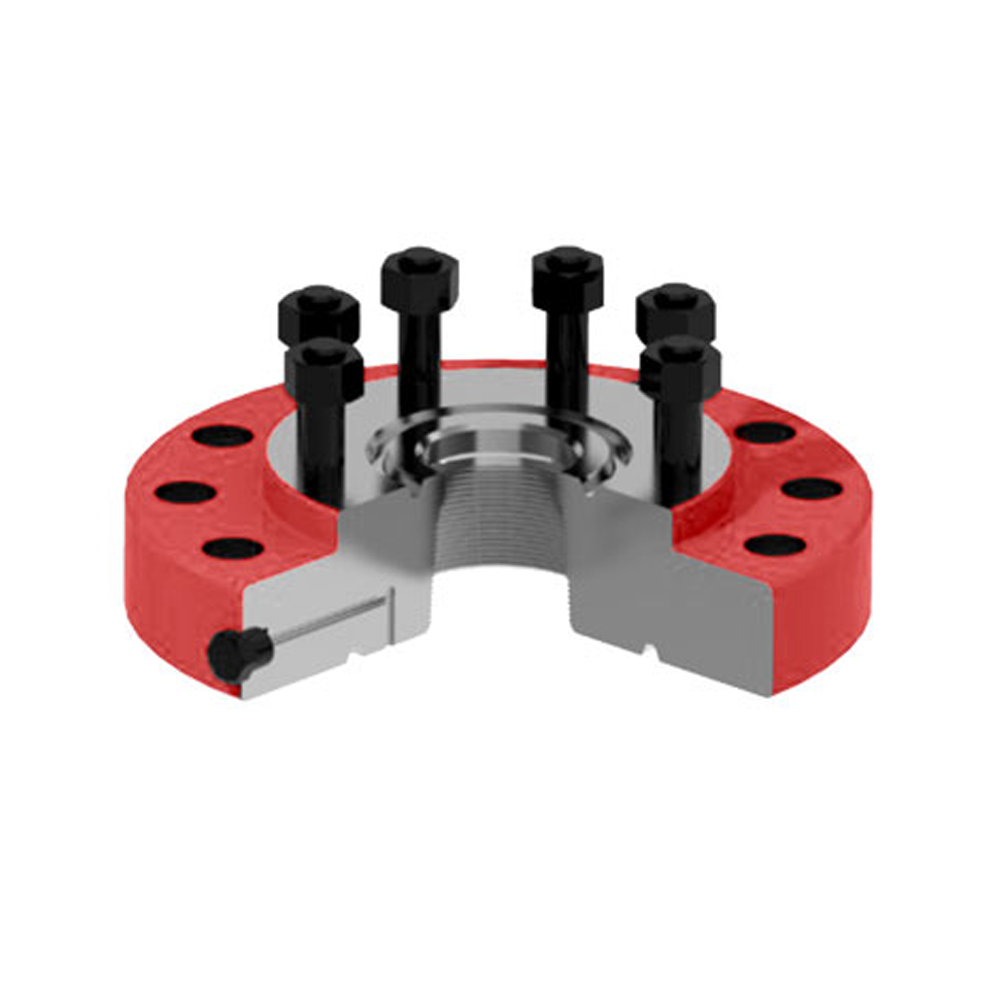

Top and bottom connections are available in various sizes. Bottom connections are flanged with an ID of 5-1/2” typically. The top connection is studded. Available with DHCL port upon request. Manufactured according to API-6A, PSL-1, DD, L-U, PR-1 (5,000psi) and API-6A, PSL-2, DD, L-U, PR-1 (10,000 psi).

Bottom Flange Top Connection Weight (kg)
Size (in) Press. (psi) Size (in) Press. (psi)
7.1/16” 5000 2.1/16” 5000 81
7.1/16” 5000 2.9/16” 5000 79
7.1/16” 5000 3.1/8” 5000 95
7.1/16” 10000 2.1/16” 10000 80
7.1/16” 10000 2.9/16” 10000 79
7.1/16” 10000 3.1/8” 10000 102

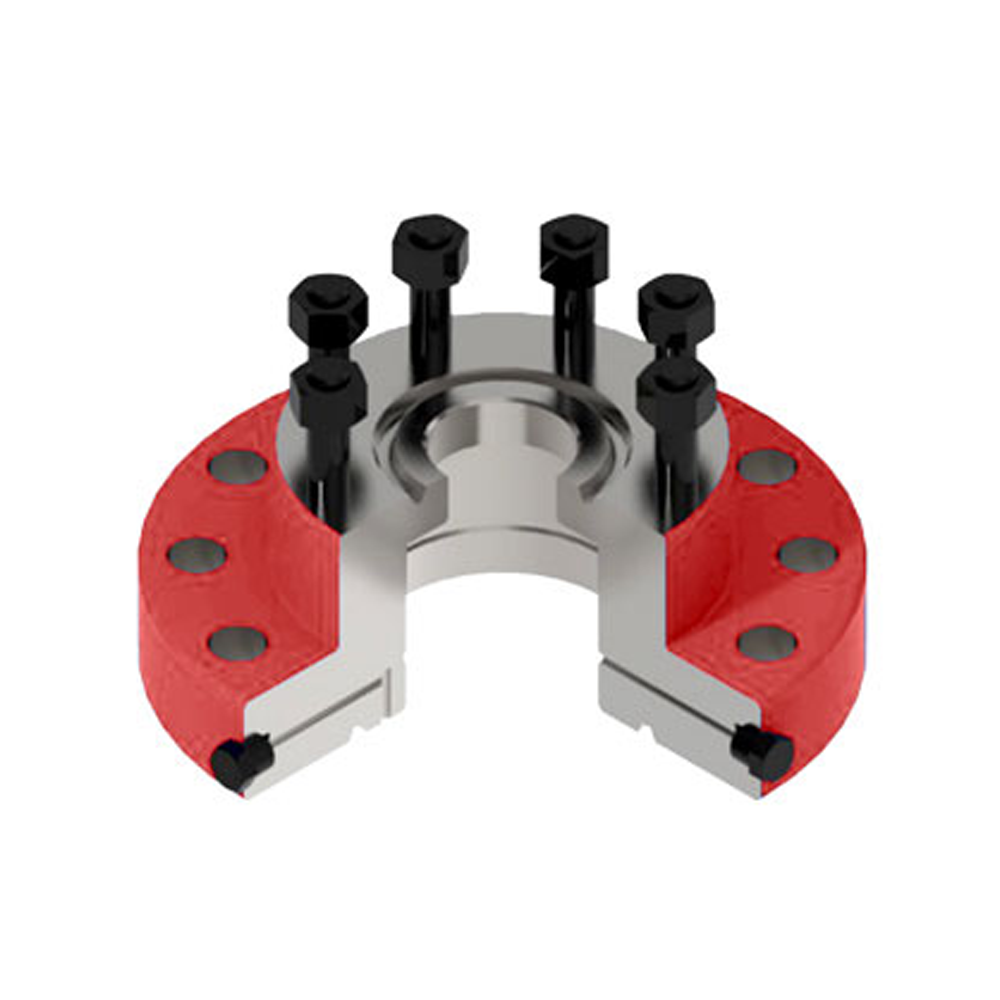

Top and bottom connections are available in various sizes. Bottom connections are flanged with 4” Acme suspension threads. The top connection is studded. Manufactured according to API-6A, PSL-1, DD, L-U, PR-1.

Bottom Flange Top Connection Weight (kg)
Size (in) Press. (psi) Size (in) Press. (psi)
7.1/16” 3000 2.1/16” 5000 91
7.1/16” 3000 2.9/16” 5000 98
7.1/16” 3000 3.1/8” 5000 102
7.1/16” 5000 2.1/16” 5000 91
7.1/16” 5000 2.9/16” 5000 98
7.1/16” 5000 3.1/8” 5000 102
