Fluid End Module

EMSCO FLUID END MODULE AND ACCESSORIES（F-350, F-500 & F-650）

Fluid end module accessories offer full lines of cylinder heads, valve lock covers, cylinder head threaded rings, cylinder head plugs, valve cover plugs, upper valve guides, lower valve guides, liner threaded rings, liner locks, wear plates and much more.

The fluid end expendables are precisely made to meet or exceed API-7K standards, and they are 100% exchangeable with OEM parts of all major pump models.

Category: Fluid End Module Tag: FLUID END MODULE

Description
Reviews (0)

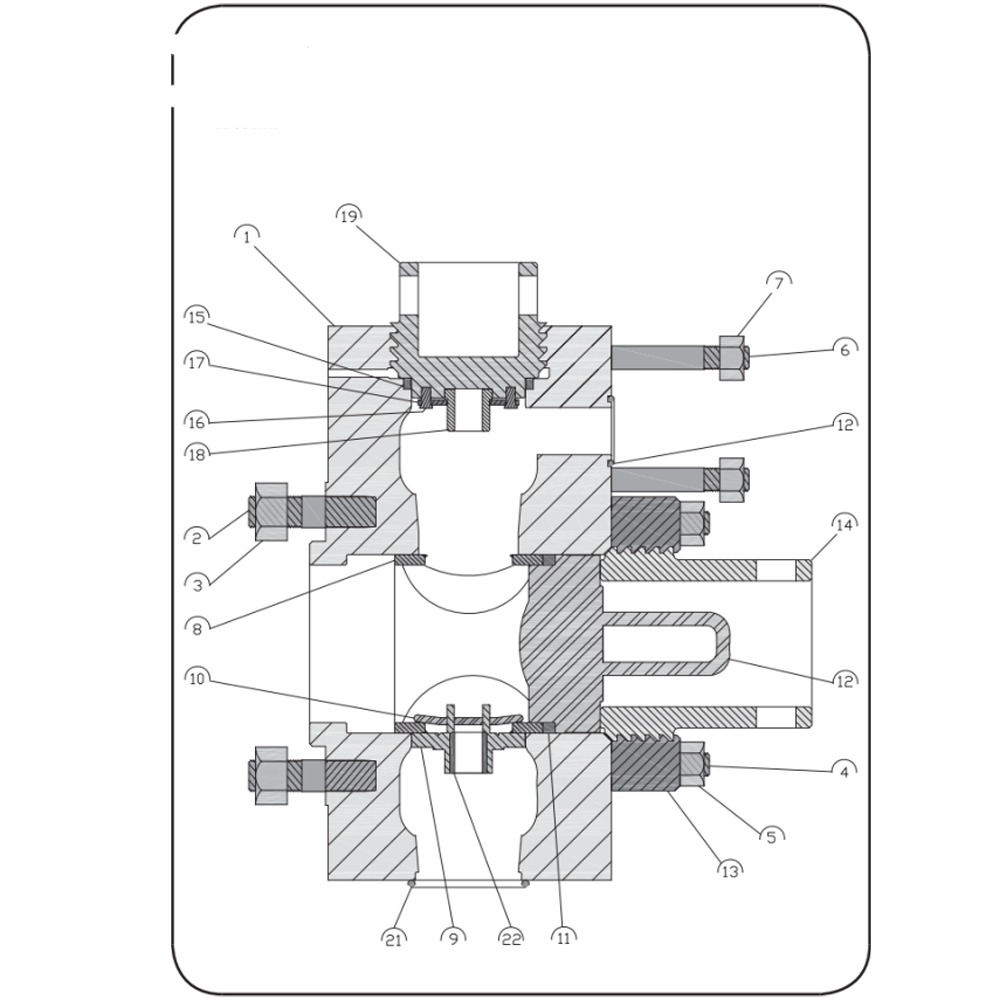

EMSCO FLUID END MODULE AND ACCESSORIES-F-350, F-500 & F-650

Item	Part No.	Description	Qty
	MK-6318-0151-00	Fluid Module, Studded (Included Items 2 – 7)	-3
1		Fluid Module, Only	3
2	MK-7507-2207-00	Stud – Frame	18
3	MK-7601-0630-17	Nut – Frame	18
4	MK-7507-3402-00	Stud – Threaded Ring	36
5	MK-7601-0630-26	Nut – Threaded Ring	36
6	MK-7507-3407-00	Stud – Discharge Manifold	12
7	MK-7601-0630-26	Nut – Discharge Manifold	12
8	MK-6318-0148-00	Liner Cage	3
9	MK-6318-0177-00	Lower Valve Guide with Bushing	3
10	MK-6318-0153-00	Locking Clip	3
11	MK-7602-2200-34	Gasket – Liner	6
12	MK-6318-0158-00	Cylinder Head Plug	3
13	MK-6318-0130-00	Threaded Ring	3
14	MK-6318-0157-00	Cylinder Head	3
15	MK-6310-0084-00	Gasket – Valve Pot Cover	3
16	MK-7501-0051-00	Retainer Bolt	12
17	MK-6310-0133-00	Retainer Plate	3
18	MK-6397-0602-00	Upper Valve Guide	3
19	MK-6310-0016-01	Valve Pot Cover	3
20	MK-7602-1600-23	Gasket – Discharge Manifold	3
21	MK-7602-1600-33	Gasket – Suction Manifold	3
22	MK-6318-0155-00	Lower Valve Guide Bushing	3
