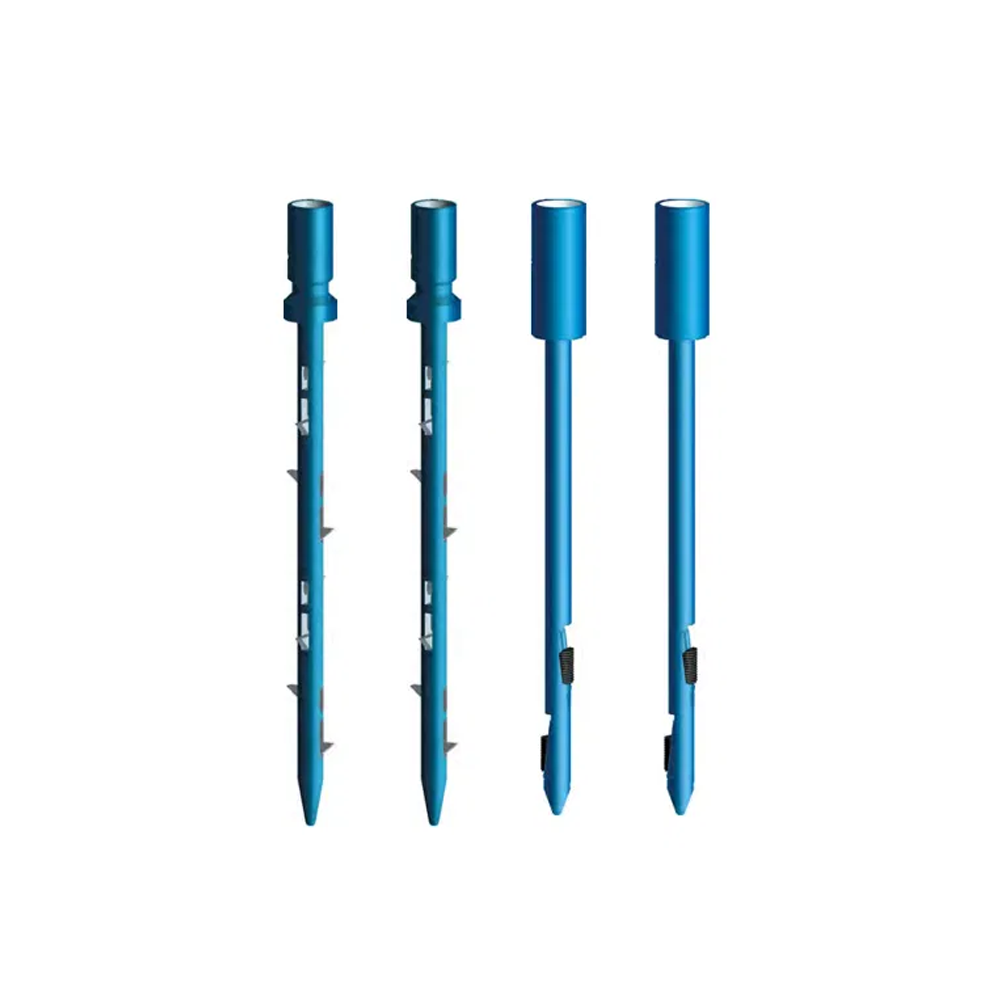

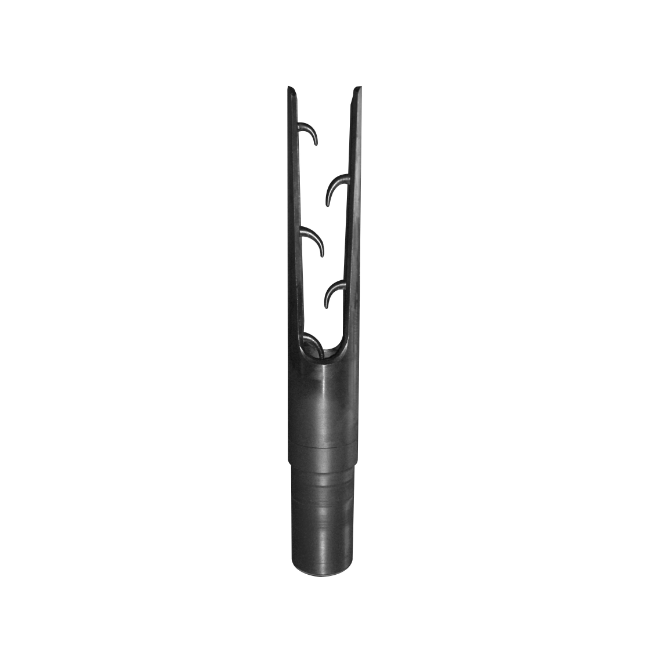

The External Hook is used inside casings or tubing to catch all kinds of ropes, lifting bails, hollow short cylinders, and short rope slings, etc.
| Model | Product Code | O.D.(in) | Connection | For Casing/Tubing Size(in) |
|---|---|---|---|---|
| WG73 | L23-7300 | 2-7/8 | 2-3/8 Tubing coupling | 3-1/2 Tubing |
| WG95 | L23-9500 | 3-3/4 | NC26 | 4-1/2 Tubing |
| WG114 | L23-11400 | 4-1/2 | NC31 | 5-1/2 Casing |
| WG136 | L23-13600 | 5-3/8 | NC31 | 6-5/8 Casing |
| WG150 | L23-15000 | 5-8/9 | NC38 | 7 Casing |
| WG176 | L23-17600 | 6-8/9 | NC38 | 8-5/8 Casing |
| WG190 | L23-19000 | 7-1/2 | NC38 | 9-5/8 Casing |
