Equipped with weak nitrile rubber sealing ring, used to seal and protect the union of union steel. It is recommended for manifold pipeline connection, vehicle-mounted and mud conveying occasions, and can be used for pressureless sealing union. Using butt welding Sch.80.
Specification

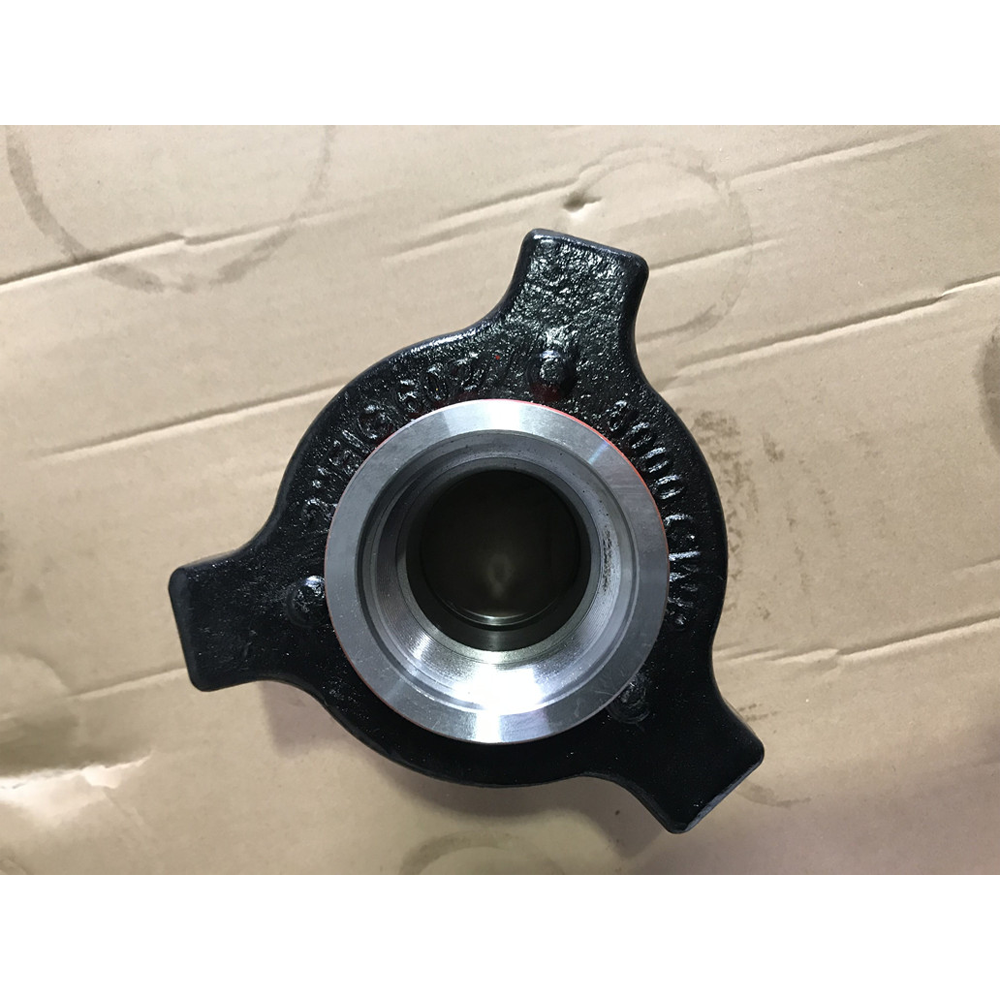

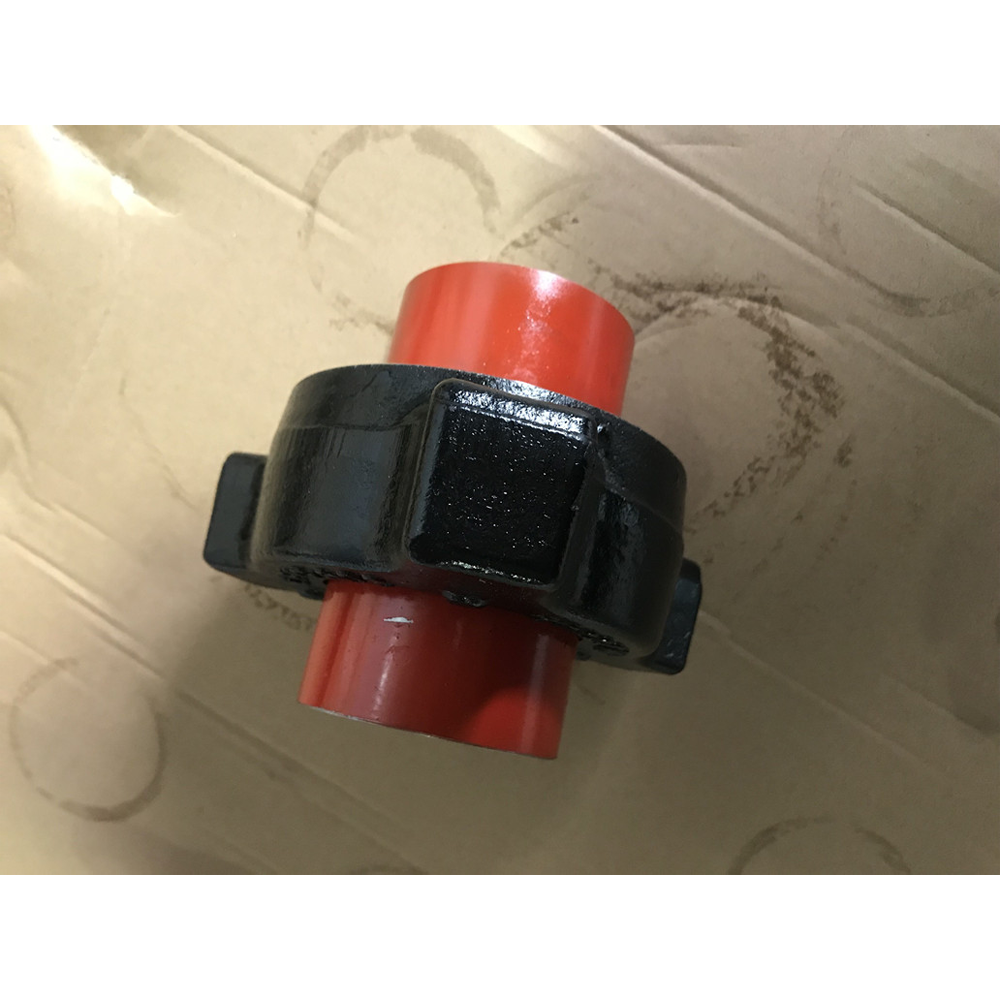

Type 602: 6000PSI NSCWP, test pressure: 9000PSI, black nut and orange part.
| Nominal pipe size | Total length | Countersink | Nut radius | Material | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nut | Part | ||||||||||
| in | mm | in | mm | in | mm | in | mm | lb | kg | ||
| 1 | 25.4 | 3-17/32 | 89.7 | 1/4 | 6.4 | 2-5/16 | 58.75 | SF | SF | 3.5 | 1.6 |
| 2 | 50.8 | 5-1/4 | 133.3 | 1/4 | 6.4 | 3-9/16 | 90.5 | SF | SF | 13.25 | 5.9 |
| 3 | 76.2 | 6-3/8 | 161.92 | 3/8 | 9.5 | 4-5/8 | 117.5 | SF | SF | 21.0 | 9.5 |
| 4 | 101.6 | 8-1/16 | 208.0 | 3/8 | 9.5 | 5-1/4 | 133.4 | SF | SF | 33 | 15 |
