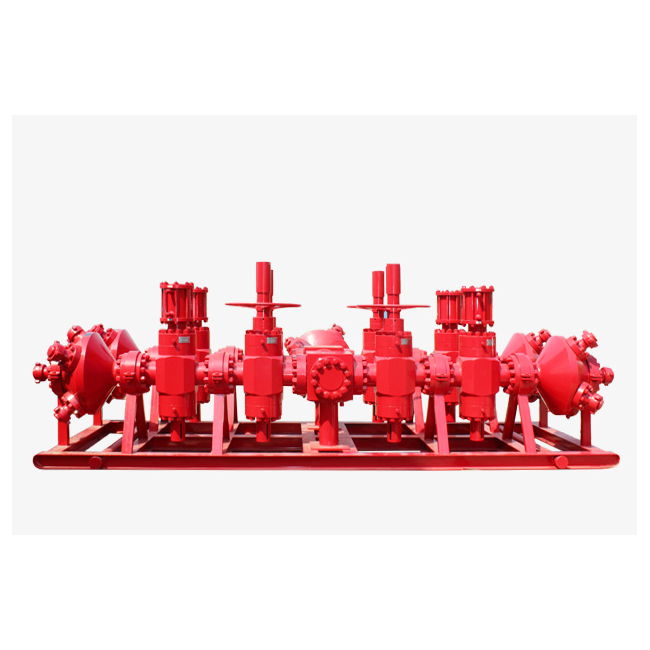

Frac Diverting Manifold

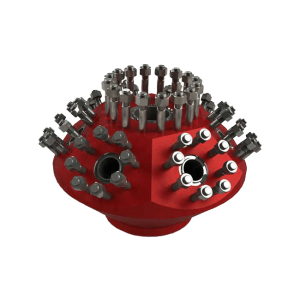

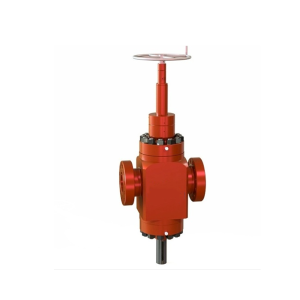

Frac Diverting Manifold is mainly used for multiple well fracturing, composed of frac valve, frac head, spacer spool, cross, six-way cross, skid, etc. It features multiple passages and several outlets through the frac head. Passages open/close is controlled by frac valve, suitable for continuous frac operation of multiple wells.

Features：
Pressure containing and pressure controlling parts are forged steel, resistant to erosion and corrosion.

Large bore design allows large displacement and quick fracturing operation.

Integral skid delivers strong shock-proof capability and easy connection.

Many configurations including two-passage, three-passage, four-passage, H shape, straight shape and L shape are available for various layout.

Multiple passages design and chain operation increase fracturing efficiency and reduce cost.

Full-bore, two-way seal and spring energized seal extend service life.

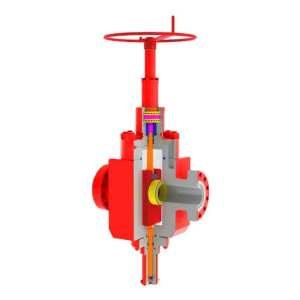

Ball screw design reduces operating torque.

Hydraulic valve and hydraulic station are available for remote control.
