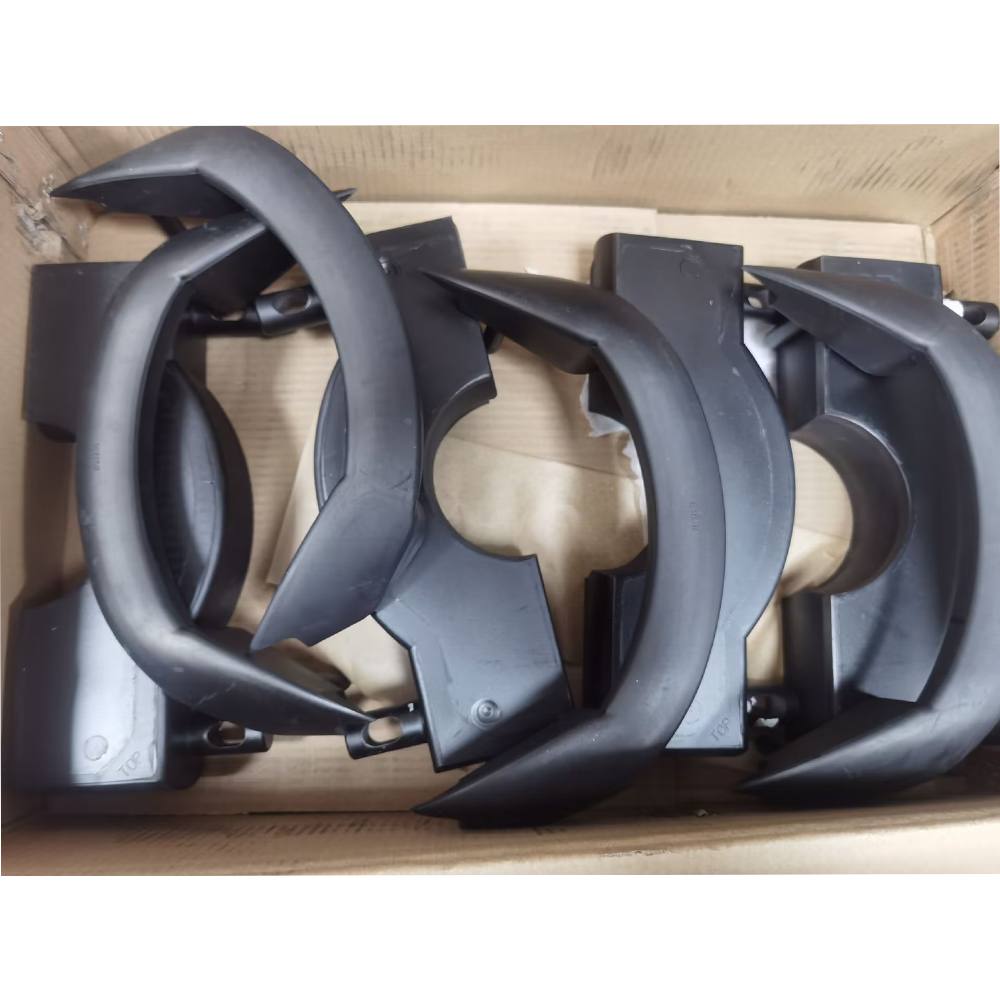

FZ35-70 BOP Variable Bore Ram

Variable Bore RAM Feature of BOP Spare Parts:
It is applicable to existing well control BOP ordinary ram block, as long as existing ordinary ram block is available, it can be used to install the new utility model variable packer;

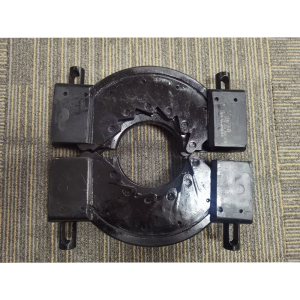

A kind of VBR Packer can be applied to seal on a variety of specifications drill pipe within acertain range.
For 3 1/2” ~ ~ 5” VBR Packer, it can be installed on 5” ordinary ram block to seal on 3 1/2”, 4” ,4 1/2”and 5” drill pipe, thus reduce the store and change of these three kinds of ordinary ram packers and ram blocks; save and reduce a lot of manpower , materialresources and financial resources; speed up the drilling progress; when change the ram assembly, greatly reduced the risk of well control.
Temperature Range:—45 ℃~180℃

BOP Size and Working Pressure Pipe Size Range
7 1/16″-5,000psi 2 7/8″-3 1/2″
7 1/16″-5,000psi 2 3/8″-3 1/2″
3 1/2″-4 1/2″
7 1/16″-5,000psi 3 1/2″-4 1/2″
7 1/16″-10,000psi 2 7/8″-3 1/2″
7 1/16″-10,000psi 2 7/8″-3 1/2″
11″-10,000psi 2 7/8″-3 1/2″
13 5/8″-10,000psi 3 1/2″-5″
5″-5 1/2″
13 5/8″-10,000psi 3 1/2″-5″
Double Faced 11″-5,000psi 5″-7″
Double Faced 11″-10,000psi 3 1/2″-5″
