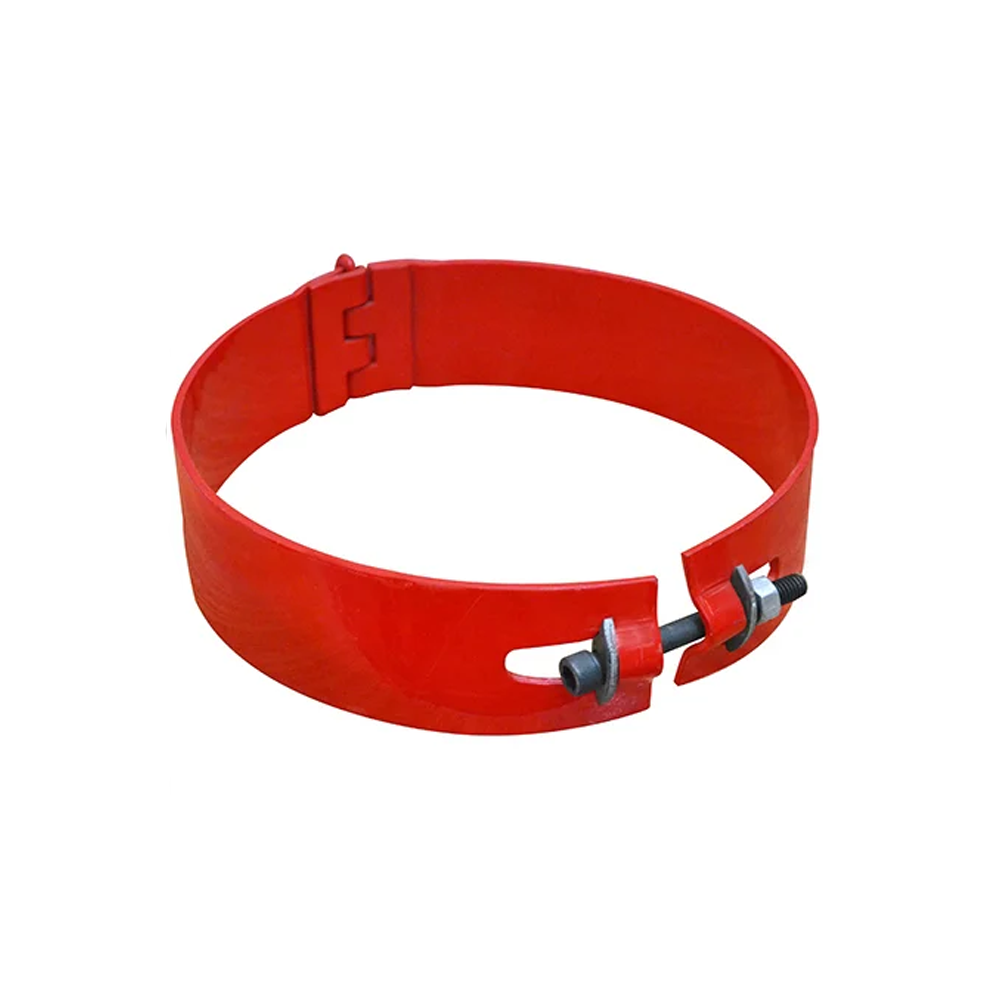

Hinged Bolted Stop Collars secure placement and limits travel on attachments to casing string. The stop collar uses a single draw bolt tightening mechanism with “hardened inserts” to grip the casing once tightened.
Hinged bolted Stop Collar is Designed to latch on the casing pipe without having to be slipped on at the end of the casing pipe allowing quick and easy installation. On locking it can be tightened for a holding force up to 1000 % of the centralizer starting force as per API 10 D.
The locking mechanism is at 180 degrees of the hinge.
This design does not make any marks or indentations on the casing.
This style stop collar is available in 4-1/2in thru 20in.
FEATURES
1.Easy Installation over Casing
2.Good Holding Force
3.Bolt Lock Mechanism
4.Hinged at two parts
5.Connected by Bolt or Spiral Nail
