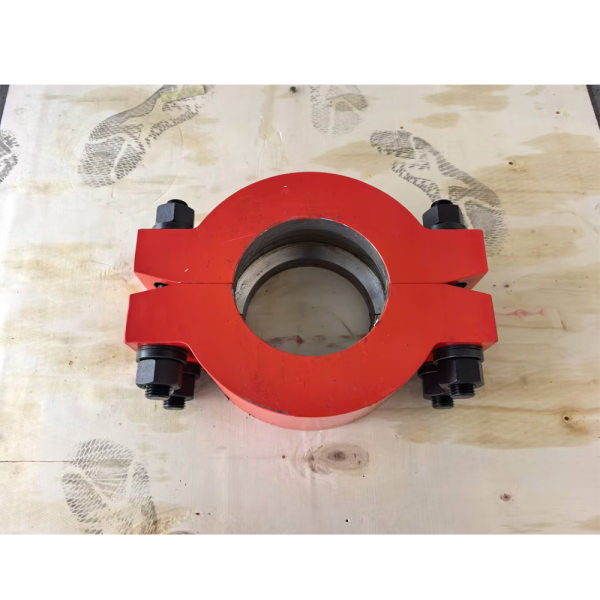

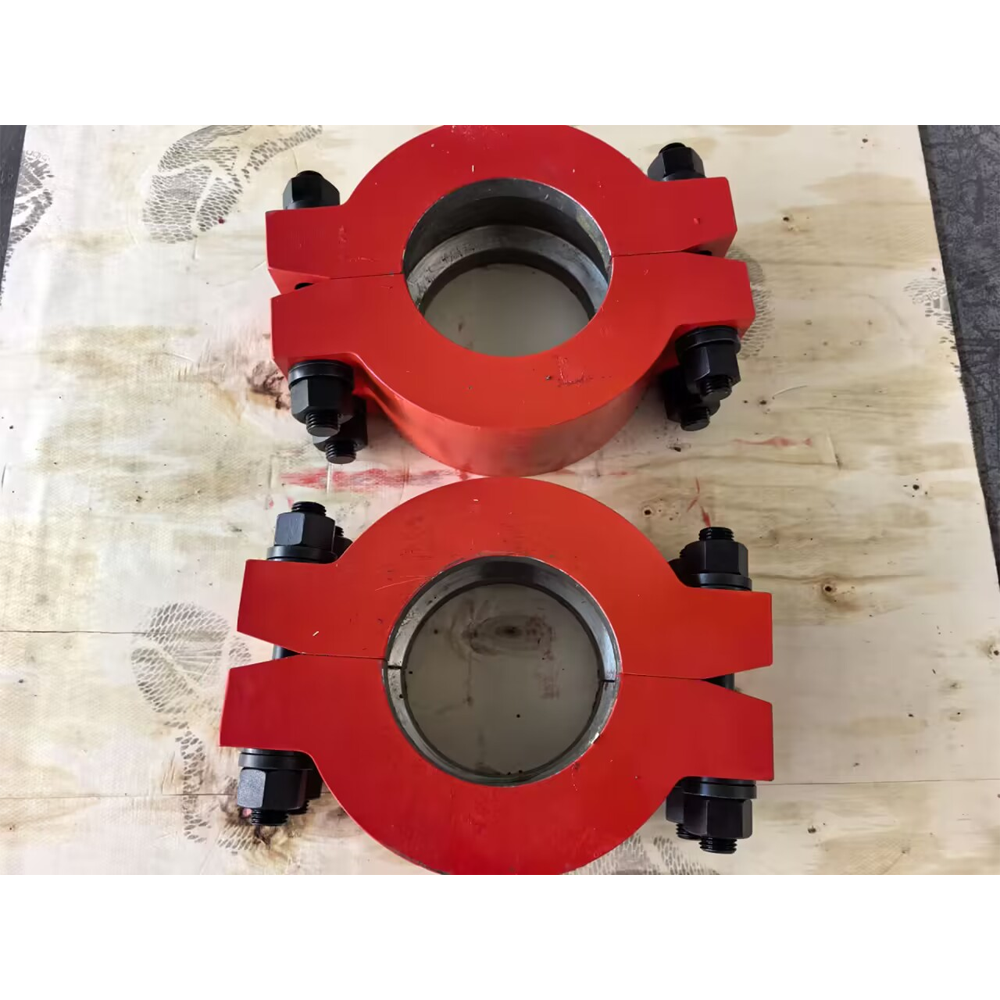

Hub Clamps

The Hub Clamps are applied on well head BOP Stacks the function of the Clamps is to connecting, fastening, and sealing the hoses.

Category: Tags: ,

The Hub Clamps are applied on well head BOP Stacks the function of the Clamps is to connecting, fastening, and sealing the hoses. The Hub Clamps are designed and manufactured conformed with API 6A and 16A. The Clampls are made of AISI 4130 Forging with high quality. Other material are also available according to the customers’ requirement.

• Fit all hub connections specified in API Spec 16A plus many other popular hub
connections.
• Made from Forged Low Alloy Steel, qualified to the same standards API Spec 16A
requires for flanges.
• 100% dimensional, hardness and magnetic particle inspected.
• Self-aligning bearing washers to evenly distribute bolting stress.
• Special coatings on bolts, nuts, and washers to ease make and break of clamp hub
connections.
• Swivel lifting eyes on larger sizes, to make handling easy, quick and safe.

clamp No.# Size
1 113/16*10000psi 21/16″5000psi
2 113/16″15000psi21/16″10000psi29/16″5000psi
3 113/16″20000psi21/16″15000psi29/16″15000psi
4 31/8″5000psi29/16*10000psi
5 31/16″10000psi41/16″5000psi
6 31/16*15000psi41/16″10000psi
8 41/16″15000psi71/16″5000psi9″5000psi
9 11″3000psi
10 41/16″20000psi 71/16″10000psi9*10000psi 11”5000psi
11 135/8″3000psi
12 163/4″2000psi
13 135/8″5000psi
14 163/4″3000psi
15 71/16″20000psi 11″15000psi135/8″10000psi
18 2114″2000psi
19 163/4″5000psi
22 71/16″15000psi11″10000psi
25 71/16″2000psi
26 183/4*15000psi 211/4″10000psi
27 183/4″10000psi 211/4″5000psi
28 11”20000psi 135/8″15000psi
