Hydraulic Disc Brake

Redundancy design is adopted, and which can provide safe and reliable braking torque for the drilling rig.

Category: Tag:

API 7K Hydraulic Disc Brake Spares For Oil Rig Drawworks

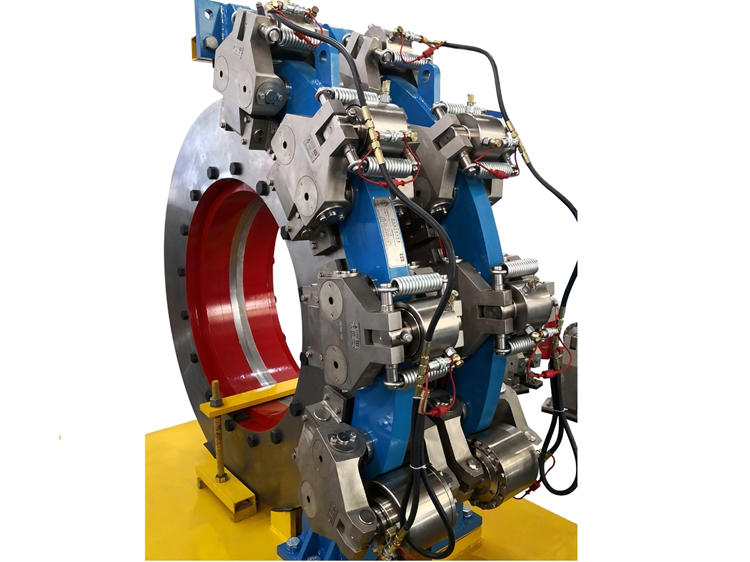

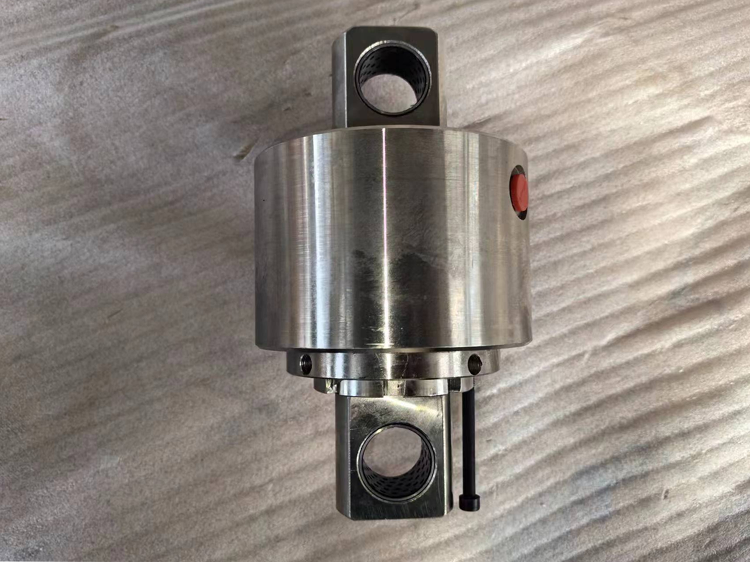

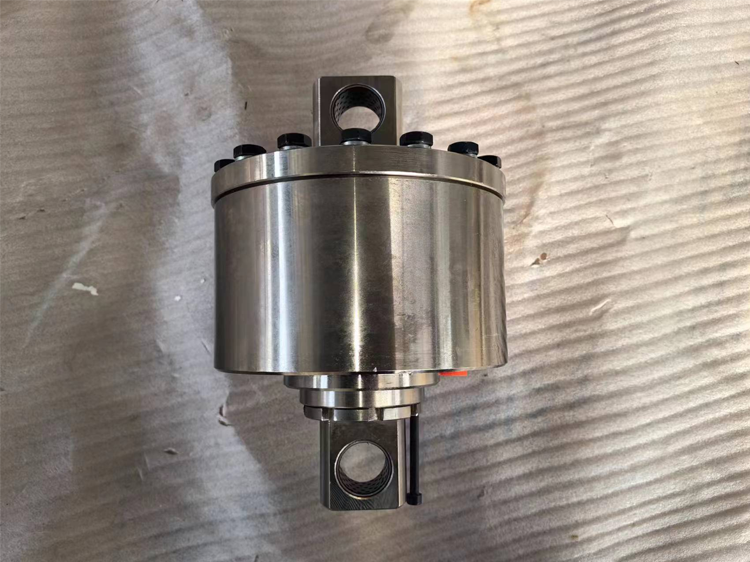

PZ Series Hydraulic Disc Brake

Redundancy design is adopted, and which can provide safe and reliable braking torque for the drilling rig.

The control system adopts valve block embedded connection structure, which can reduce quantity of external hose.

By virtue of working brake, parking brake, over-roll protection, and emergency brake functions, and it also has automatic protective functions for power, air and hydraulic failures.

Equipped with the dual electric pumps and multi-accumulator, and also equipped with the hand pump, heater unit and cooling system, which can supply the reliable hydraulic power for the hydraulic disc brake

Application

In the field of oil and gas equipment, the hydraulic disc brake is mainly used as the main brake for drilling drawworks of the workover rig and the rig.

Model

The commonly used product models of the PZ series hydraulic disc brake are as follows: PSZ65,3150L,PSZ75A,BK-0-6A,PSZ65,PSZ75B-2-07.5,PSZ65-2-00,PSZ75B,BK-7-7B,PSZ75-2-00,BK-7-6C,PSZ65-3-00,PSZ75-3-03,BK-12-7A,BK-1-6A,BK-1-7A,PSZ75,PSZ80,PSZ65-2-01,PSZ75A-2-01,PSZ75B,BK-12-7A,PSZ75B-3-03,etc

PSZ75-6-00 Hydraulic Power Unit
Part NamePart NO.Part NamePart NO.
Hydraulic stationBK-Zquick connector3/8BSP
Direct acting relief valveBK-F-Yplastic pipe clampTHPG1-228
Inverted pressure line filterZU.1-E25×10BD-Ppipe jointHB970
one-way valveBK-F-Dpipe jointJB966
nut90251000Rotary Line FilterSP-06×25
Screw M10×25GB70-85Pressure gauge 0-16MPaYN60-III
Stud bolt M10×50MECC STANDARDPressure measuring hoseHFH2-P1-2-P-1.5
Nut M10MECC STANDARDNext-door straight-through pipe jointJB97422
Connector body M14×1.5/ M22×1.5JB984Pipe joint 22/ G1/2″JB966
Pressure measuring connector G1/4″/M16PT-7Reducer 22/2822/28
High pressure ball core globe valveBK-F-G1Explosion-proof motor B35YB100L1-4W
High pressure hose assembly 221-600KAJB1885-77High pressure ball core globe valveBK-F-G3
High pressure ball core globe valveBK-F-G2PVC pipe with reinforcing ribsd20mm
hand pumpQH-25screwGB5780-86
High pressure ball core globe valveQJH-15GExplosion-proof electric control boxEXX
AccumulatorNXQ-F6.3/200boltGB5780-86
Straight return oil filterRFA-40×10YboltGB5780-86
coolerKMCL-3Y04Sleeve flange90261001
Liquid level thermometerYW2-150High pressure hose assemblyJB1885
Pipe joint M22/ ZG3/4″JB966Plum couplingML2
air filterQUQ2Fuel tank 90LTank90L
Explosion-proof electric heaterBGY2-120/1Plunger pumpA10V
O-ring ￠75×3.1GB1235-76pipe jointJB966.4.00
Screw M8×18GB70-85Connector bodyJB984
oil block90251002Screw M16×45GB70-85
oil block902510000000000linker bodyJB984
Connector body262004High pressure hose assemblyJB1885
Quick connector 1/4BSPHA050200Hydraulic station box90252000
