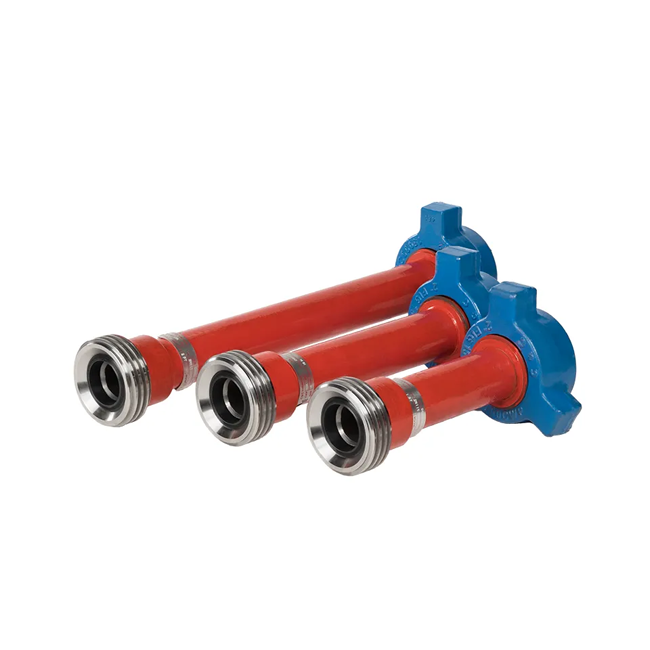

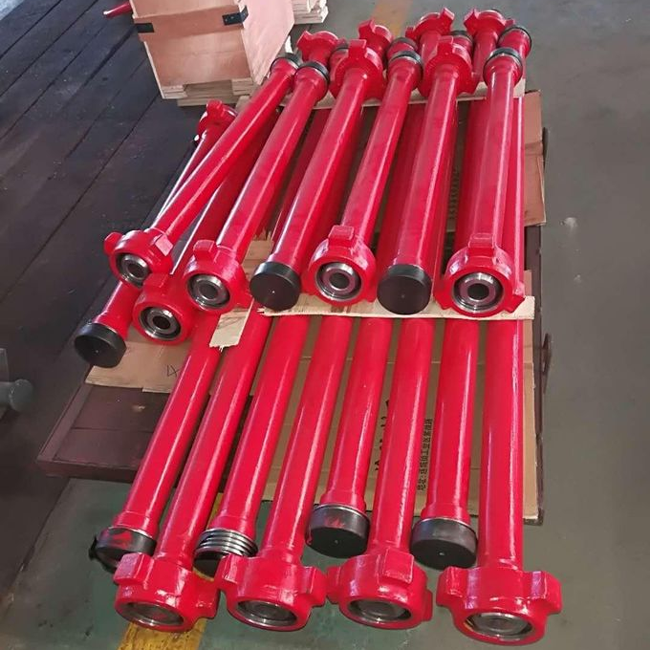

API Integral Pup Joints are straight tubes/pipes with hammer union, thread, or flange connections on both ends, which have been widely used for transporting high pressure flow in fracturing manifold, cementing manifold, maintenance manifold and test manifold.
Rated Working Pressure: 69 ~ 138 MPa (10000 ~ 20000 psi)
Nominal Size: 1 ~ 4 in
Service: Standard, Sour Gas
Application: Fracturing, Cementing, Acidizing, Testing Lines
NPST Flowline | WP (PSI) |
---|---|
2″ Flowline | |
2″ 1502 M x F 2″ | 15,000 |
2″ 1502 M x F 4′ | 15,000 |
2″ 1502 M x F 6′ | 15,000 |
2″ 1502 M x F 8′ | 15,000 |
2″ 1502 M x F 10′ | 15,000 |
3″ Flowline | |
3″ 1502 M x F 2″ | 15,000 |
3″ 1502 M x F 4′ | 15,000 |
3″ 1502 M x F 6′ | 15,000 |
3″ 1502 M x F 8′ | 15,000 |
3″ 1502 M x F 10′ | 15,000 |
4″ Flowline | |
4″ 1002 M x F 2″ | 10,000 |
4″ 1002 M x F 4′ | 10,000 |
4″ 1002 M x F 6′ | 10,000 |
4″ 1002 M x F 8′ | 10,000 |
4″ 1002 M x F 10′ | 10,000 |
4″ 1502 M x F 2″ | 15,000 |
4″ 1502 M x F 4′ | 15,000 |
4″ 1502 M x F 6′ | 15,000 |
4″ 1502 M x F 8′ | 15,000 |
4″ 1502 M x F 10′ | 15,000 |
2″ Integral Flowline | |
2″ 1502 M x F 2″ | 15,000 |
2″ 1502 M x F 4′ | 15,000 |
2″ 1502 M x F 6′ | 15,000 |
2″ 1502 M x F 8′ | 15,000 |
2″ 1502 M x F 10′ | 15,000 |
3″ Integral Flowline | |
3″ 1502 M x F 2″ | 15,000 |
3″ 1502 M x F 4′ | 15,000 |
3″ 1502 M x F 6′ | 15,000 |
3″ 1502 M x F 8′ | 15,000 |
3″ 1502 M x F 10′ | 15,000 |
