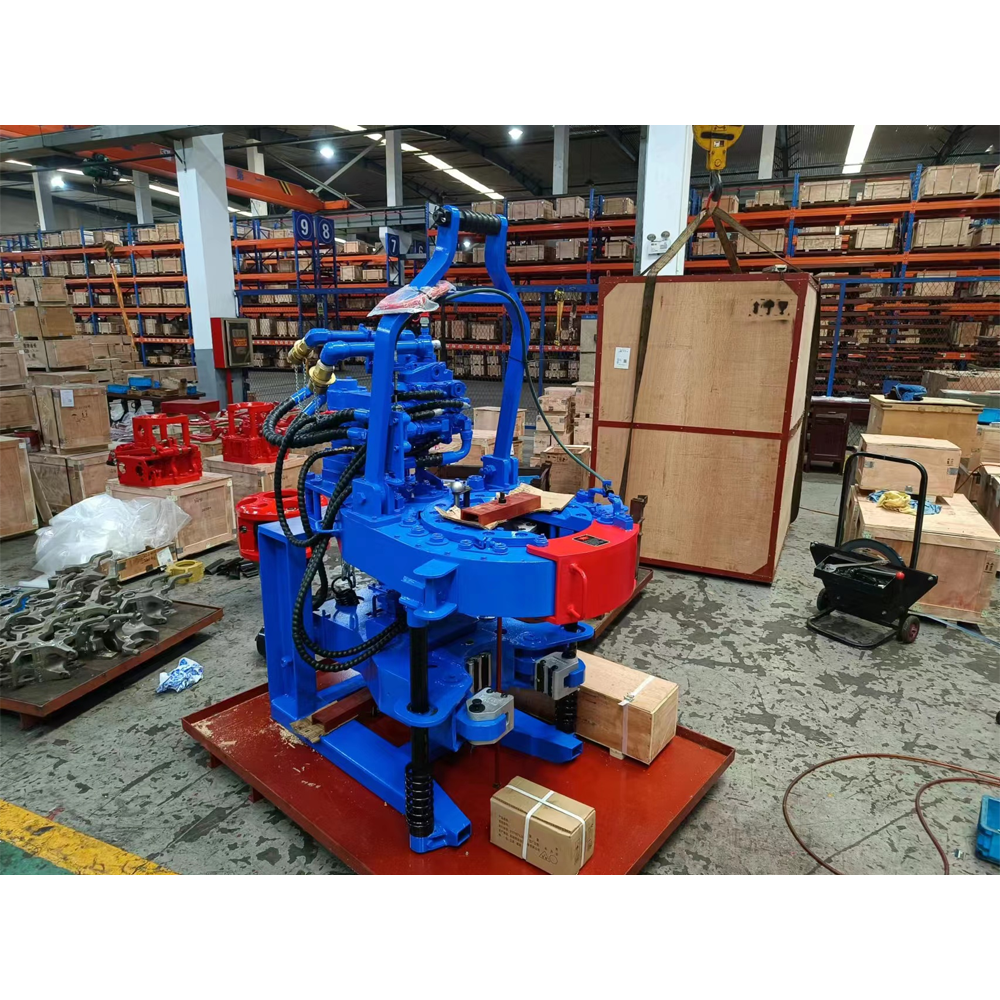

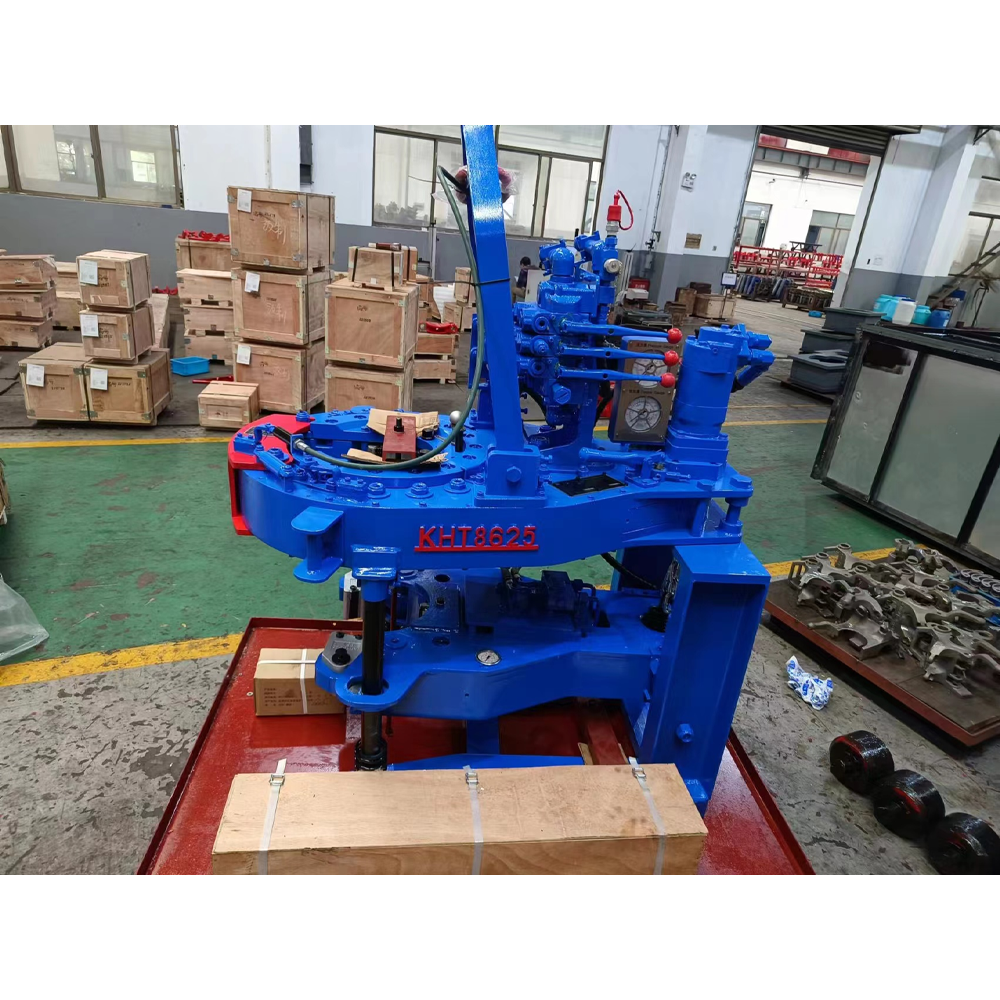

KHT8625-Casing Power Tongs and Spares

1.INTRODUCTION

KHT8625 Casing Power Tong is used to make up and break out for casing operation in oil fields. It has

greatly reduced the labor of worker, enhanced connection quality of thread and diminished accidents in

inappropriate casing operation.

2.SPECIFICATIONS

2.1. Jaws available for casing sizes 2 3/8″-8 5/8″

Three kinds of common jaws that we supply: 5 1/2″ 、6 5/8″ 、8 5/8″; Others：2 3/8″、2 7/8″、3 1/2″、

4″、4 1/2″、5″、7″、7 5/8″、8 5/8″jaws can be equipped according to customer’s needs

2.2. Opening size

9″/ 228.5mm

2.3. Tong head rotation speed

High gear: 48 rpm

Low gear: 10

rpm

2.4. Rated torque

High gear: 5200 ft.lbs/7 kN.m

Low gear: 25000 ft.lbs/34 kN.m

2.5. Rated pressure

2000 PSI/14 MPa

2.6. Work flow

50 GPM/189 L／min

2.7. Overall dimension(L×W×H)

55.1″×37.5″×70.8″ / 1400×955×1800 mm

2.8. Weight

1200 kg/2640 lb
