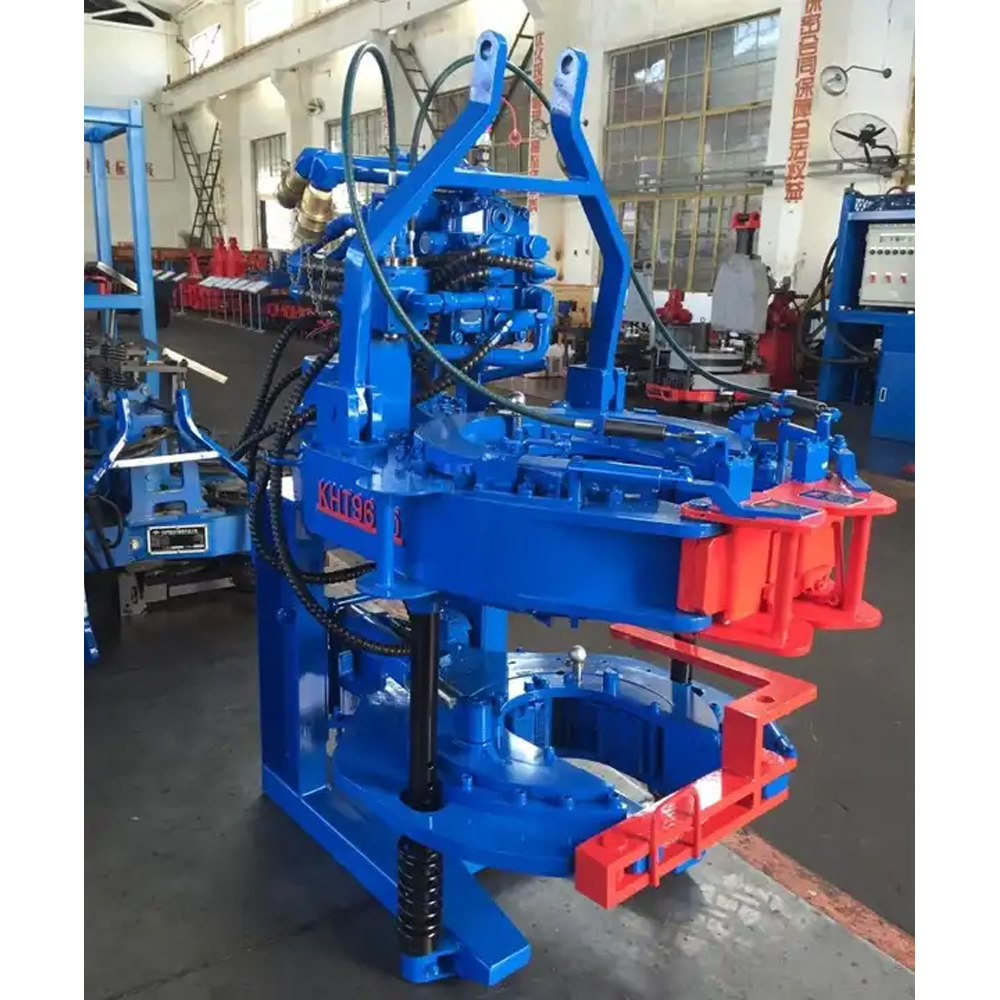

KHT9625 Hydraulic Casing Tong

KHT9625 Casing Power Tong is a kind of heavy set casing tong ,suitable for Maximum casing pipe diameter 9 5/8″,master、backup tong are all use three-jaw clamp system.

KHT9625 Casing Power Tong is used to make up and break out for casing operation in oil fields,which is a kind of heavy set casing tong ,suitable for Maximum casing pipe diameter 9 5/8″,master、backup tong are all use three-jaw clamp system,. It has greatly reduced the labor of worker, enhanced connection quality of thread and diminished accidents in inappropriate casing operation.

Features:

(1) Opening type, convenient and prompt to enter and slide off the working position, with an integral tong head of great strength and rigidity.

(2) Master、backup tong are all use three-jaw clamp system, ensure the minimum damage to the tube pillar. Two front jaw of master tong is swing type, rear type is roller climbing type, disassembling is very convenient, The design of best cutting diameter can ensure the reliable clamping and easy back climbing; the master tong is liquid push climbing three-jaw structure, which is simple, and reliable.

(3) Four gear speed used,wide range of speed adjustment,rated torque high

(4) Brake belt assembly, easy to operate and convenient to maintain and replace.

(5) Open gear supporting structure, improving the strength and rigidity.

(6) The jaws are cast with precise technology, artistic and strong.

(7) With optional torque control system to display, record and control the make-up torque.

Specification:

Model KHT9625
Range of Master Tong Φ73-245
2 7/8″- 9 5/8″
Range of Backup Tong Φ73-267
2 7/8″- 10 1/2″
High Gear Rated Torque 3600 N.m
2700 ft-lbs
Low Gear Rated Torque 34000 N.m
25000 ft-lbs
High Gear Rated Speed 65 RPM
Low Gear Rated Speed 6.5 RPM
Rated Operation Pressure 14 MPa
2000 psi
Max. Flow 150 LPM
40 GPM
Dimension :L x W x H 1500 x 790 x 1750
59″x31″x69″
Weight(including Backup Tong) 1220 kg
2680 lbs
