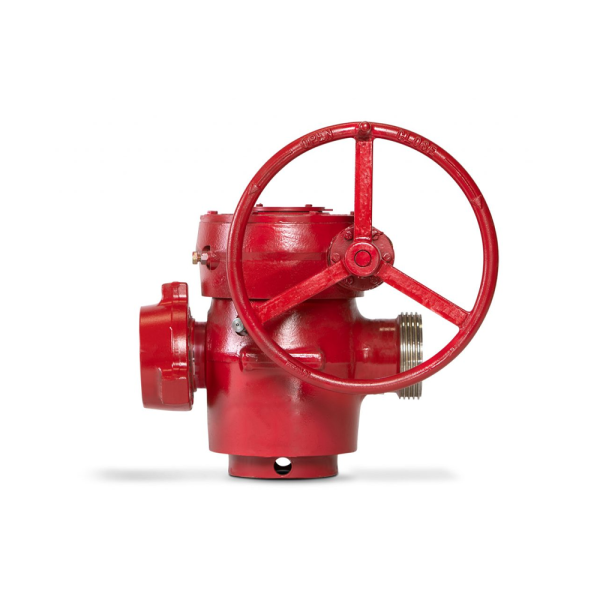

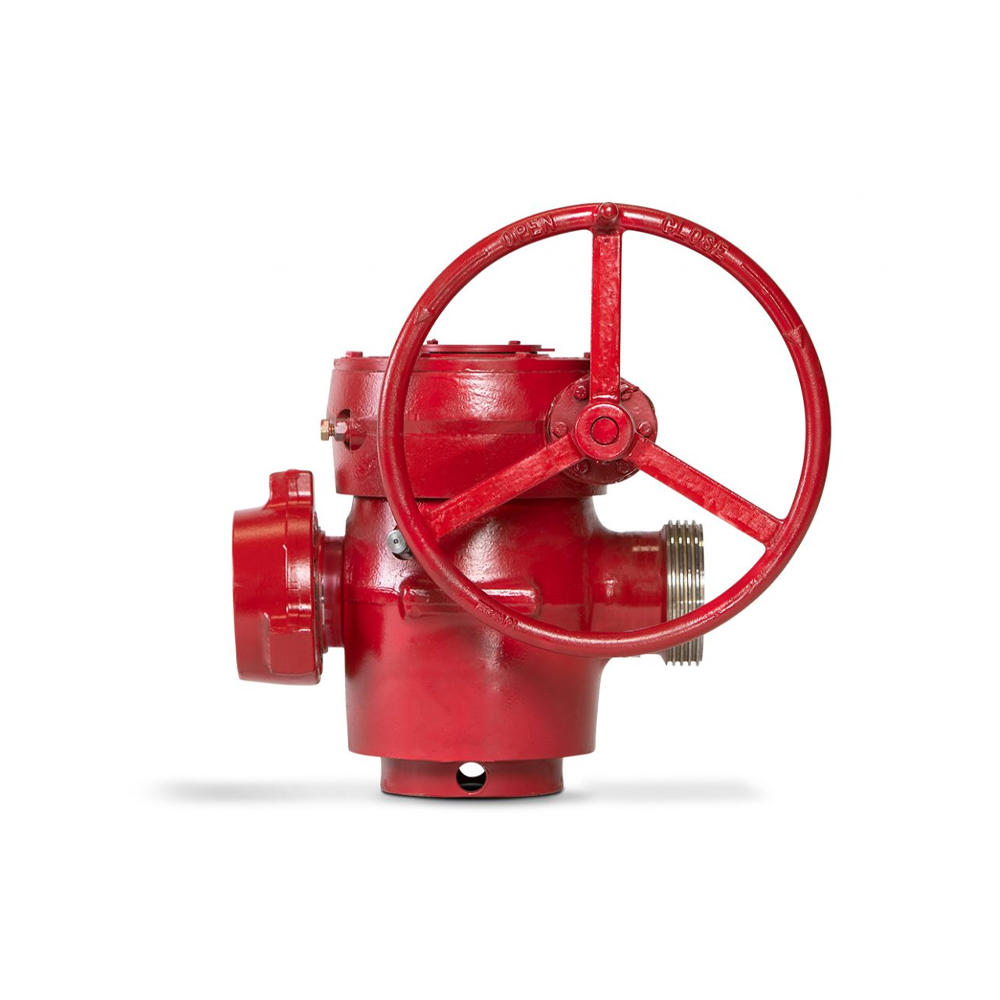

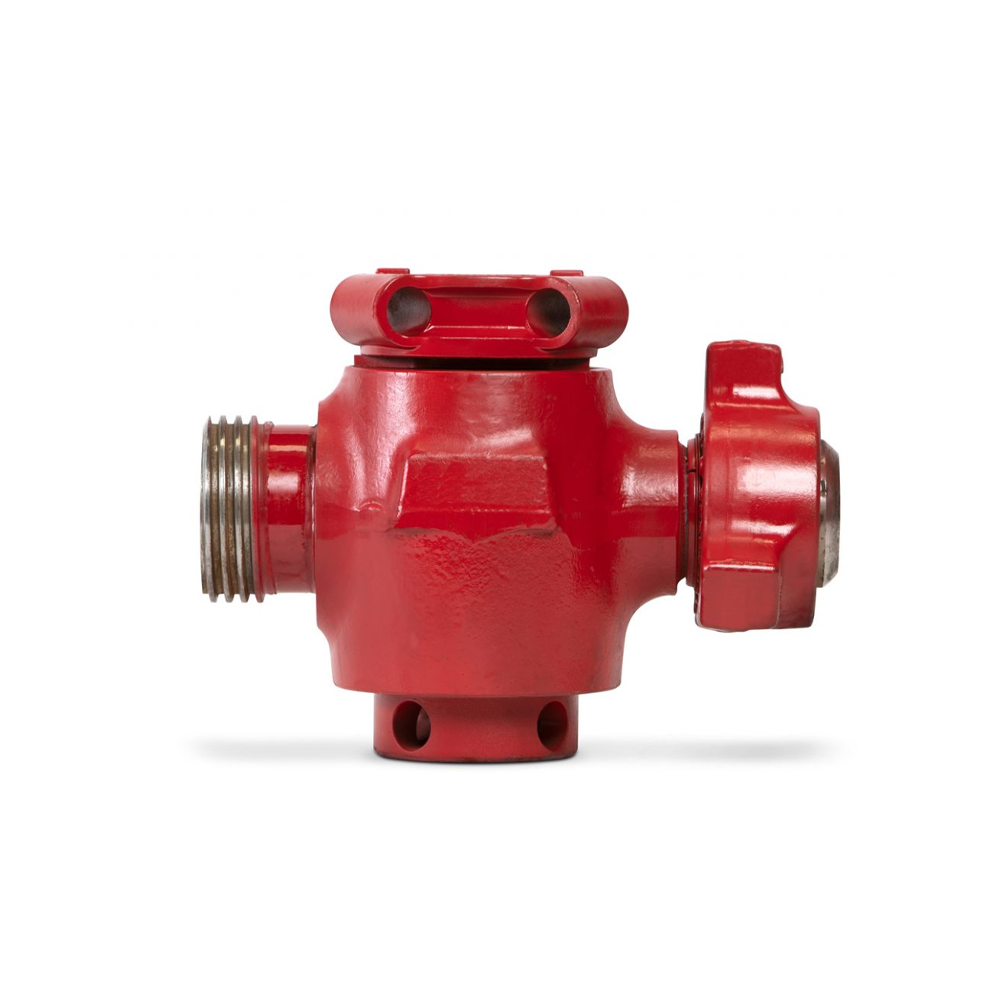

Low Torque Plug Valve

All-petro offers a wide range of Low Torque style plug valves with various end connections, pressure ratings, & configurations to meet the needs of the high pressure well servicing industry. Our valves are interchangable with all LT-style plug valves in 1″, 2″, 3″, & 4″ as well as all working pressures.

Category:

API 6A Plug Valve is an indispensable part to connect with high pressure manifold during well cementing and fracturing. It mainly consists of valve body, bonnet, plug, segments and hand wheel. This type valve features a compact structure, low torque, quick open & close and easy operation. All-petro’s Plug Valves are manufactured strictly in compliance with API 6A and API Q1 standards and are available in rated working pressures up to 15,000 PSI. Plug Valves are mostly applied on various oilfield manifolds.

Product Name High-pressure plug valve/low torque valve/flow line plug valve
Material Class AA-EE
Working Media Crude oil and natural gas
Processing Standard API 6A
Working Pressure 3000~15000psi
Processing Type Forge
Performance Requirement PR1-2
Product specification level PSL1-3
Nominal Bore Diameter 1″, 2″, 3″,4”
Connection Type Union, BOX thread, Pin thread
