M Pow-R-Seal API 6A Expanding Gate Valve

EXPANDING GATE VALVE MODEL ‘ M ‘ :

EXPANDING STYLE GATE VALVES FOR 2000-5000 PSI. WP. APPLICATION

  • Full bore through conduit
  • Block and Bleed Mechanism
  • Long-life seat
  • Positive Seal by expand Mechanism
  • In-line maintenance
  • Non- Rising and Non- Balanced Stem
  • Thrust bearing for the low torque operation

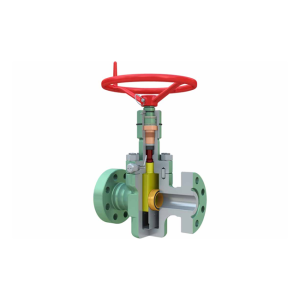

M Pow-R-Seal API 6A Expanding Gate Valve

The M Pow-R-Seal gate valve features an expanding wedge-type gate, nonrising stem, and metal-tometal seal technology throughout. It provides reliable, dependable service in
applications from 2,000 to 5,000 psi and is available in sizes from 21/16 and 41/16 in,with either flanged, threaded, or clamphub end connections. The M Pow-R-Seal
gate valve has a cast valve body and is trimmed for several types of oilfield services, including sour gas.

Features and benefits

■ Bidirectional design with a preferred direction of installation indicated,
providing reduced operating torque
■ Metal-to-metal seal (gate-to-seat and seat-to-body)
■ Expanding gate design to create a positive mechanical seal across
the seats with or without line pressure
■ Fullbore through-conduit gate-to-seat seal for increasing valve life
by virtually eliminating turbulence and pressure drop
■ Seat skirts to reduce loss of body lubricants
■ Thrust bearings in isolation from well fluid
■ Stem packing reenergizable with valve under pressure
■ Seats, gates, stems, and other working parts field-replaceable
■ Cast body
■ Metal-to-metal bonnet seal

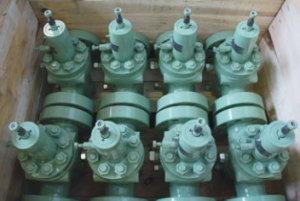

Construction Photo:



FLANGED GATE VALVES OVERALL DIMENSIONS(As per API-6A Standard)
Size Working Pressure
(PSI)
A E F G J N Wt
(Ibsf)
21/16 2000
3000/5000
21/16 413/16
51/16
191/4
197/16
11
13
115/8
145/8
13 91
150
29/16 2000
3000/5000
29/16 55/8
515/16
203/16
207/16
13
16
131/8
165/8
151/2 125
205
318 2000
3000
5000
31/8 615/16
75/16
75/16
221/2
223/4
223/4
13
16
16
141/8
171/8
185/8
20 181
265
296
41/16 2000
3000
5000
41/16 85/8
91/16
91/16
2515/16
263/8
263/8
16
20
20
171/8
201/8
215/8
241/2 345
515
530
THREADED   GATE   VALVES   OVERALL   DIMENSIONS
Size Working Pressure
(PSI)
A E F G J N Wt
lbsf
21/16 2000
3000/5000
21/16 41316
51/16
191/4
197/16
11
13
95/8 13 71
99
29/16 2000
3000/5000
29/16 55/8
515/16
203/16
207/16
13
16
101/4 151/2 92
125
318 2000
3000/5000
31/8 615/16
75/16
22.12
2234
13
16
113/8 20 152
195
41/16 2000
3000/5000
41/16 85/8
91/16
2515/16
263/8
16
20
13 241/2 265
379

Drawing:

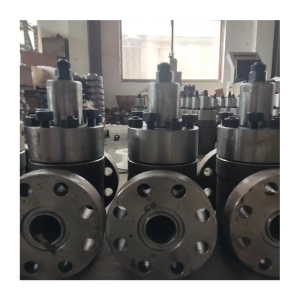

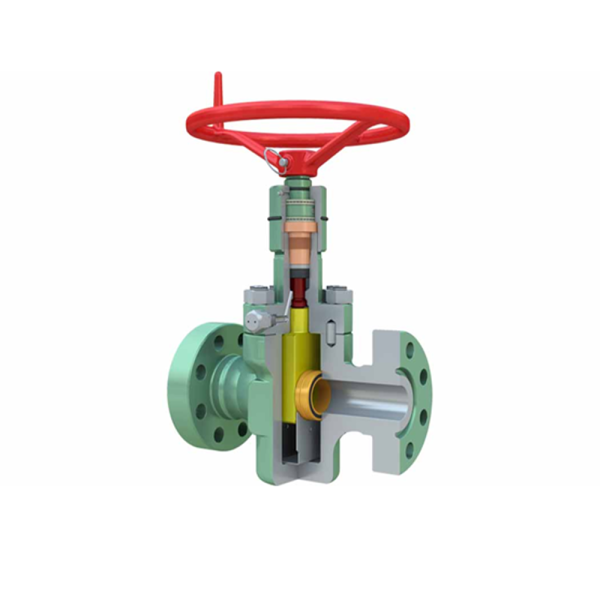

Product Photo:
