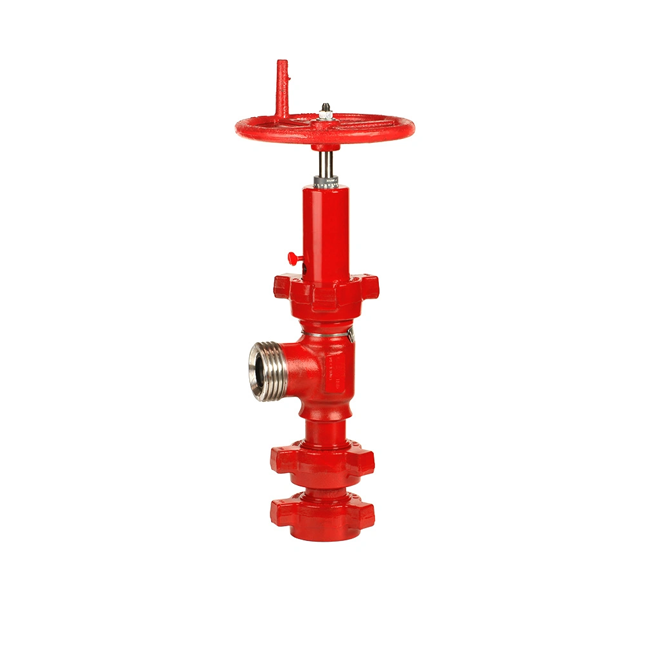

Positive choke is suitable for high pressure drilling,well testing and production accompanied with sour gas or / and sand, our positive choke valve is designed and manufactured in accordance with API 6A and API 16C standard and improved from Cameron H2 series positive choke. It is easy for operation and simple to maintain, reasonable price and low cost of spares make them the most cost effective positive chokes on the market.
Technical Data:
Rated Working Pressure: 35 ~ 138 MPa (5000 ~ 20000 psi)
Nominal diameter: 2 ~ 3 in
Nominal Size: 2 ~ 4 1/16 in
Service: Standard, Sour Gas
Application: Adjusting orifice, Adjusting flow rate, Adjusting pressure.
| Specification | Pressure of Work PSI | Connection | Adjusting Form | Actuator | Operating Condition |
|---|---|---|---|---|---|
| 2” | 15000 | FIG1502(F*M) | FIXED | / | STANDARD |
| 2” | 15000 | FIG1502(F*M) | PIN | MANUAL | |
| 3” | 15000 | FIG1502(F*M) | PIN | ||
| 2 1/16” | 5000 | 2 1/16” – 5000PSI API FLANGE | PLUNGER | ||
| 2 1/16” | 5000 | 2 1/16” – 5000PSI API FLANGE | PIN | ||
| 2 1/16” | 10000 | 2 1/16” – 10000PSI API FLANGE | PIN | ||
| 2 1/16” | 15000 | 2 1/16” – 15000PSI API FLANGE | PIN | ||
| 2” | 20000 | FIG2002(F*M) | PIN | ||
| 2 9/16” | 10000 | 2 1/16” – 10000PSI API FLANGE | PIN | ||
| 2 9/16” | 15000 | 2 1/16” – 15000PSI API FLANGE | PIN | ||
| 3 1/8” | 5000 | 3 1/8” – 5000API FLANGE | PIN | ||
| 3 1/16” | 10000 | 3 1/16” – 10000PSI API FLANGE | PIN | ||
| 3 1/16” | 15000 | 3 1/16” – 15000PSI API FLANGE | PIN | ||
| 3” | 15000 | 3 1/16” – 15000PSI API FLANGE | PLUNGER | ||
| 4 1/16” | 5000 | 4 1/16 – 5000PSI API FLANGE | PLUNGER | ||
| 4 1/16” | 10000 | 4 1/16 – 10000PSI API FLANGE | PIN |
