MODEL NUMBER: PSSCCH-10-2-4U-T

MODEL NUMBER: PSSCCH-10-2-4U-T

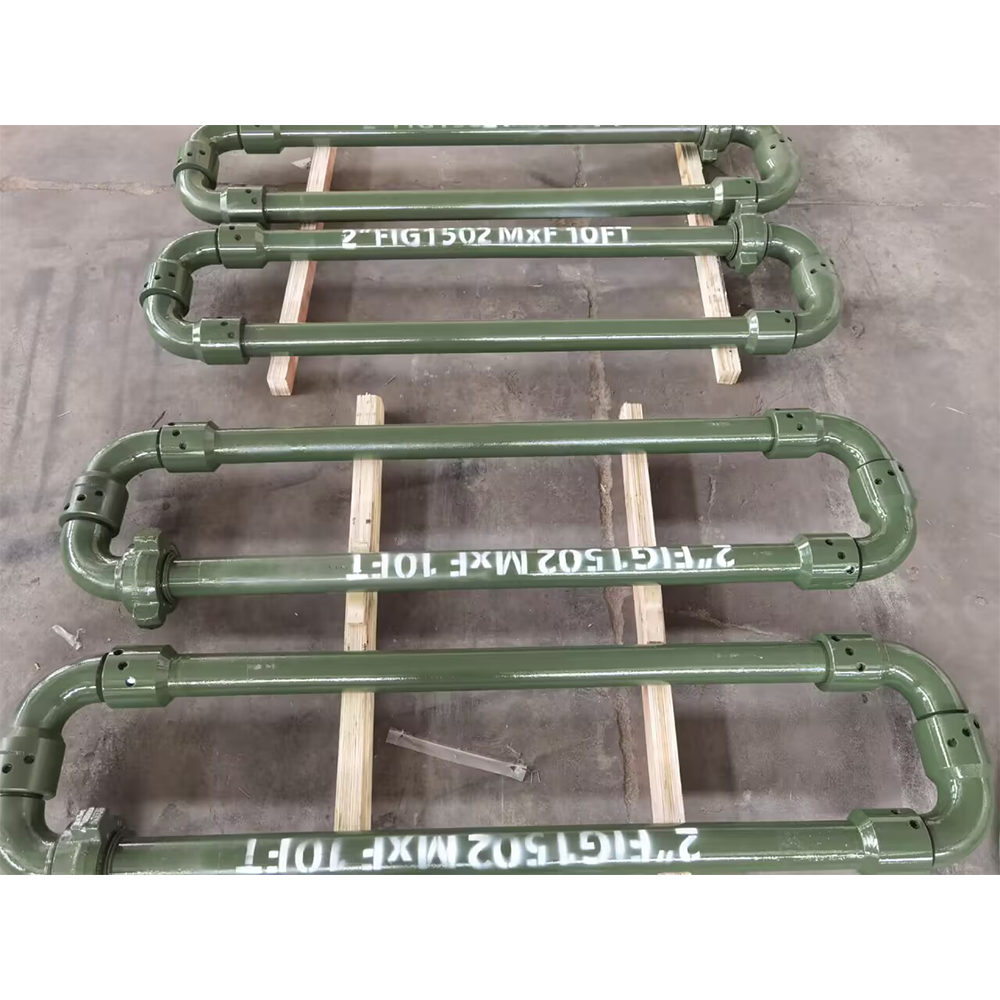

All petro’s typical steel Cementing & Circulating Hoses are shown below with its model numbers. These hoses have either Threaded ends or NPS or Integral or Welded ends.
Model Number indicates:
i. Type of Sweep i.e. Long Sweep or Short Sweep (i.e. LS or SS)
ii. Style of Swivel Joints used (i.e. Style 10, Style 50 or Style 10 & Style 50 both & numbers of swivel joints i.e.1 or 2)
iii. Numbers of Unions used (i.e. 1, 2 or 4 etc.
iv. Type of end connection i.e. Threaded (T), NPS (N), Integral (I) or Welded (W)
Example: Model Number PLSCCH-50-2-4U-1 indicates.
i. PLSCCH : All petro Long Sweep Cementing & Circulating Hose.
ii. 50-2 : Style 50 Swivel Joint, 2 Numbers.
iii. 4U : 4 Numbers of Union
iv. I : Integral Union End Connection

UNION (THREADED)1 NO.1 NO.2 NOS. 2 NOS.4 NOS.4 NOS.
S. JOINT (THREADED)STYLE-50 (2 NOS.)STYLE- 10 (2 NOS.)STYLE-50 (2 NOS.) STYLE- 10 (2 NOS.)STYLE-50 (2 NOS.)STYLE- 10 (2 NOS.)
MODEL NUMBER.PSSCCH-50-2-1U-TPSSCCH-10-2-1U-TPSSCCH-50-2-2U-T PSSCCH-10-2-2U-TPSSCCH-50-2-4U-TPSSCCH-10-2-4U-T
