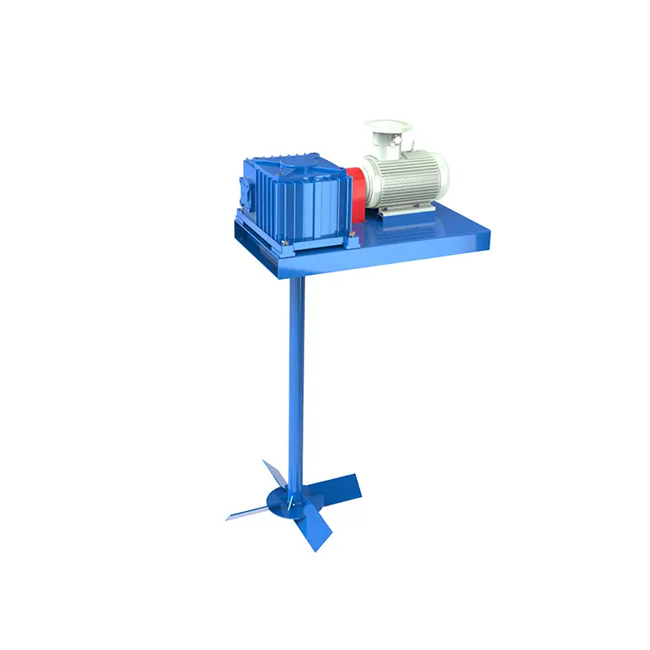

Mud Agitator

Mud Agitator, less than 5.5 kW drilling mud Agitator adopts the blender cycloid speed reducer, and it is applied to the drug liquids mixing tank. This mud agitator has the advantage of compact structure so it occupies small area.

Category: Tag:

Mud Agitator, less than 5.5 kW drilling mud Agitator adopts the blender cycloid speed reducer, and it is applied to the drug liquids mixing tank. This mud agitator has the advantage of compact structure so it occupies small area.

Model Motor(Kw) Speed (RPM) Impeller Size(mm) Impeller Qty(pcs) Ratio Weight(Kg) Dimension(mm)
JBQ030D 3 60/72
(50HZ/60HZ)
650 1 25:1 154 717×560×471
JBQ055D 5.5 850 1 280 892×700×597
JBQ075D 7.5 950 1 287 980×750×608
JBQ075DD 800 2 297
JBQ110D 11 1050 1 402 1128×840×655
JBQ110DD 850 2 419
JBQ150D 15 1100 1 423 1158×840×655
JBQ150DD 950 2 441
JBQ185DD 18.5 1050 2 746 1270×1000×727
JBQ220DD 22 1100 2 820 1270×1000×727
