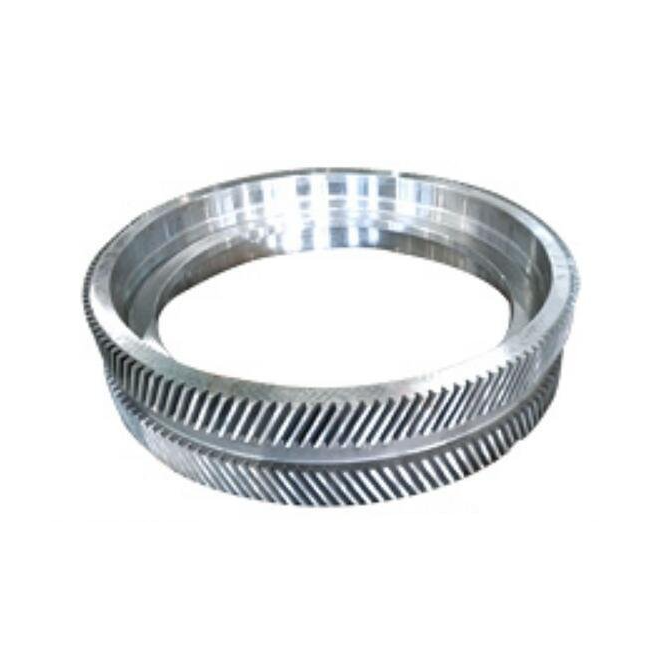

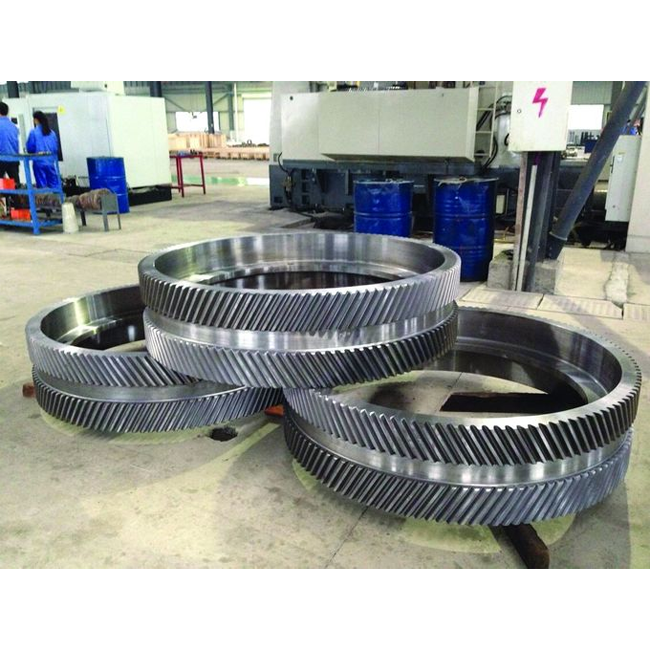

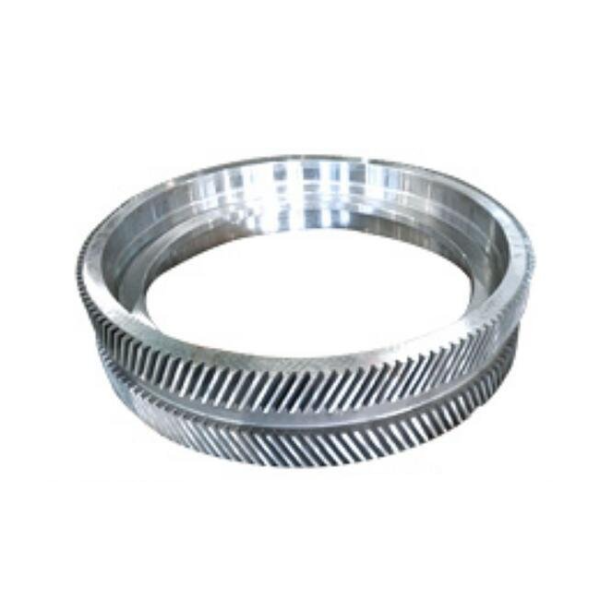

The big gear ring is the main part of the power end of the mud pump. The tooth shape of the big gear ring is herringbone teeth and the inner hole of the large gear ring is interference fit with the crankshaft and fastened with bolts and anti-loosening nuts.
1. Using unique heat treatment technology, the product structure is optimized, the hardness is improved, so the wear resistance and impact resistance of the product are enhanced.
2. It is cast with high-strength steel and optimized for the operating characteristics of the rotary kiln, which ensures the stability of the components under long-term operation and prolongs the service life of the components.
The big gear ring is also divided into details, such as with and without knife groove, which are determined according to the different equipment to be processed. The assembled ring gear is a high-quality accessory tailored by our company for preferential oilfield users.

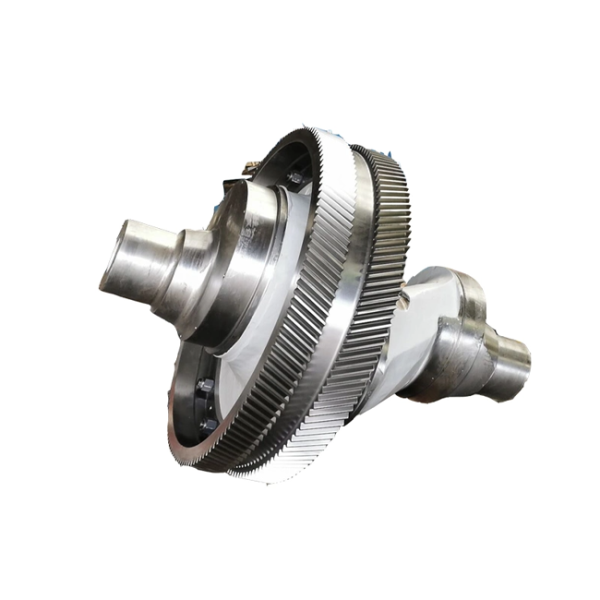

The big gear ring can be customized with different numbers of teeth and modules according to customers’ needs, working together with the pinion shaft and crankshaft to be replaced by the customer together provide the driving force for the mud pump. Different pump model have different structures of the big gear ring.
| Bomco | F-500 | F-800 | F-1000 | F-1300 | F-1600 | F-1600HL | |
|---|---|---|---|---|---|---|---|
| Brewster | B-1000-T | B-1100-T | B-1300-T | B-1600-T | |||
| HONGHUA | HHF-500 | HHF-800 | HHF-1000 | HHF-1300 | HHF-1600 | HHF-1600HL | HHF-2200HL |
| Emsco | F-350 | F-500 | F-650 | F-800 | F-1000 | FD-1000 | FB-1300 |
| FB-1600 | FA-1600 | FA-1300 | FC-1600 | FD-1600 | FC-2200D-300/500 | D-175 | |
| D-225 | D-375 | D-500 | D-550 | DA-500 | DB-500 | D-700 | |
| DA-70 | DB-700 | DC-700 | DA-850 | DB-850 | DC-850 | D-1000 | |
| DB-1000 | DC-1000 | D-1000-A | D-1350 | D-1650 | |||
| National | 7-P-50 | 8-P-80 | 9-P-100 | 10-P-130 | 12-P-160 | 14-P-220 | JWS-165-L |
| JWS-340 | JWS-400 | C-250 | C-350 | K-380 | K-500-A | G-700 | |
| K-700 | N-1000 | N-1300 | N-1600 | ||||
| Oilwell | 350-PT | A-650P-T | A-850-PT | A-1100-PT | A-1400-PT | A-1700-PT | HD-1400-PT |
| HD-1700-PT | 612-P | 212-P | 214-P | 218-P | 700-P | 816-P | |
| 818-P | 1000-P | ||||||
| Ideco | T-500 | T-800 | T-1000 | T-1300 | T-1600 | MM-450 | MM-500-F |
| MM-600-A | MM-700-F | MM-1000 | |||||
| Gardner Denver | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | FK-FXK | FY-FXD |
| FD-FXX | FG-GXG | FG-FXG | KG-KXG | FQ-FXQ | FF-FXF | FF-FXP | |
| TGE | TGF | TGH | PAH-275 | ||||
| LS National Mud Pumps | 3NB-500C | 3NB1000C | 3NB1300C | 3NB1600 | |||
| Wirth Mud Pump | TPK1000 | TPK1600 | TPK2000 | ||||
| Russian Pumps | UNBT-950 | UNB-600 | 8T-650 | UNBT650 | NBT600 | UNB1180 | UNB1180L |
| WEATHERFORD/Ellis Williams | MP-5 | MP-8 | MP-10 | MP-13 | MP-16 | E-447 | E-2200 |
| W446 | W440 | ||||||
| Drillmec | 7TS-600 | 8T-800 | 9T1000 | 10T-1300 | 12T1600 | 14T-2200 | 10D2C |
| 8D1S | |||||||
| Upetrom | 3PN-1000 | 3PN-1600 | 3PN-1300 | 3PN-2000 | |||
| OPI | 350-D | 350-GD | 500-DC | 700-HDL | 1000-HDL | ||
| Lewco/Ewco | W-250-C | WH440 | W446 | W600 | WH600 | WH770 | W1100 |
| WH1312 | W1612 | W1712 | W2000 | W2214 | W2215 | ||
| American Block | K800 | K1000 | K1300 | K1600 | K2200 | ||
| Loadmaster | LSF-500 | LSF-800 | LSF-1000 | LSF-1300 | LSF-1600 | ||
| Soilmec | 7T500 | 7T508 | 8T650 | ||||
| Dragon | 440HP | 660HP | |||||
| GASO/Wheatly | 1550 | 1560 | 1563 | 1654 | 1742 | 1753 | 1874 |
| 1849 | 1860 | 2652 | |||||
| Great American | GA-550 | GA-750 | |||||
| TFI | BH-800 | F-500 | F-800 | F-1000 | F-1300 | F-1600 | |
| TSC | WF-400 | WF-450 | WF-700 | WFU-750 | WF-1000 | WF-1300 | WF-1600 |
| WF-2000 | WF-2200 |
