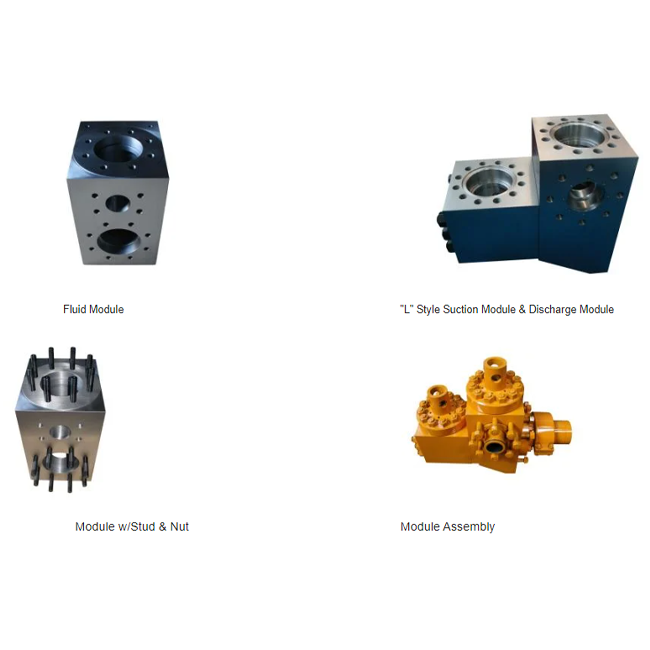

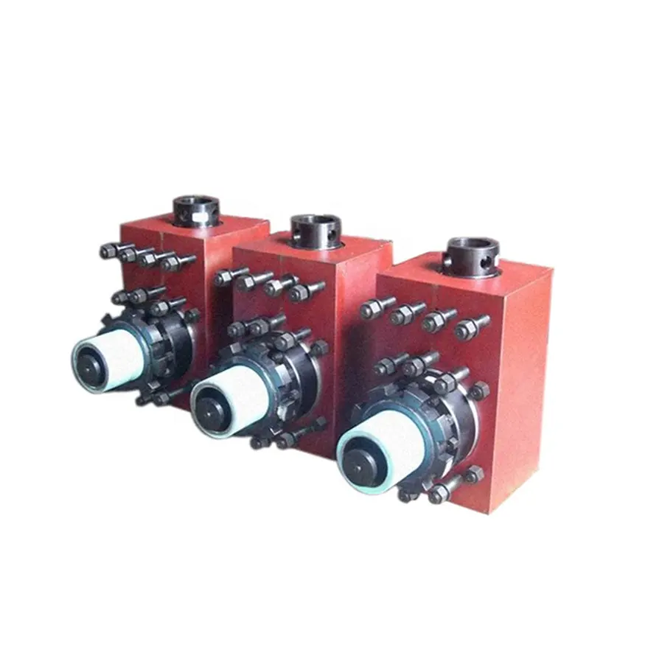

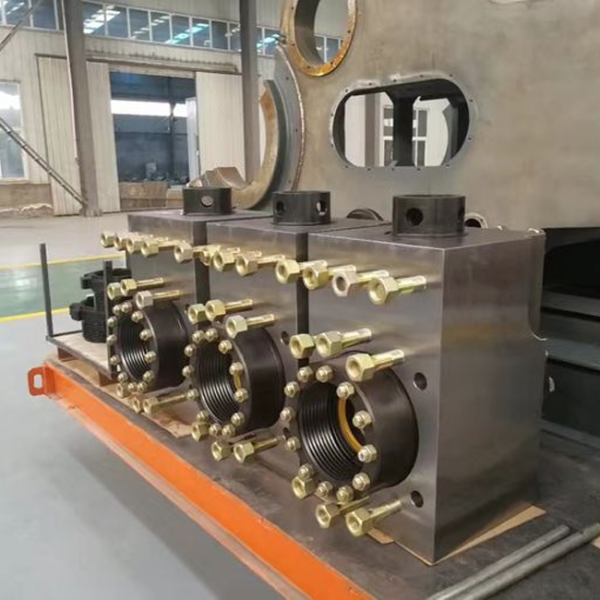

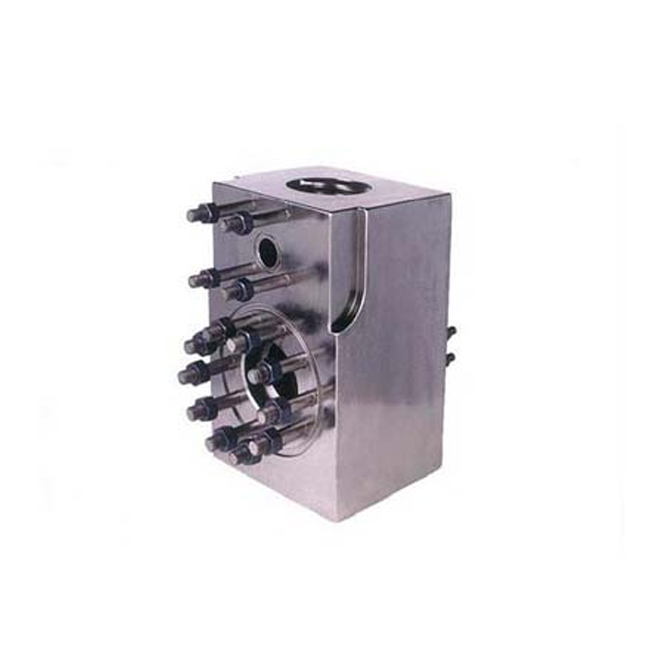

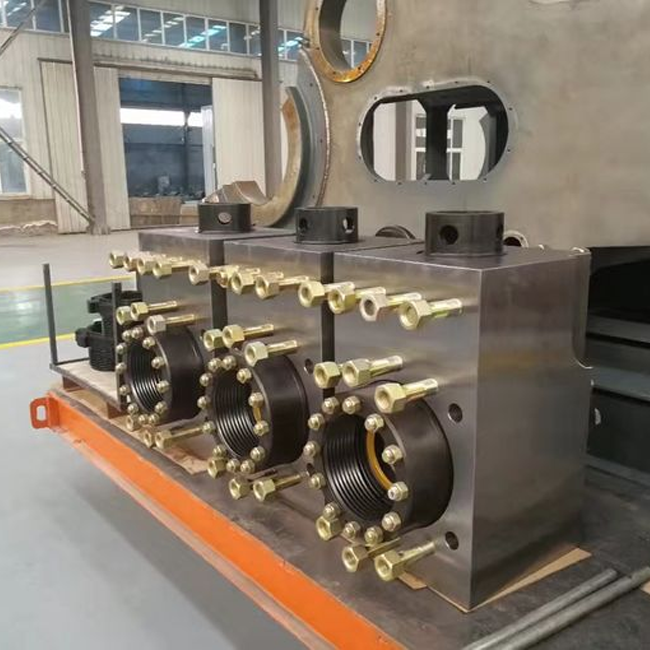

Mud pump Fluid end Module is the main parts of fluid end. Our modules is made by high quality alloy steel forging. The blank must normalizing, roughing and tempering treatment, ensure valve box internal hardness reach HB285-330. After rolling, the contact area of the two position cone holes not less than 75% in the finish machining process. After the pressure test, gauge inspection report, and can match all kinds of mud pump.
The material of the cylinder is alloy steel 35CrMo or 40CrMnMo forgings, and the three cylinders of each pump can be exchanged. The structure design of F pump through cylinder, i. e. valve top valve, reduces the volume of the cylinder and improves the volume efficiency. If users require, electroless nickel plating can be done on the surface of the cylinder to enhance its corrosion resistance. Our company can produce F series, 3NB series and other series of mud pumps of various specifications of cylinders, cylinder assembly and cylinder accessories.
Features:
– Completely interchangeable with OEM
– Premium forged alloy steel
– Made on CNC boring mills
– Strict computer controlled heat treat procedures
– Rigid inspection
– Rated for all drilling operations up to 7,500 psi
