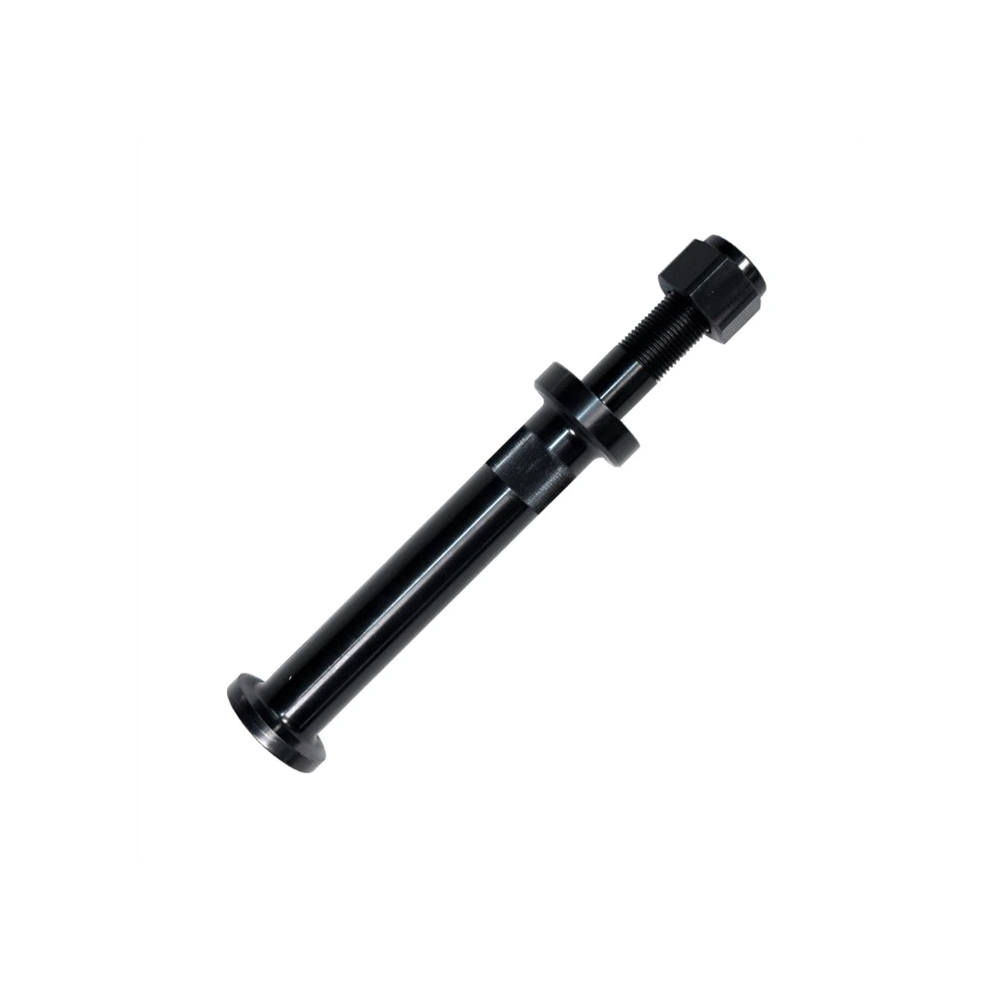

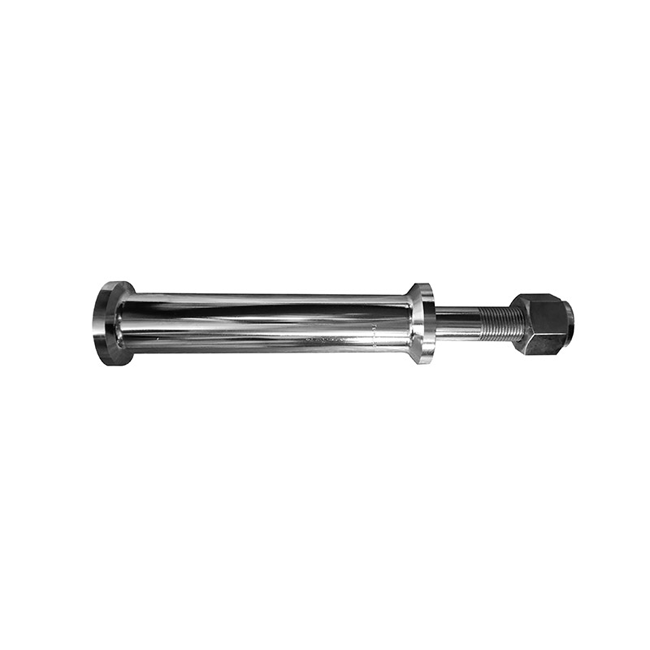

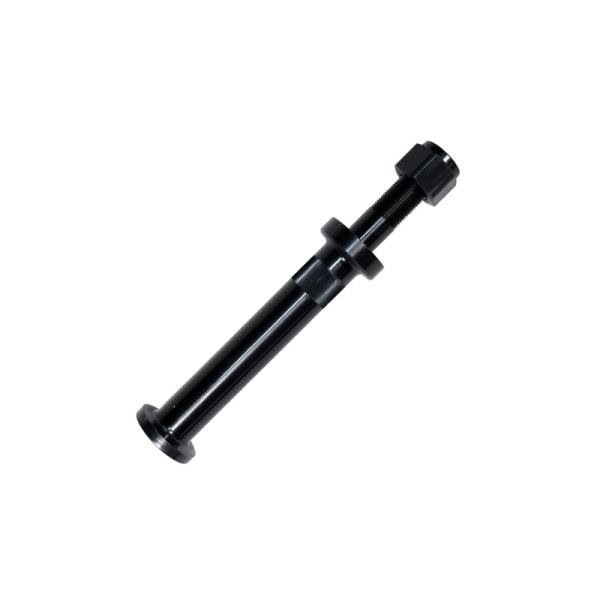

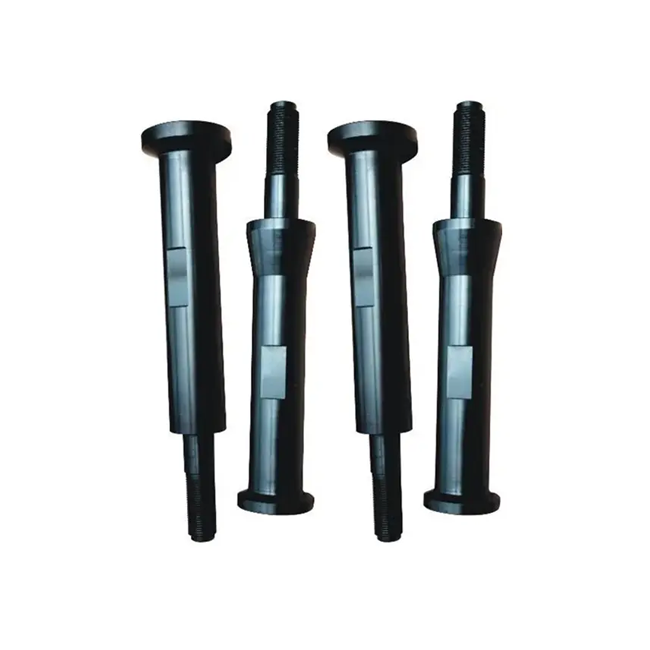

Mud Pump Piston Rod

Mud pump spare parts extension rod is a important parts transporting the power from the driving end to the hydraulic end. It is made of premium alloy steel through unique manufacturing process and advanced technology.Its mechanical property is improved after heat treatment.The surface is smooth,wear-resistant and anti-corrosive after chrome plating and accurate grinding.

Piston rod, also known as piston pull rod, is the main accessory connecting the power end and hydraulic end of drilling mud pump, and is also one of the vulnerable parts of drilling pump. The large end of the piston rod is connected with the power end of the mud pump through the clamp, and the small end is installed with the piston, which moves in a reciprocating straight line in the cylinder liner to generate pressure.

The piston rod produced by our company is forged from 35CrMo material. It has a corrosion resistant, high density and low wear surface. It reduces the deformation of sealing filler and prolongs the service life of sealing sleeve and piston top sealing ring. This piston rod is also equipped with strong and durable nuts, after CNC processing, the surface can be galvanized, nickel plated to meet customer needs, product performance is superior, affordable, timely delivery, perfect after-sales, welcome to discuss and cooperate!

Our advantages:

1. Standard design, early delivery and low price;

2. Completely assembled and tested before delivery;

3. Easy and quick installation and disassembly;

4、Arrive at the site and prepare for operation;

5. Spare parts are available from stock;

6、It can be transported by road, railway or sea;

7. Reliable hydraulic system;

Our pre-sales service:

1. Consultation and consultation support;

2. Sample testing support;

3.Visit our factory.

Specification Fig. No. φ L Thread Weight (Kg)
F500 AH35001-05.18A 66.68 457.9 M24 7
AH35003-05.06 1 1/2-8UN
F800 AH34001-05.02A 88.9 485 M39×3 9.6
AH34001-05.02 1 1/2-8UN
F1000 AH33001-05.21A 101.6 534 M39×3 13.5
AH33001-05.02 1 1/2-8UN
F1300
F1600
AH36001-05.19A 120.65 550 M39×3 14
AH36002-05.05 1 1/2-8UN 17
