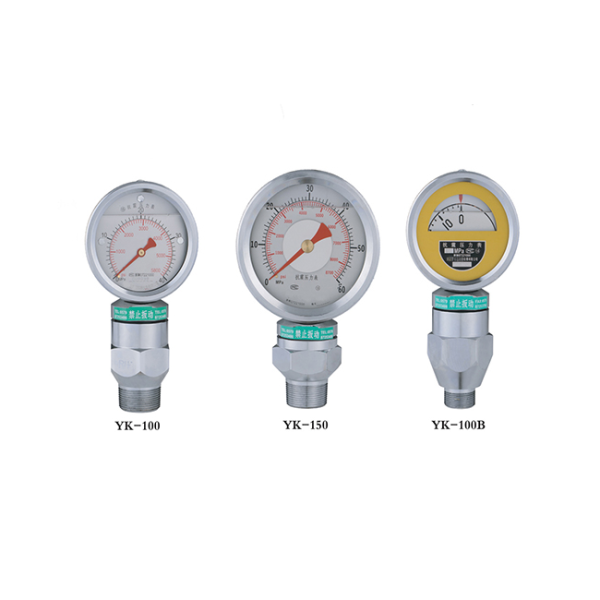

Standpipe type Mud Pump Pressure Gauge Model YK
Benefits:
This style of gauge provides accurate pressure readings and has built in dampening.
Liquid filled gauge minimizes vibration and wear to gauge movement.
Quick and accurate response to pressure changes.
Standard Capacities:
0-7MPa, 0-16MPa, 0-25MPa, 0-35MPa, 0-40MPa, 0-60MPa, 0-80MPa, 0-100MPa, 0-120MPa, 0-160MPa. Other pressure ranges are available in PSI, kg/cm2, kPa, and BAR units of measure.

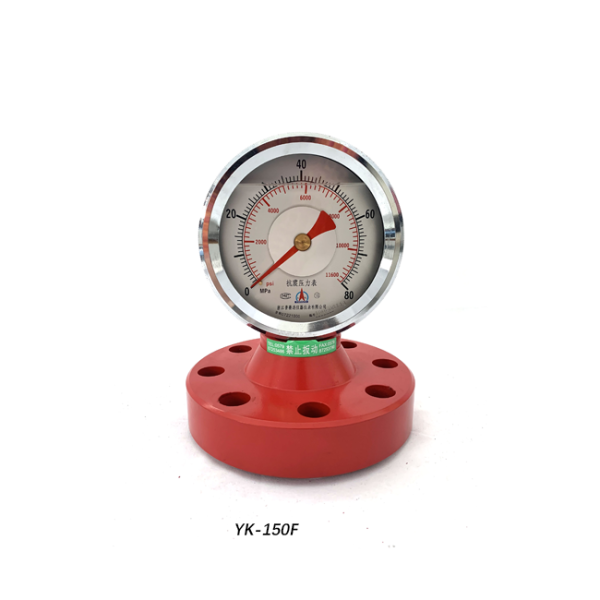

Mud Pump Pressure Gauge ,Flange type Model YK-150F
Rugged standpipe-type gauges provide dependable, accurate pressure readings
ALL-PETRO Stand Pipe Gauges provide a quick, accurate display of pump pressure. Main applications are for standpipes and to be mounted on mud pumps. This style of gauge has been in service for many years and has proven to be a tough, dependable and reliable way to monitor pump pressure.
Model YK-150F Gauge for capacities up to 20,000 PSI
Features:
7MPa,14MPa,21MPa,25MPa,35MPa,40MPa,60MPa,80MPa,100MPa,120MPa and 160MPa
1,000 PSI,1500PSI 3,000 PSI. 5,000 PSI, 6,000 PSI, 10,000 PSI,15,000 PSI and 20,000PSI
70 Bar, 140 Bar, 210 Bar, 350Bar, 420 Bar, 700Bar,1,040 Bar and 1,400 Bar
Temperature range: -50°F to 180°F
Liquid surrounding gauge mechanism minimizes wear from vibration and mechanical shock
Heavy duty seals create watertight barrier around gauge mechanism
Combination threaded male 2″ line pipe and threaded female 1″ line pipe connection
To Order A Standpipe Pressure Gauge Specify:
Pressure capacity
Metric, English or dual scale dial reading
Standard 2”NPT, Hammer Union or Flange type
Standard or H2S service

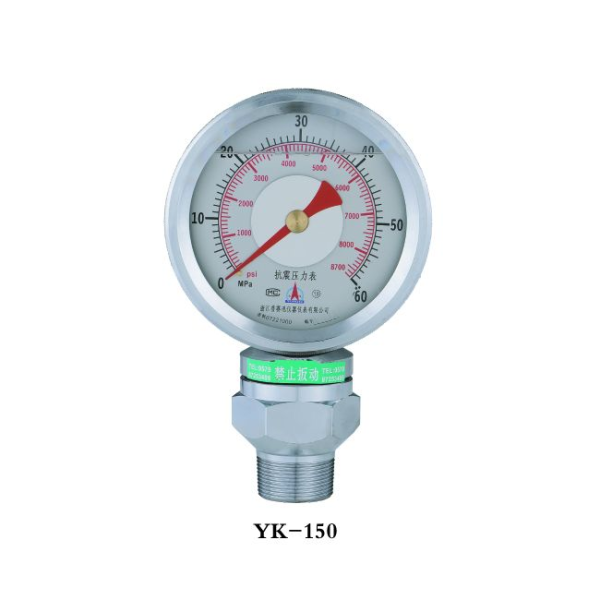

Standpipe type Mud Pump Pressure Gauge Model YK-150
Standpipe Gauges provide a quick, accurate display of pump pressure. Main applications are for standpipes and to be mounted on mud pumps. This style of gauge has been in service for many years and has proven to be a tough, dependable and reliable way to monitor pump pressure.
Model YK-150 Gauge for capacities up to 20,000 PSI
Features:
7MPa,14MPa,21MPa,25MPa,35MPa,40MPa,60MPa,80MPa,100MPa,120MPa and 160MPa
1,000 PSI,1500PSI 3,000 PSI. 5,000 PSI, 6,000 PSI, 10,000 PSI,15,000 PSI and 20,000PSI
70 Bar, 140 Bar, 210 Bar, 350Bar, 420 Bar, 700Bar,1,040 Bar and 1,400 Bar
Temperature range: -50°F to 180°F
Liquid surrounding gauge mechanism minimizes wear from vibration and mechanical shock
Heavy duty seals create watertight barrier around gauge mechanism
Combination threaded male 2″ line pipe and threaded female 1″ line pipe connection
To Order A Standpipe Pressure Gauge Specify:
Pressure capacity
Metric, English or dual scale dial reading
Standard 2”NPT, Hammer Union or Flange type
Standard or H2S service
Standpipe type Mud Pump Pressure Gauge Model YK-100
Standpipe Gauges provide a quick, accurate display of pump pressure. Main applications are for standpipes and to be mounted on mud pumps. This style of gauge has been in service for many years and has proven to be a tough, dependable and reliable way to monitor pump pressure.
Features:
7MPa,14MPa,21MPa,25MPa,35MPa,40MPa,60MPa,80MPa,100MPa,120MPa and 160MPa
1,000 PSI,1500PSI 3,000 PSI. 5,000 PSI, 6,000 PSI, 10,000 PSI,15,000 PSI and 20,000PSI
70 Bar, 140 Bar, 210 Bar, 350Bar, 420 Bar, 700Bar,1,040 Bar and 1,400 Bar
Temperature range: -50°F to 180°F
Liquid surrounding gauge mechanism minimizes wear from vibration and mechanical shock
Heavy duty seals create watertight barrier around gauge mechanism
Combination threaded male 2″ line pipe and threaded female 1″ line pipe connection
To Order A Standpipe Pressure Gauge Specify:
Pressure capacity
Metric, English or dual scale dial reading
Standard 2”NPT, Hammer Union or Flange type
Standard or H2S service
