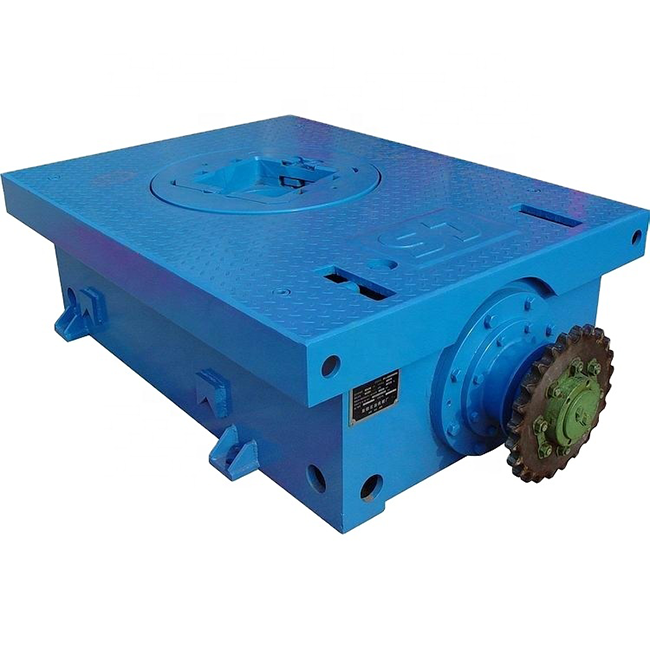

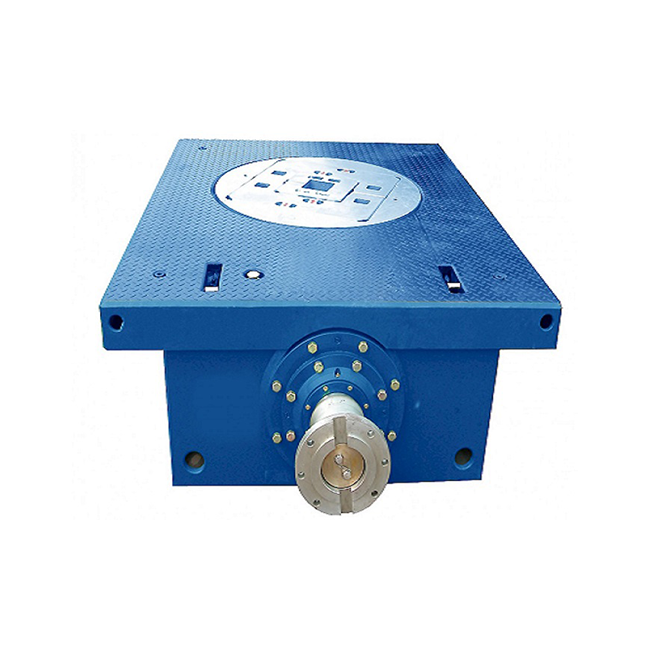

The Rotary Table is manufactured according to API 7K specification, the casing is cast steel and steel plate welding structure, the basement is steel casting, it is welded with steel plate after coarsely machining, and finish machining after internal annealing for stress elimination. The transmission gear is the mid-hard tooth face arc cusp gear, the intensity is high, the transmission is steady, the transmission torque is big.
Product Details:
1.The pinion and gear are made of alloy steel。
2.The master bushing is made from a steel casting.
3.Pin transmission type is suitable f or AIP standard square Kelly or hexagonal Kelly roller bushing.
4.Effective lubrication and reliable seals are provided by design.
5.The rotary tables conform to API specification 7K.
| Model | ZP175 | ZP205 | ZP275 | ZP375 | |
|---|---|---|---|---|---|
| Max. Static load | kN | 2250 | 3150 | 4500 | 5850 |
| US ton | 250 | 350 | 500 | 650 | |
| Diameter of opening | mm | 444.5 | 520.7 | 698.5 | 952.5 |
| in | 171/2 | 201/2 | 271/2 | 371/2 | |
| Gear ratio | 3.58 | 3.22 | 3.67 | 3.56 | |
| Table axis to center liner Row sprocket teech | mm | 1118 | 1353 | 1353 | 1353 |
| in | 44 | 531/4 | 531/4 | 531/4 | |
| O.D | mm | 1935*1280*585 | 2392*1475*668 | 2392*1670*685 | 2468*1810*718 |
| in | 76*50*23 | 90*58*26 | 94*66*27 | 97*71*28 | |
| Weight | kg | 3888 | 5530 | 6203 | 8026 |
| lb | 8572 | 12190 | 13680 | 17694 | |
