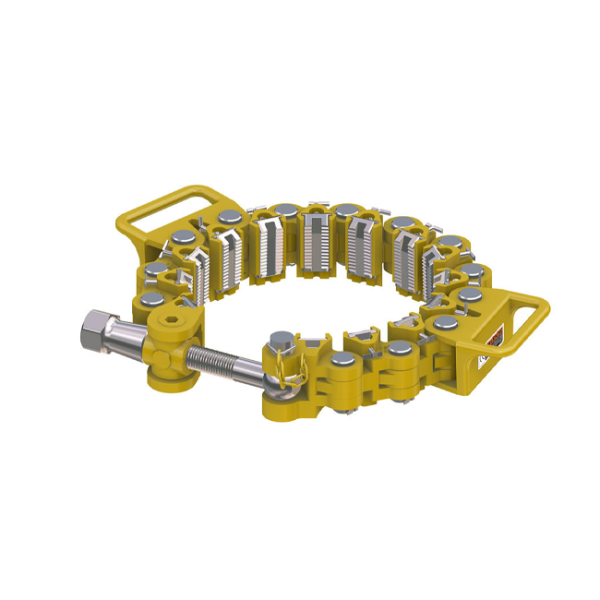

Used to secure flush tubular products during installation. Our inventory of MP series and Type “C” and “T” Safety Clamps are available from 2-3/8” to 30” OD. We can also provide Low Penetrating Dies for Chrome running and handling applications upon request.

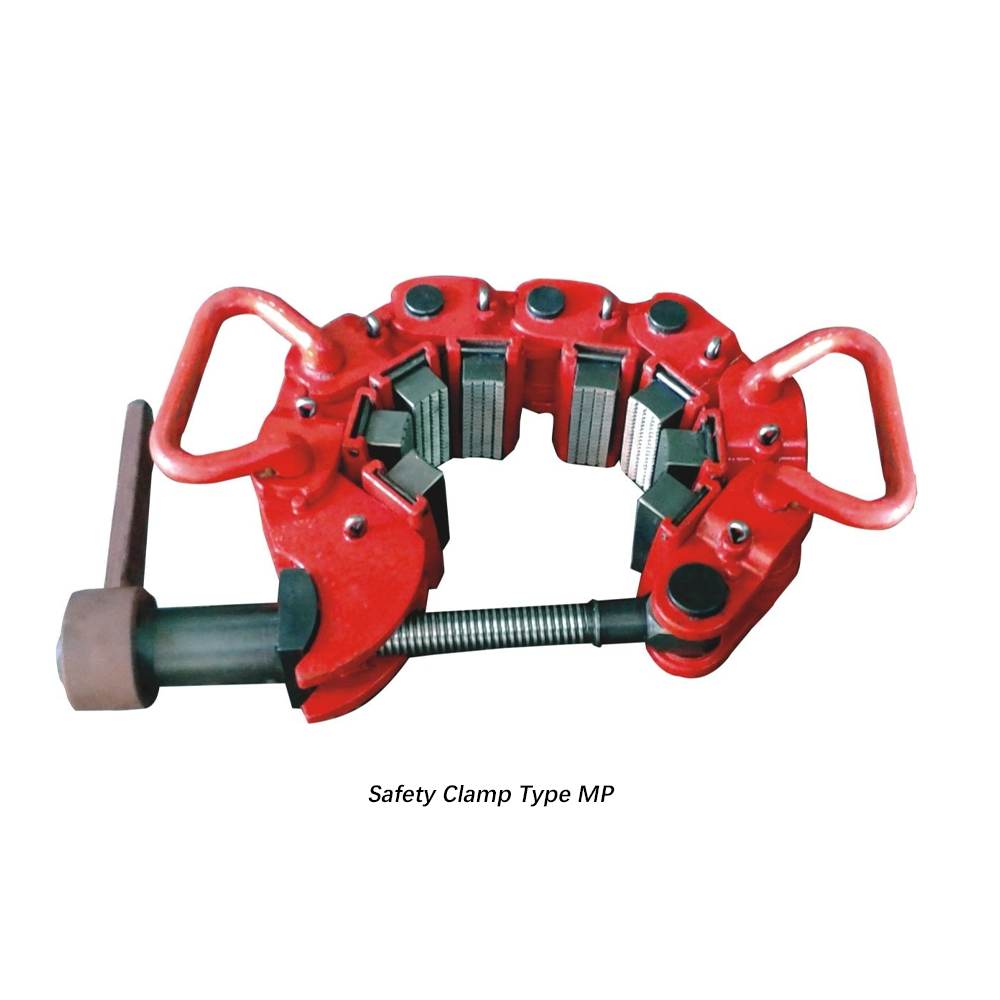

Safety Clamps Type MP are necessary tools for handling drill collars, flush joint pipes and small shoulder pipes. They could adjust pipes of different sizes by changing the quantity of chain links. They are designed and manufactured according to 7k spec for drilling and well servicing equipment.
| Type | Pipe O.D(in) | No. of Chain Links |
|---|---|---|
| MP-S | 2-7/8 ~ 4-1/8 | 7 |
| 4 ~ 5 | 8 | |
| MP-R | 4-1/2 ~ 5 5/8 | 7 |
| 5-1/2 ~ 7 | 8 | |
| 6-3/4 ~ 8-1/4 | 9 | |
| 8 ~ 9-1/4 | 10 | |
| 9-1/4 ~ 10-1/2 | 11 | |
| MP-M | 10-1/2 ~ 11-1/2 | 12 |
| 11-1/2 ~ 12-1/2 | 13 | |
| 12-1/2 ~ 13-5/8 | 14 | |
| 13-5/8 ~ 14-3/4 | 15 | |
| 14-3/4 ~ 15-7/8 | 16 | |
| MP-L | 15-7/8 ~ 17 | 17 |
| 17 ~ 18-1/2 | 18 | |
| 18-1/8 ~ 19-3/8 | 19 | |
| MP-XL | 19-3/8 ~ 20-3/8 | 19 |
| 20-3/8 ~ 21-1/2 | 20 | |
| 21 ~ 22-5/8 | 21 | |
| 22-5/8 ~ 23-3/4 | 22 | |
| 23-3/4 ~ 24-7/8 | 23 | |
| 24-7/8 ~ 26 | 24 | |
| 26 ~ 27-1/8 | 25 | |
| 29-3/8 ~ 30-1/2 | 28 | |
| 35 ~ 36 1/8 | 33 |
Safety Clamps Type C and T are necessary tools for handling flush joint pipes and drill collars. They can accommodate pipes from 1-1/8″ to 15-5/8″. They are designed and manufactured according to 7K spec for drilling and well servicing equipment.
| Model | Size Range(in) | Total Number of Links |
|---|---|---|
| WA-C | 3-3/4 ~ 4-5/8 | 7 |
| 4-1/2 ~ 5-5/8 | 8 | |
| 5-1/2 ~ 6-5/8 | 9 | |
| 6-1/2 ~ 7-5/8 | 10 | |
| 7-1/2 ~ 8-5/8 | 11 | |
| 8-1/2 ~ 9-5/8 | 12 | |
| 9-1/2 ~ 10-5/8 | 13 | |
| 10-1/2 ~ 11-5/8 | 14 | |
| 11-1/2 ~ 12-5/8 | 15 | |
| 12-1/2 ~ 13-5/8 | 16 | |
| 13-1/2 ~ 14-5/8 | 17 | |
| 14-1/2 ~ 15-5/8 | 18 | |
| WA-T | 1-1/8 ~ 2 | 4 |
| 2-1/8 ~ 3-1/4 | 5 | |
| 3-1/2 ~ 4-1/2 | 6 |
